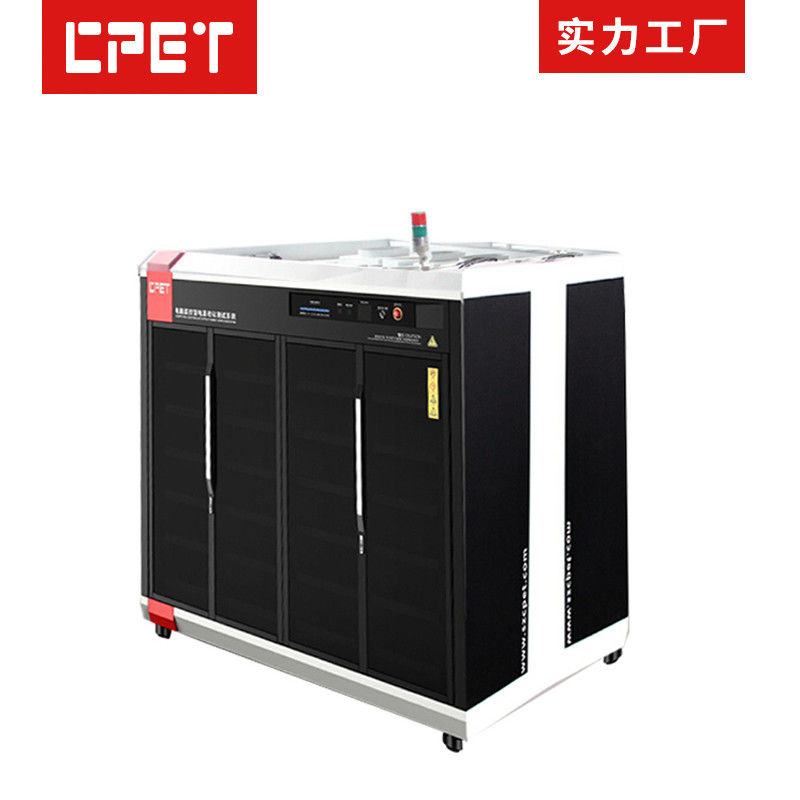

Power Bank Aging Test Equipment Charge And Discharge Mobile Power Aging Cabinet

Name: Power Bank Aging Test Equipment Charge And Discharge Mobile Power Aging Cabinet
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-3011
Price: 7800 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-3011

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 7800dollars/set

Packaging Details: Wooden case packing

Delivery Time: 30 work days

Payment Terms: D/A

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                Power Bank power aging cabinet, Mobile power aging cabinet, 65W/CH burn in testing


Power Of Single Channel:	65W/CH	Quantity Of Load Channels:	192CH
Scope Of Load Voltage:	2-100V	Scope Of Load Current:	0.05-5A/CH
Load Mode:	CC+CV Mode	External Dimension (LWH):	20508801900/custom Design

Power Of Single Channel:	65W/CH
Quantity Of Load Channels:	192CH
Scope Of Load Voltage:	2-100V
Scope Of Load Current:	0.05-5A/CH
Load Mode:	CC+CV Mode
External Dimension (LWH):	20508801900/custom Design

Product Description

Application Scope

Suitable for mobile power and powerbank.

excellent function

Power Bank Aging Test Equipment Charge And Discharge Mobile Power Aging Cabinet 1

1. Software sets load parameters, real-time monitoring of voltage, current, power and other parameters

2. It can monitor the charging status of mobile power, such as charging voltage, current and power

3. CC, CV load mode

4. Channels can be connected in parallel under CC load mode to meet product power expansion

5. Built-in over-temperature and smoke alarm automatic protection

6. Editable switching timing, load conversion function

7. Use with power burn-in monitoring software

8. A variety of DC adapter board interface can meet the needs of different output interface products

9. Multiple laminate structure options in the product area to meet different products more convenient operation

10. AC parameter measurement module, test power input characteristics (optional)

11. Automatic voltage switching (optional)

12. Product area temperature monitoring function (optional)

Performance parameters

Model	CP-3011	CP-3012	CP-3013	CP-3014
Power of single channel	65W/CH	65W/CH	65W/CH	100W/CH
Quantity of load channels	192CH	240CH	384CH	240CH
Scope of load voltage	2-100V	2-100V	2-100V	3-20V
Scope of load current	0.05-5A/CH	0.05-5A/CH	0.05-5A/CH	0.05-5A/CH
Load precision	±(1%+0.1%FS)	±(1%+0.1%FS)	±(1%+0.1%FS)	±(1%+0.1%FS)
Charge and discharge mode	NO	NO	NO	CC+CV Mode
Load Mode	CC+CV Mode	CC+CV Mode	CC+CV Mode	CC+CV Mode
Number for plies of product zone	Single side	Single side	Single side	Single side
Height for plies of product zone(mm)	170
Width of products zone(mm)	Series CC mode 340
Temperature control of products zone	Temperature control type of products zone: normal temperature-60℃
Structure material of trolley	Elaborately processed and produced with cold-rolled sheet
Mode of main control	Monitoring software for burn-in of computer-monitoring type power
Input mode of UUT	Multi-purpose socket/speaker wire clip/custom design
Interface mode of UUT	Connecting fixture boards (with various specifications) for first choice/custom design
Customizable fast charge function	QC, PO, FCP, SCP, PPS, etc.
External dimension	20508801900/custom design
