60-120CH Load Channels Aging Test Machine with 125W/CH and 150W/CH Power for Burn-In Testing

Name: 60-120CH Load Channels Aging Test Machine with 125W/CH and 150W/CH Power for Burn-In Testing
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-3019
Price: 7900 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-3019

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 7900dollars/set

Packaging Details: Wooden case packing

Delivery Time: 40 work days

Payment Terms: L/C

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                Industrial Power Supply Aging Test Machine, Motherboard Aging Test Machine, Motherboard burn in chambers


Warranty:	Free Parts Warranty For 12 Months	Quantity Of Load Channels:	60-120CH
Load Model:	Energy Consumption

Warranty:	Free Parts Warranty For 12 Months
Quantity Of Load Channels:	60-120CH
Load Model:	Energy Consumption

Product Description

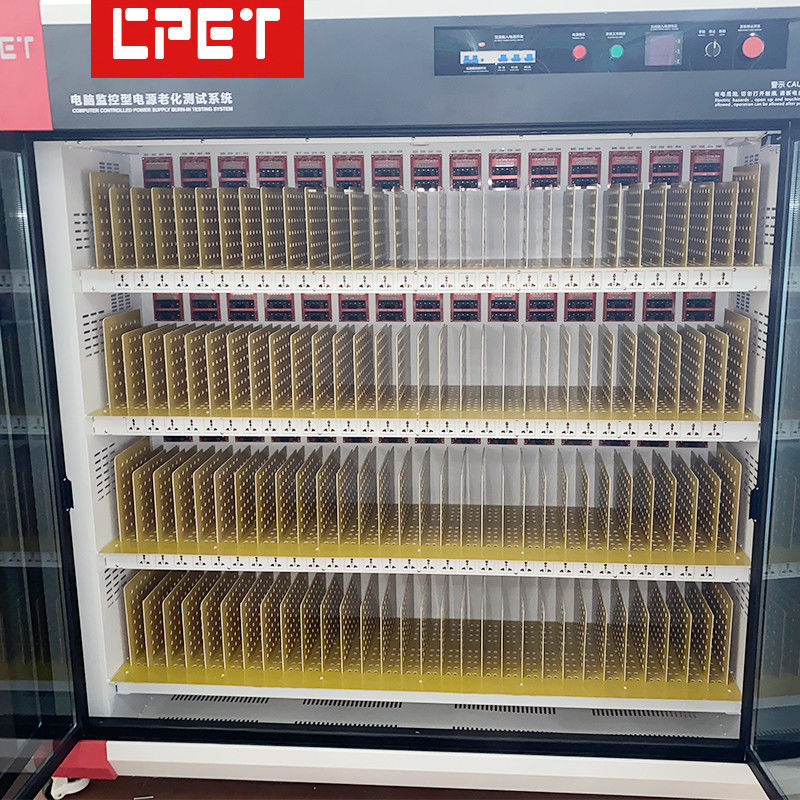

PCBA Circuit Board Aging Industrial Power Supply Motherboard Aging Test Machine

Scope of Application

Suitable for the burn-in testing of:

TV board
PCBA circuit board
Computer motherboard
Industrial control main board
Power supply board

Outstanding Functions

Set various load parameters and real-time monitor for parameters such as voltage, current and power by computer software
List load mode and dynamic load mode capabilities
Editable switch sequence and load conversion function
Cooperates with monitoring software for power burn-in applications
Five load modes: CC, CV, CR, CP and LED
Supports parallel connection of channels under any load modes for power extension
Supports power burn-in from low voltage to high voltage and from low current to large current
Built-in over-temperature and smoke-alarming automatic protection device
Multiple DC adapter plate interfaces for different output interface products
Optional multiple laminate structures to meet different product operation requirements

Performance Parameters

Model	CP-3018	CP-3019
Power of single channel	125W/CH 150W/CH 200W/CH	100W/CH
Quantity of load channels	60-120CH	60-120CH
Scope of load voltage	2-450V	2-450V
Scope of load current	0.5-10A/CH	0.5-10A/CH
Load precision	±(1%+0.1%FS)
Load Model	Energy Saving \| Energy consumption
Load Mode	CC+CV+CR+CP+LED Mode
Number for plies of product zone	4
Height for plies of product zone(mm)	260
Width of products zone(mm)	300
Temperature control of products zone	Temperature control type of products zone: normal temperature-60℃
Structure material of trolley	Elaborately processed and produced with cold-rolled sheet
Mode of main control	Monitoring software for burn-in of computer-monitoring type power
Input mode of UUT	Multi-purpose socket/speaker wire clip/custom design
Interface mode of UUT	Connecting fixture boards (with various specifications) for first choice/custom design
External dimension (LWH)	20508801900/custom design
