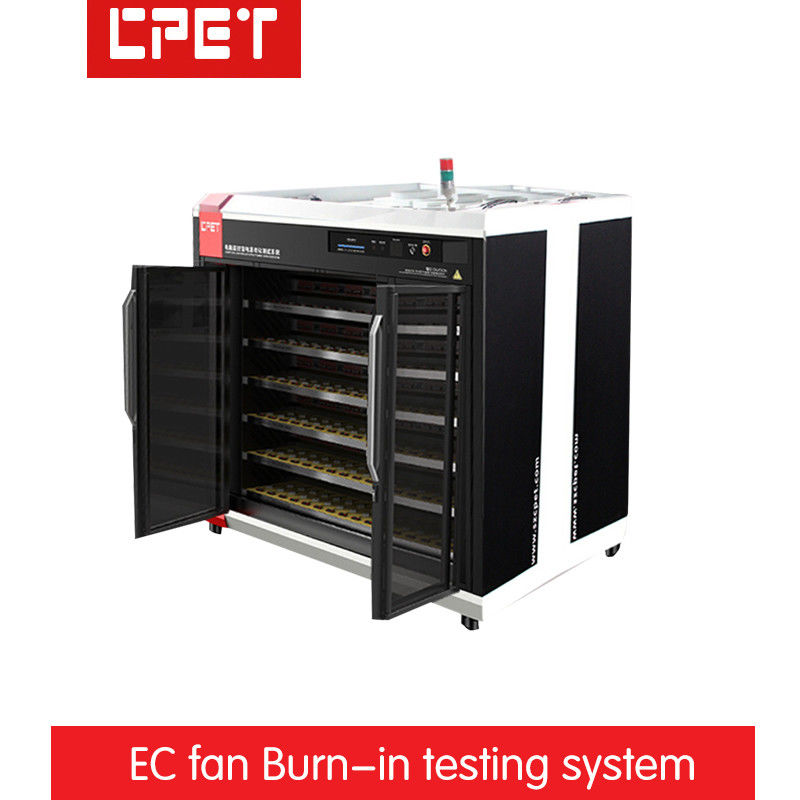

Ec Fan Drive Module Aging Cabinet Temperature Control Fan Drive Power Aging Test

Name: Ec Fan Drive Module Aging Cabinet Temperature Control Fan Drive Power Aging Test
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-CEF02
Price: 8600 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-CEF02

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 8600dollars/set

Packaging Details: Wooden case packing

Delivery Time: 30 work days

Payment Terms: L/C

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                fan drive module aging test chamber, fan drive module new energy solutions, ec fan drive module aging test chamber


Burn-in Cabinet Size(mm):	L2400W1200H1600	Rated Working Voltage:	460Vac
Rated Insulation Voltage:	690Vac

Burn-in Cabinet Size(mm):	L2400W1200H1600
Rated Working Voltage:	460Vac
Rated Insulation Voltage:	690Vac

Product Description

Charger Aging Cabinet Constant Temperature Power Adapter Aging Check Rack

Scope of application

Mainly used in burn-in test of temperature-controlled EC fan drive module

Performance parameters

Skills requirement	Burn-in cabinet size(mm)	L2400W1200H1600
	Rated working voltage	460Vac
	Rated insulation voltage	690Vac
	Rated frequency	50Hz
	Rated working current	8.3A
	Power frequency withstand voltage for 1 minute	2500Vac
	AC input specifications	460Vac/8.3A
	AC output specifications	364Vac/8.35Amax
	Temperature rise	Complies with the provisions of IEC 947-1 on temperature rise, and the tempera ture rise value does not exceed thecorresponding standard requirements of the
	Master switch	4way 100A
	Input switch	24way 16A
	Output switch	24way 16A
	IP rating	IP20
	Noise	<70dB (measured at a distance of 1m from the device)
Structural requirements	Dimension(mm)	2400(W)1200(D)1600(H)
	Burn-in slot layout requirements	The bottom of the cabinet with 3 layers and 8 Burn-in slots on each floor needs to be reserved for 40CM installation inductance
	Docking method	Connector supports 600VAC, 16A hard connection
	Cabinet door	Double door
	Maintenance method	Before and after maintenance
