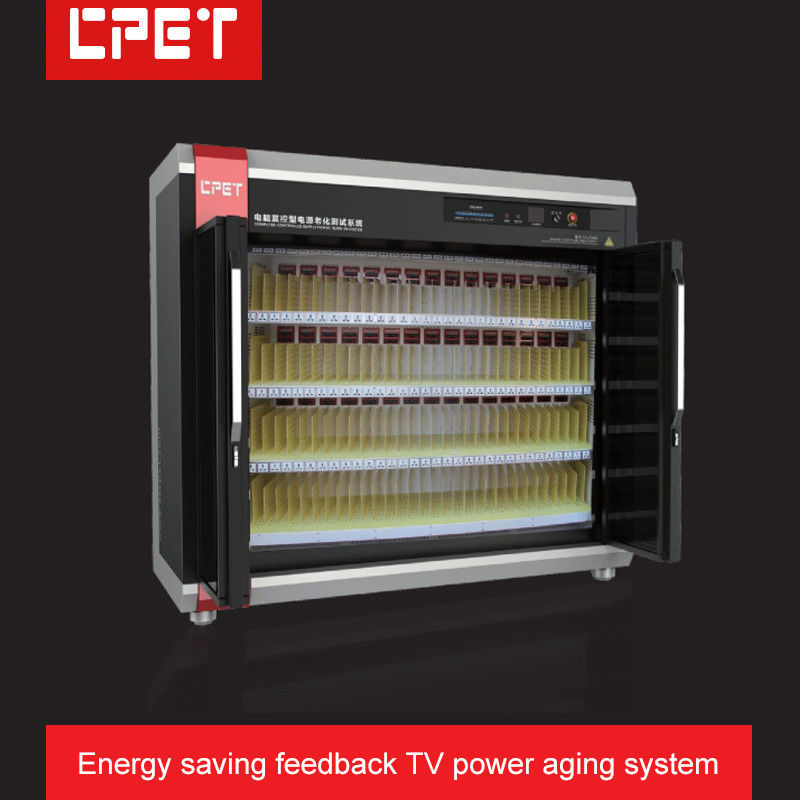

Led Lamp Power Supply Aging Test Equipment Of Home Appliance Control Board

Name: Led Lamp Power Supply Aging Test Equipment Of Home Appliance Control Board
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-301802
Price: 7800 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-301802

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 7800dollars/set

Packaging Details: Wooden case packing

Delivery Time: 30 work days

Payment Terms: L/C

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                Led Lamp Power Supply aging test machine, Control Board aging test machine, burn in test


Quantity Of Load Channels:	60-120CH	Number For Plies Of Product Zone:	4
Load Precision:	±（1%+0.1%FS）

Quantity Of Load Channels:	60-120CH
Number For Plies Of Product Zone:	4
Load Precision:	±（1%+0.1%FS）

Product Description

Burn In Test System Equipment Of Communication Power Supply Or SSN NPS Power Supply

Scope of application

Suitable for the burn-in testing of TV Board/power supply board

Outstanding functions

1. Set various load parameters and real-time monitor for parameters such as voltage, current and power by computer software

2. Be of list load mode and dynamic load mode

3. Be of editable switch sequence and load conversion function

4. Cooperate with monitoring software of power burn-in, for application

5. Be of five kinds of load modes such as CC, CV, CR, CP and LED

6. Support parallel connection of channels under any load modes and meet power extension of products

7. Support power burn-in from low voltage to high voltage and from low current to large current

8. Be of built-in over-temperature and smoke-alarming automatic protection device

9. Be of temperature monitoring function at products zone (optional)

Performance parameters

Model	CP-3018
Power of single channel	125W/CH 150W/CH 200W/CH
Quantity of load channels	60-120CH
Scope of load voltage	2-450V
Scope of load current	0.5-10A/CH
Load precision	±(1%+0.1%FS)
Load Model	Energy Saving
Load Mode	CC+CV+CR+CP+LED Mode
Number for plies of product zone	4
Height for plies of product zone(mm)	260
Width of products zone(mm)	300
Temperature control of products zone	Temperature control type of products zone: normal temperature-60℃
Structure material of trolley	Elaborately processed and produced with cold-rolled sheet
Mode of main control	Monitoring software for burn-in of computer-monitoring type power
Input mode of UUT	Multi-purpose socket/speaker wire clip/custom design
Interface mode of UUT	Connecting fixture boards (with various specifications) for first choice/custom design
External dimension (LWH)	20508801900/custom design
