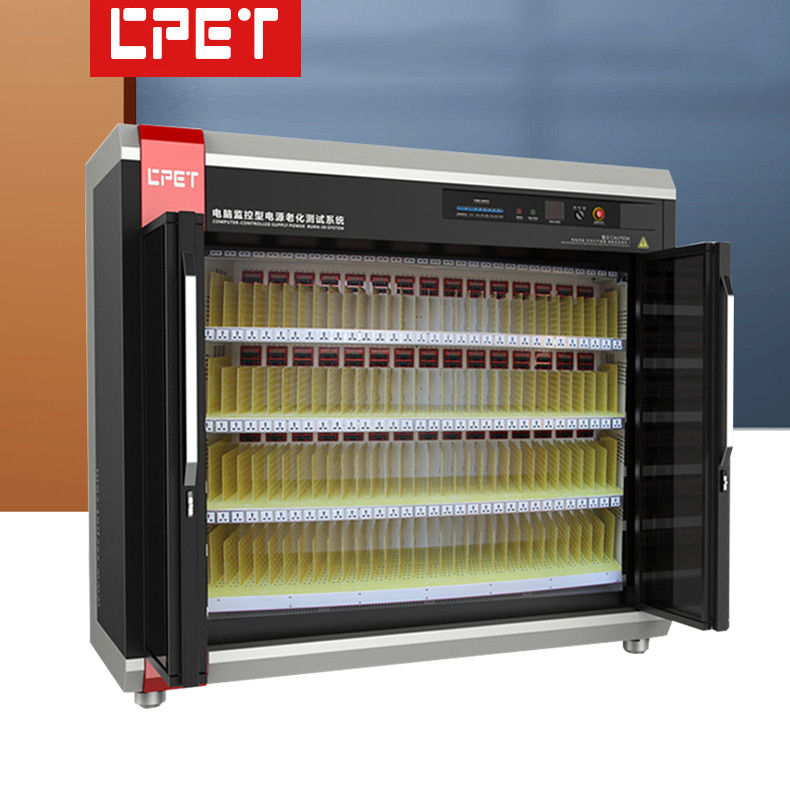

Power Bank Burning Test Custom Design TV Power Supply Burn In Test Chamber

Name: Power Bank Burning Test Custom Design TV Power Supply Burn In Test Chamber
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-301803
Price: 7900 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-301803

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 7900dollars/set

Packaging Details: Wooden case packing

Delivery Time: 30 work days

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                TV Power Supply Burn In Test Chamber, Custom Burn In Test Chamber, 450V burn in test system


Warranty:	Free Parts Warranty For 1 Year	Weight:	400kg
Number For Plies Of Product Zone:	4

Warranty:	Free Parts Warranty For 1 Year
Weight:	400kg
Number For Plies Of Product Zone:	4

Product Description

Power Bank Burning Test Custom Design TV Power Supply Burn In Test Chamber

Outstanding functions

1. Set various load parameters and real-time monitor for parameters such as voltage, current and power by computer software.

2. Be of list load mode and dynamic load mode.

3. Be of editable switch sequence and load conversion function.

4. Cooperate with monitoring software of power burn-in, for application.

5. Support parallel connection of channels under any load modes and meet power extension of products.

6. Support power burn-in from low voltage to high voltage and from low current to large current.

7. Be of built-in over-temperature and smoke-alarming automatic protection device.

8. Interface of multiple DC adapter plates can meet the demands for different output interface products.

9. Be of optional multiple laminate structures at products zone and meet the requirements for more convenient operation of

different products.

Performance parameters

Model	CP-301803
Power of single channel	125W/CH 150W/CH 200W/CH
Quantity of load channels	60-120CH
Scope of load voltage	2-450V
Scope of load current	0.5-10A/CH
Load precision	±(1%+0.1%FS)
Load Model	Energy Saving
Load Mode	CC+CV+CR+CP+LED Mode
Number for plies of product zone	4
Height for plies of product zone(mm)	260
Width of products zone(mm)	300
Temperature control of products zone	Temperature control type of products zone: normal temperature-60℃
Structure material of trolley	Elaborately processed and produced with cold-rolled sheet
Mode of main control	Monitoring software for burn-in of computer-monitoring type power
Input mode of UUT	Multi-purpose socket/speaker wire clip/custom design
Interface mode of UUT	Connecting fixture boards (with various specifications) for first choice/custom design
External dimension (LWH)	20508801900/custom design
