Home > products > LED Driver Burn In Chamber > Constant Temperature And Humidity Power Burn In Test System For Led Driver

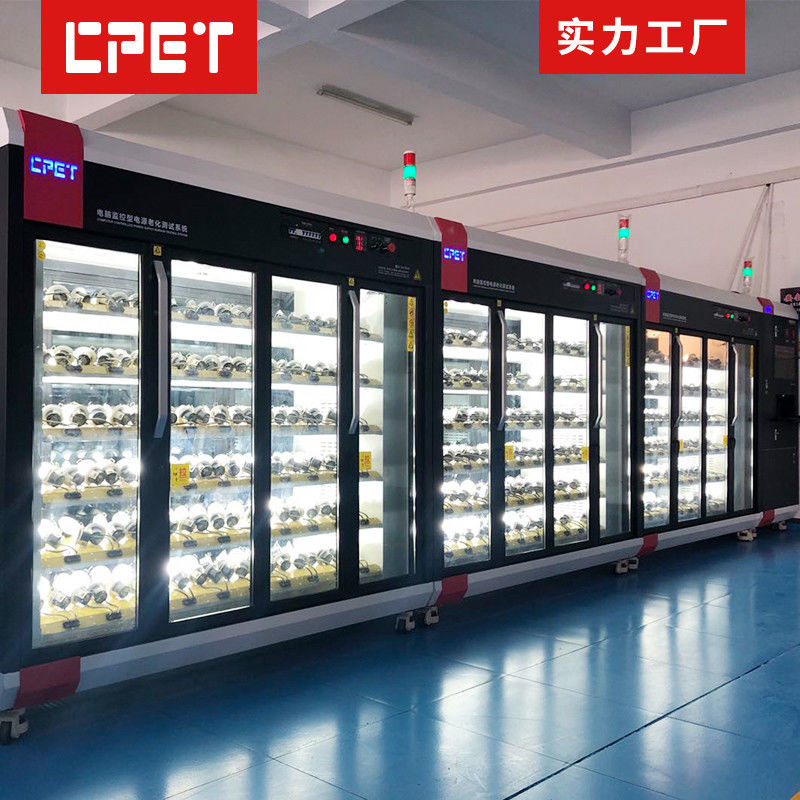

Constant Temperature And Humidity Power Burn In Test System For Led Driver

Name: Constant Temperature And Humidity Power Burn In Test System For Led Driver
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-300102
Price: 8500 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-300102

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 8500dollars/set

Packaging Details: Wooden case packing

Delivery Time: 35 work days

Payment Terms: L/C

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                Constant Temperature burn in test system, Led Driver burn in test system, Constant Humidity burn in testing


Power Of Single Channel:	96W/CH	Warranty Period:	1 Year Free Warranty
Weight:	400kg

Power Of Single Channel:	96W/CH
Warranty Period:	1 Year Free Warranty
Weight:	400kg

Product Description

Constant Temperature And Humidity Power Burn-In Test System For Led Driver

Outstanding functions

1. Set various load parameters and real-time monitor for parameters such as voltage, current and power by computer software

2. Support parallel connection of channels under any load modes and meet power extension of products

3. Support power cc from low voltage to high voltage and from low current to large current

4. Be of built-in over-temperature and smoke-alarming automatic protection device

5. The model of E-load model can be selected

6. Energy saving conversion efficiency over 85%

Performance parameters

Model	CP-300302	CP-300402	CP-300102
Power of single channel	400W/CH	100W/CH	96W/CH
Quantity of load channels	240CH	192CH	96CH
Scope of load voltage	2-450V	2-450V	8-420V
Scope of load current	0.05-10A/CH	0.05-5A/CH	0.05-12A/CH
Load precision	±(1%+0.1%FS)	±(1%+0.1%FS)	±(1%+0.1%FS)
Load Model	Electronic load type	Electronic load type	Energy Saving
Load Mode	CC+CV Mode	CC+CV Mode	CC+CV+CR+CP+LED Mode
Number for plies of product zone	6
Height for plies of product zone(mm)	170
Width of products zone(mm)	Series CC mode 380
Temperature control of products zone	Temperature control type of products zone: normal temperature-60℃
Structure material of trolley	Elaborately processed and produced with cold-rolled sheet
Mode of main control	Monitoring software for burn-in of computer-monitoring type power
Input mode of UUT	Multi-purpose socket/speaker wire clip/custom design
Interface mode of UUT	Connecting fixture boards (with various specifications) for first choice/custom design
External dimension	205012001900/custom design
