products

Home > products > Power Bank Aging Test Equipment > Smart Watch Wireless Charger Mobile Power Phone Aging Test Stand Customized

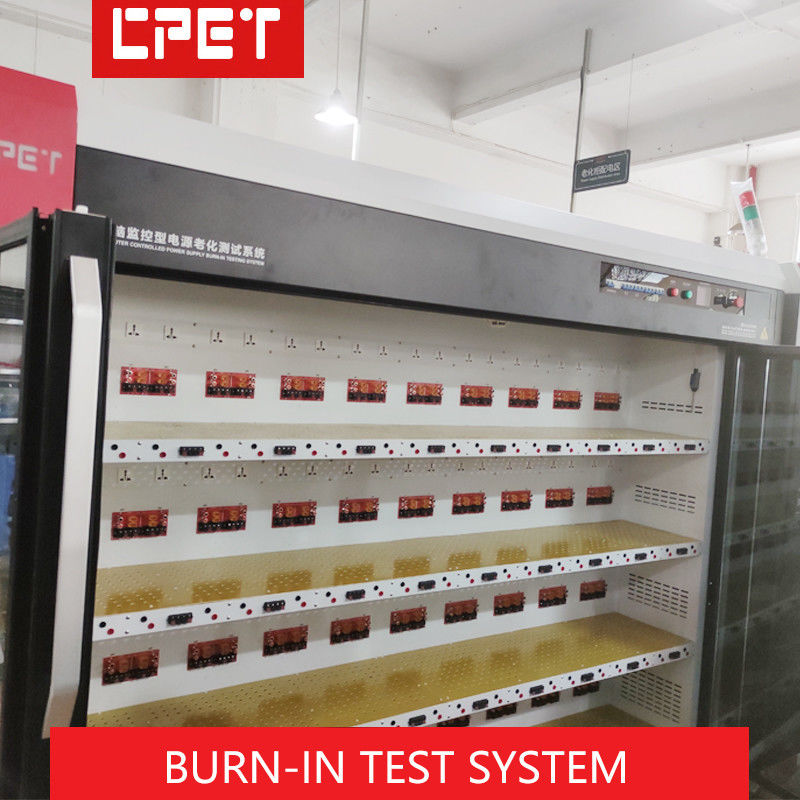

Smart Watch Wireless Charger Mobile Power Phone Aging Test Stand Customized

Name: Smart Watch Wireless Charger Mobile Power Phone Aging Test Stand Customized
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-301402
Price: 7950 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-301402

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 7950dollars/set

Packaging Details: Wooden case packing

Delivery Time: 35 work days

Payment Terms: L/C

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                Wireless Charger aging test chamber, Mobile Power Phone aging test chamber, 20V burn in chamber


Weight:	400kg	Guarantee Period:	Free Warranty Within One Year
Scope Of Load Voltage:	3-20V

Weight:	400kg
Guarantee Period:	Free Warranty Within One Year
Scope Of Load Voltage:	3-20V

Product Description

Smart Watch Wireless Charger Mobile Power Phone Aging Test Stand Customized

Outstanding functions

1. Software sets load parameters, real-time monitoring of voltage, current, power and other parameters

2. It can monitor the charging status of mobile power, such as charging voltage, current and power

3. CC, CV load mode

4. Channels can be connected in parallel under CC load mode to meet product power expansion

5. Multiple laminate structure options in the product area to meet different products more convenient operation

6. AC parameter measurement module, test power input characteristics (optional)

7. Automatic voltage switching (optional)

8. Product area temperature monitoring function (optional)

Performance parameters

Model	CP-301102	CP-301402
Power of single channel	65W/CH	100W/CH
Quantity of load channels	192CH	240CH
Scope of load voltage	2-100V	3-20V
Scope of load current	0.05-5A/CH	0.05-5A/CH
Load precision	±(1%+0.1%FS)	±(1%+0.1%FS)
Charge and discharge mode	NO	CC+CV Mode
Load Mode	CC+CV Mode	CC+CV Mode
Number for plies of product zone	Single side	Single side
Height for plies of product zone(mm)	170
Width of products zone(mm)	Series CC mode 340
Temperature control of products zone	Temperature control type of products zone: normal temperature-60℃
Structure material of trolley	Elaborately processed and produced with cold-rolled sheet
Mode of main control	Monitoring software for burn-in of computer-monitoring type power
Input mode of UUT	Multi-purpose socket/speaker wire clip/custom design
Interface mode of UUT	Connecting fixture boards (with various specifications) for first choice/custom design
Customizable fast charge function	QC, PO, FCP, SCP, PPS, etc.
External dimension	20508801900/custom design
