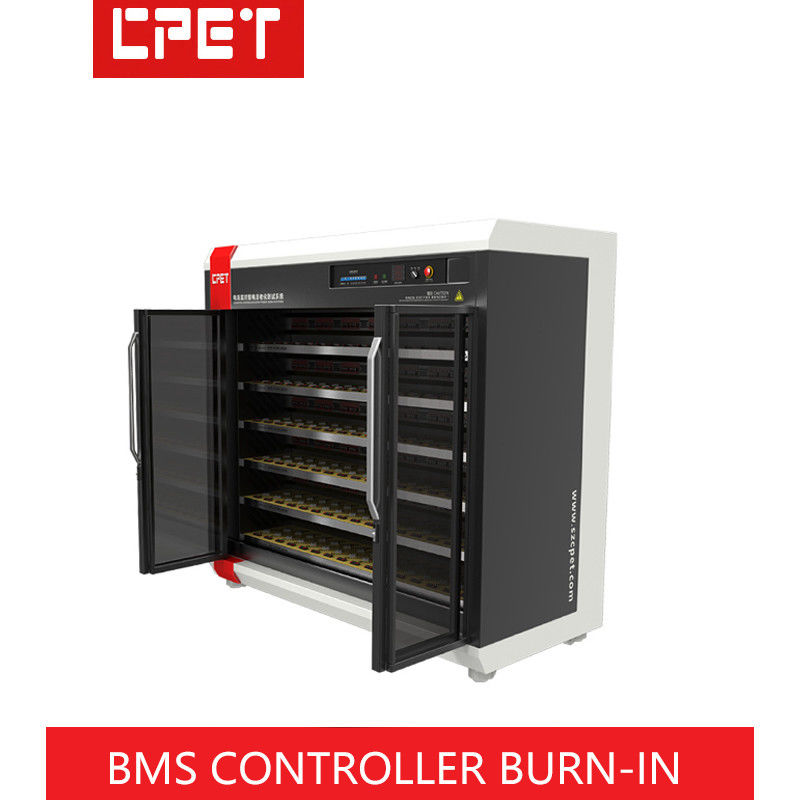

Energy Saving Feedback Burn In Cabinet Of BMS Controller Integration Mode

Name: Energy Saving Feedback Burn In Cabinet Of BMS Controller Integration Mode
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-KZQ02
Price: 8600 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-KZQ02

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 8600dollars/set

Packaging Details: Wooden case packing

Delivery Time: 30 work days

Payment Terms: L/C

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                energy saving feedback burn in cabinet, bms burn in cabinet, bms burn in test cabinet


Trolley Size (mm):	L205W125H205cm	Trolley Height:	175mm
Trolley Structure Material:	Cold Rolled Sheet

Trolley Size (mm):	L205W125H205cm
Trolley Height:	175mm
Trolley Structure Material:	Cold Rolled Sheet

Product Description

Energy Saving Feedback Burn-In Cabinet Of BMS Controller Integration Mode

Outstanding functions

1. The software sets load parameters and monitors the voltage, current, and power parameters in real time

2. CC, CV, CR, CP load modes

3. Parallel channels can be used in CC load mode to meet product power expansion

4. Automatic voltage switching function

5. Temperature monitoring function in product area

Performance parameters

Burn-in cabinet structure and Burn-in quantity planning	Trolley size (mm)	L2050W1250H2050mm (size of a single Burn-in cabinet)
	Number of trolley layers	6 layers, product area depth 400mm, (8 Burn-in positions per layer)
	Trolley height	175mm
	Trolley structure material	cold rolled sheet
	Load area cooling method	Top turbine exhaust fan top row type (easy to control the ambient temperature)
	Layer insulation and anti-static method	Epoxy insulation board with heat dissipation holes on the surface
	Overall burn-in room structure	Adopt mobile Burn-in split cabinet; beautiful appearance and easy to move and combine
Introduction to energy recovery module configuration, power of the tested power supply and Burn-in quant	Energy recovery module control method	RS485 communication mode, upper computer uses RS232 communication mode
	Install the skill module model	CP8601, 8PCS in a single cabinet
	Dc power supply capability	10-100Vdc/1-30A/3kW (adjustable voltage and current)
	Energy recovery module isolation mode	Electronic load module channel adopts photoelectric isolation (communication and power supply isolation)
	Energy recovery module carrying capacity	Load capacity: 2.5-60Vdc/0.5-240A/3.2kW (voltage, current adjustable)
	Number of installed DC source modules	Each burn-n cabinet is configured with 24 DC power modules
	rgy recovery module design architecture	No relay, long life design scheme (independent intellectual property rights)
	Number of burn-in products in the entire cabinet	48 BMS controllers less than 3.2KW are aged in one cabinet
electric control and temperature control device for power Burn-in cabinet	Wiring	Customer specified interface; input port is pin socket
	Panel function keys	Input AC voltage display, start switch, emergency stop switch
	Trolley power distribution and control mode	380V three-phase five-wire distribution; Computer monitoring and automatic electric control
	Trolley power distribution	A single burn-in cabinet is 3000W*8/0.85≈23KW, and the measured power efficiency is calculated as 85%
	Way to control	The electric control includes manual/automatic switching, which is monitored by the computer in real time when burn-in. The electric control cabinet can extend the automatic switching function of AC voltage
	Safety protection	Equipment grounding protection, leakage switch protection, smoke alarm automatic power-off protection etc
