Energy Saving Feedback Burn In Cabinet Inverter DC To AC Converter Reflux

Name: Energy Saving Feedback Burn In Cabinet Inverter DC To AC Converter Reflux
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-NBQ835
Price: 8780 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-NBQ835

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 8780dollars/set

Packaging Details: Wooden case packing

Delivery Time: 35 work days

Payment Terms: L/C

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                Energy Saving Feedback aging test chamber, Converter Reflux aging test chamber, test aging cabinet


Trolley Height:	Cold-rolled Sheet	Warranty:	220mm
Trolley Size (mm):	L2050W1085H2050mm

Trolley Height:	Cold-rolled Sheet
Warranty:	220mm
Trolley Size (mm):	L2050W1085H2050mm

Product Description

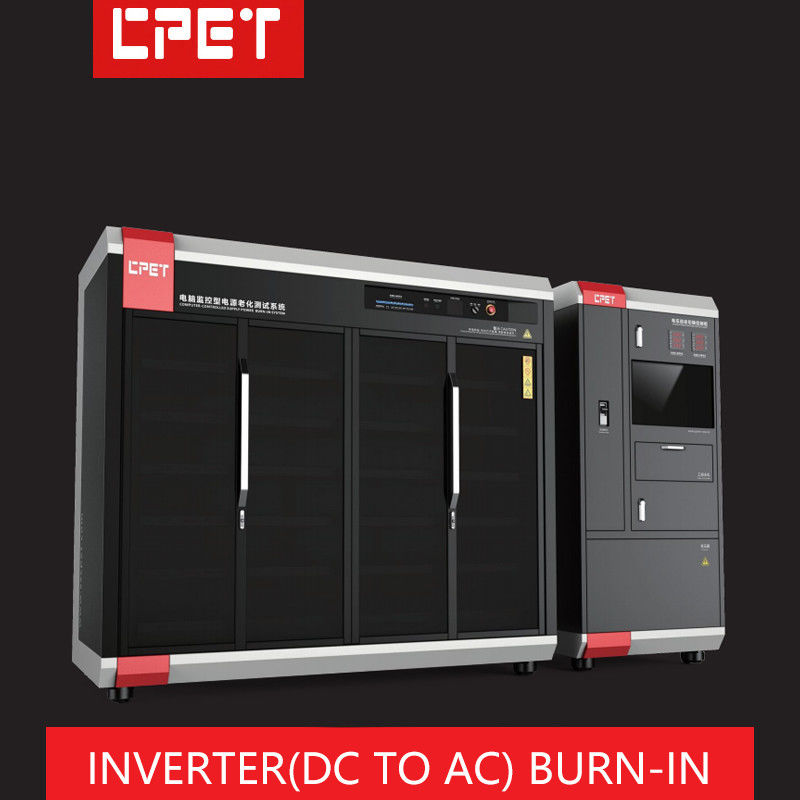

Energy Saving Feedback Burn-In Cabinet Inverter (DC To AC) Converter Reflux

Outstanding functions

1. The software sets load parameters and monitors the voltage, current, and power parameters in real time

2. CP load mode

3. Energy saving and conversion efficiency is above 85%

4. Use it with the power burn-in monitoring software

5. Multiple DC conversion board interfaces meet different output interface requirements

Performance parameters

Burn-in cabinet structure and Burn-in quantity planning	Trolley size (mm)	L2050W1085H2050mm (size of a single Burn-in cabinet)
	Number of trolley layers	5layers, product area depth 400mm, (8 Burn-in positions per layer)
	Trolley height	220mm
	Trolley structure material	cold rolled sheet
	Load area cooling method	Top turbine exhaust fan top row type (easy to control the ambient temperature)
	Layer insulation and anti-static method	Epoxy insulation board with heat dissipation holes on the surface
	Overall burn-in room structure	Adopt mobile Burn-in split cabinet; beautiful appearance and easy to move and combine
Introduction to energy recovery module configuration, power of the tested power supply and Burn-in quant	Energy recovery module control method	RS485 communication mode, upper computer uses RS232 communication mode
	Install the energy recovery module model	CP8401(See specification for details)
	Number of energy recovery modules installed	There are 8 4CH modules on each floor, and 40 modules need to be installed in the whole burn-in cabinet
	Energy recovery module design architecture	No relay, long life design scheme (independent intellectual property rights)
	Energy recovery module isolation mode	Electronic load module channel adopts photoelectric isolation (communication and power supply isolation)
	Energy recovery module design architecture	No relay, long life design scheme (independent intellectual property rights)
	Number of burn-in products in the entire cabinet	Burn-in of one cabinet There are 40 inverters with 40 DC inputs (10 to 60V/25A) and AC outputs (85 to 260V/30A/2.4W)
