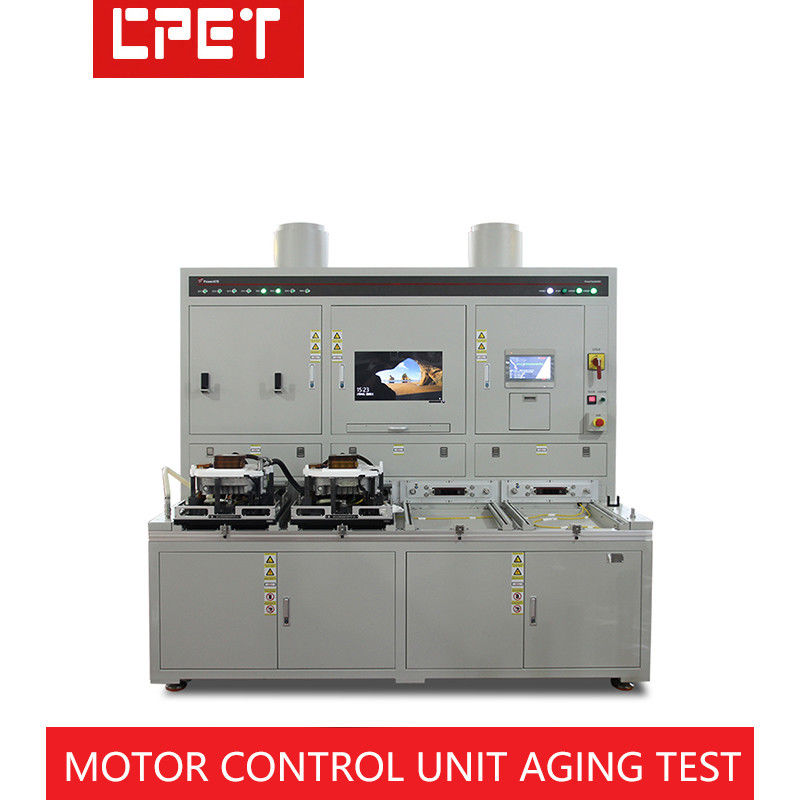

Automotive Electronics Motor Control Unit Motor Controller Burn In Test Equipment

Name: Automotive Electronics Motor Control Unit Motor Controller Burn In Test Equipment
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-MCU05
Price: 18000 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-MCU05

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: 18000dollars/set

Packaging Details: Wooden case packing

Delivery Time: 40 work days

Payment Terms: L/C

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                motor controller burn in test equipment, motor controller burn in equipment, motor control unit burn in equipment


Cooling Method:	Air Cooling	Water Temperature:	8
Warranty Period:	12 Months

Cooling Method:	Air Cooling
Water Temperature:	8
Warranty Period:	12 Months

Product Description

Automotive Electronics Motor Control Unit Motor Controller Burn-In Test Equipment

Performance parameters

System	System structure	1 control cabinet + 2 aging cabinets + 1 water temperature cabinet
	Overall size	690016002050mm
	Total floor area	6900*2500mm(Including operation area)
	Total input voltage	Three-phase five-wire system 220Vac (rated)
	Total input current	250A
	Total input power	150kW
	Application ambient temperature	0-40℃
	Application environment humidity	0-95%
	Fire protection requirements	Materials meet UL 94V0 rating
	Environmental requirements	Materials comply with Rohs, WEEE requirements
	Safety requirements	Comply with IEC62368 international standard design requirements
Burn-in cabinet	Burn-in bits/cabinet	16 bits/cabinet
	Burn-in bits/layer	4 bits/layer
	Burn-in product power	20kW/bit
	Burn-in product input voltage	150-1000Vdc
	Burn-in product input current	50A/bit
	Burn-in Product Load Category	Inductive/Motor/AC Feedback Load
	Burn-in product load current	350A (inductor/motor)/40A (AC feedback load)
	Auxiliary voltage of Burn-in products	8-30Vdc
	Auxiliary current of Burn-in products	10A
	Power Connector Type	SB50 (HV+/HV-)
	Load Connector Type	SB350 (U/V/W/PE)
	Signal Connector Type	24Pin 5566
	Input power	320kW
	Feedback power	256kW
	Constant temperature range	Room temperature+5°C-60°C
	Constant temperature accuracy	±5°C
	Number of temperature control points	5
	Open type	Sliding door/folding door/side door
	Volume size	210016002050mm
	Dimensions in the product area	17005501500mm
	Product area layers	4
	Bit space size	425550350mm
	Minimum floor height	300mm
	Top floor height	1450mm
	Product area air duct direction	Left and right ventilation
	Cooling method	Air cooling
	Material	1.5mm cold rolled sheet
Water temperature cabinet	Water temperature range	Room temperature+5°C-60°C
	Water temperature accuracy	±5°C
	Water temperature	8
	Number of serial products/way	4/way
	Dissipated power/circuit	4kW/way
	Cooling method	Chilled water or air cooling
	Water pressure range	0.05-0.2MPa
	Flow range	3-15L/min
	Channel diameter	3/4 inch
	Volume size	88010001900mm
Monitoring software	Display running information	Input voltage, current, power, output voltage (DC source module communication or product communication)
	Show status information	Not Connected / Vacant / Passed / Under Voltage / Under Current / Over Voltage / Over Current / No Output / Protection
	Display accuracy	±(1%+0.2%FS)
	Control precision	±(1%+0.2%FS)
	Bad way of reporting	Audible alarm
	Report format	CSV format
	Statistics	Yield/CPK/Time Distribution
	MES docking	Support
	Scan speed	5S
Control cabinet	Control system	Window 10
	Display medium	Computers and Monitors
	Manipulating medium	Mouse and keyboard
	Communication method	Cable
	Type of protection	Over current, leakage, over temperature, smoke, emergency stop
	Alarm method	Sound and light alarm, remote network
	Heat dissipation type	Air cooling
	Maintenance mode	Post maintenance
	Material	1.5mm cold rolled sheet
	Volume size	8808601900mm
