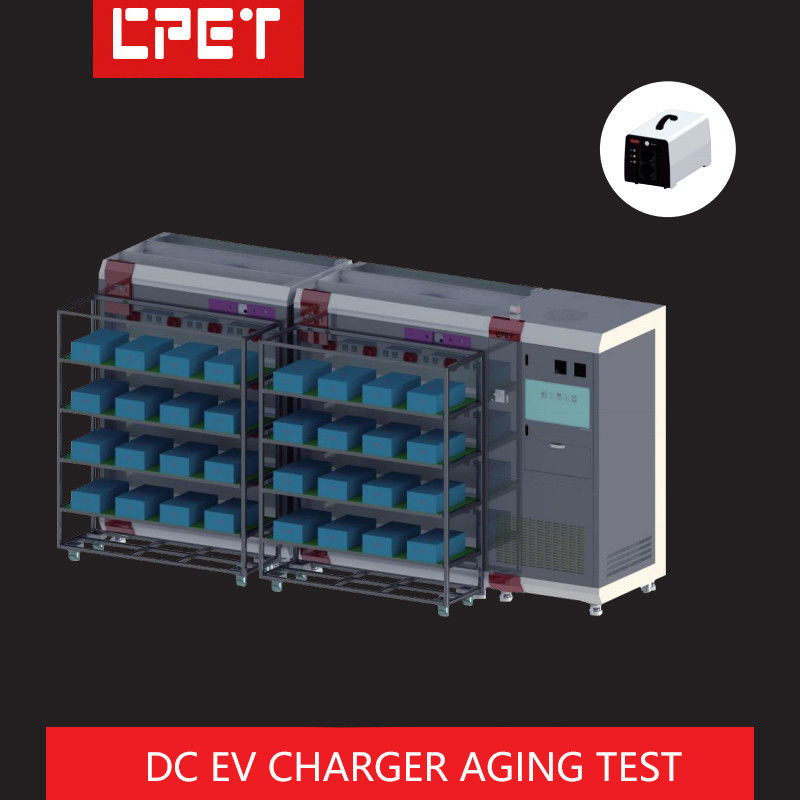

Burn In Chamber For New Energy Automobile Portable Direct Charging Station

Name: Burn In Chamber For New Energy Automobile Portable Direct Charging Station
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-DC20
Price: 9200 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-DC20

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 9200dollars/set

Packaging Details: Wooden case packing

Delivery Time: 40 work days

Payment Terms: L/C

Supply Ability: 25sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                Automobile Charging Station Burn In Chamber, Portable Charging Station Burn In Chamber, Three phase aging test chamber


Warranty:	1year Months Free Warranty	Input Power:	288kW
Feedback Power:	240kW

Warranty:	1year Months Free Warranty
Input Power:	288kW
Feedback Power:	240kW

Product Description

Burn In Chamber For New Energy Automobile Portable Direct Charging Station

Architecture diagram

Performance parameters

System	System structure	1 control cabinet + 2 burn-in cabinets + 4 trolleys
	Overall size	380018001900mm
	Total floor area	3800*2500mm(Including operation area)
	Total input voltage	Three-phase five-wire system 220Vac (rated)
	Total input current	200A
	Total input power	100kW
	Application ambient temperature	0-40℃
	Application environment humidity	0-95%
	Fire protection requirements	Materials meet UL 94V0 rating
	Environmental requirements	Materials comply with Rohs, WEEE requirements
	Safety requirements	Comply with IEC62368 international standard design requirements
Burn-in cabinet	Burn-in bits/cabinet	16 bits/cabinet
	Burn-in product power	18kw/bits
	Burn-in product input voltage	220Vac (single phase)/380Vac (three phase)
	Burn-in product input current	32A/bit
	Burn-in Product Load Category	15kW/bit
	Burn-in product load current	100-800Vdc
	Auxiliary voltage of Burn-in products	50A/bit
	Auxiliary current of Burn-in products	Universal plug (L1/ L2/ L3/N/PE)
	Power Connector Type	Gb DC charging interface
	Signal Connector Type	RJ45
	Input power	288kW
	Feedback power	240kW
	Constant temperature range	Room temperature
	Number of temperature control points	5
	Volume size	20506001900mm
	Dimensions in the product area	1800*1600mm
	Product area layers	4th floor
	Bit space size	450*420mm
	Minimum floor height	250mm
	Top floor height	1350mm
	Cooling method	Air cooling
	Material	1.5mm cold rolled sheet
