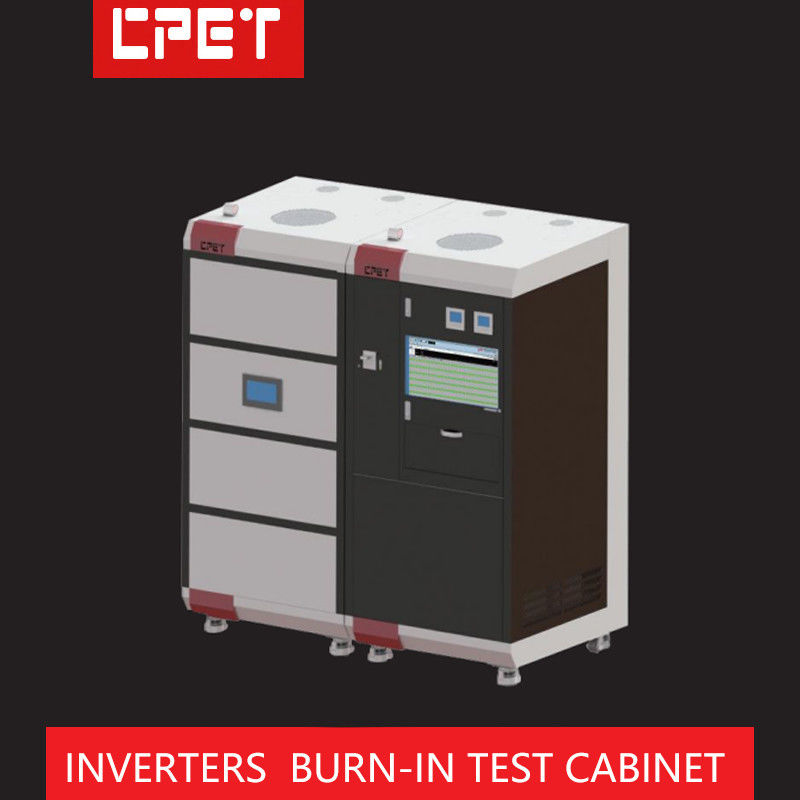

Large Scale String Photovoltaic Inverters Burn In Test Cabinet Customized

Name: Large Scale String Photovoltaic Inverters Burn In Test Cabinet Customized
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-NBQ842
Price: 9350 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-NBQ842

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 9350dollars/set

Packaging Details: Wooden case packing

Delivery Time: 40 work days

Payment Terms: L/C

Supply Ability: 25sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                burn in test cabinet customized, photovoltaic inverters burn in test cabinet, customized burn in cabinet


Total Input Current:	200A*6	Total Floor Area:	5800*1800mm(Including Operation Area)
Warranty:	One Year Free Warranty

Total Input Current:	200A*6
Total Floor Area:	5800*1800mm(Including Operation Area)
Warranty:	One Year Free Warranty

Product Description

Large-Scale String Photovoltaic Inverters Burn-In Test Cabinet Customized

Architecture diagram

Performance parameters

System	System structure	1 control cabinet + 6 power cabinets
	Overall size	58008602050mm
	Total floor area	5800*1800mm(Including operation area)
	Total input voltage	Three-phase five-wire system 220Vac (rated)
	Total input current	200A*6
	Total input power	100kW*6
	Application ambient temperature	0-40℃
	Application environment humidity	0-95%
	Fire protection requirements	Materials meet UL 94V0 rating
	Environmental requirements	Materials comply with Rohs, WEEE requirements
	Safety requirements	Comply with IEC62368 international standard design requirements
Burn-in cabinet	Units/Cabinet	4 bits/cabinet
	Burn-in product power	150kW/bit
	Burn-in product input voltage	50-1000Vdc/bit
	Burn-in product input current	500A/bit
	Burn-in Product Load Category	130kW/bit
	Burn-in product output voltage	220/380Vac/50Hz Three-phase five-wire
	Burn-in product output current	200A/bit
	AC Connector Type	PA350 (L1/ L2/ L3/N/PE)
	DC Connector Type	MC4 photovoltaic connector (PV+/PV-/8 groups)
	Signal Connector Type	RJ45 (network port)
	Bit Status Indicator	No
	Input power	600kW
	Feedback power	520kW
	Constant temperature range	Room temperature+5°C-60°C
	Volume size	8008002050mm
	Product area air duct direction	Forward wind, upward wind
	Cooling method	Air cooling
	Material	1.5mm cold rolled sheet
Monitoring software	Display running information	Input voltage, current, power, output voltage (DC source module communication or product communication)
	Show status information	Not Connected / Vacant / Passed / Under Voltage / Under Current / Over Voltage / Over Current / No Output / Protection
	Display accuracy	±(1%+0.2%FS)
	Control precision	±(1%+0.2%FS)
	Bad way of reporting	Audible alarm
	Report format	CSV format
	Statistics	Yield/CPK/Time Distribution
	MES docking	Support
	Scan speed	5S
Control cabinet	Control system	Window 10
	Display medium	Computers and Monitors
	Manipulating medium	Mouse and keyboard
	Communication method	Cable
	Type of protection	Over current, leakage, over temperature, smoke, emergency stop
	Alarm method	Sound and light alarm, remote network
	Heat dissipation type	Air cooling
	Maintenance mode	Post maintenance
	Material	1.5mm cold rolled sheet
	Volume size	8808601900mm
