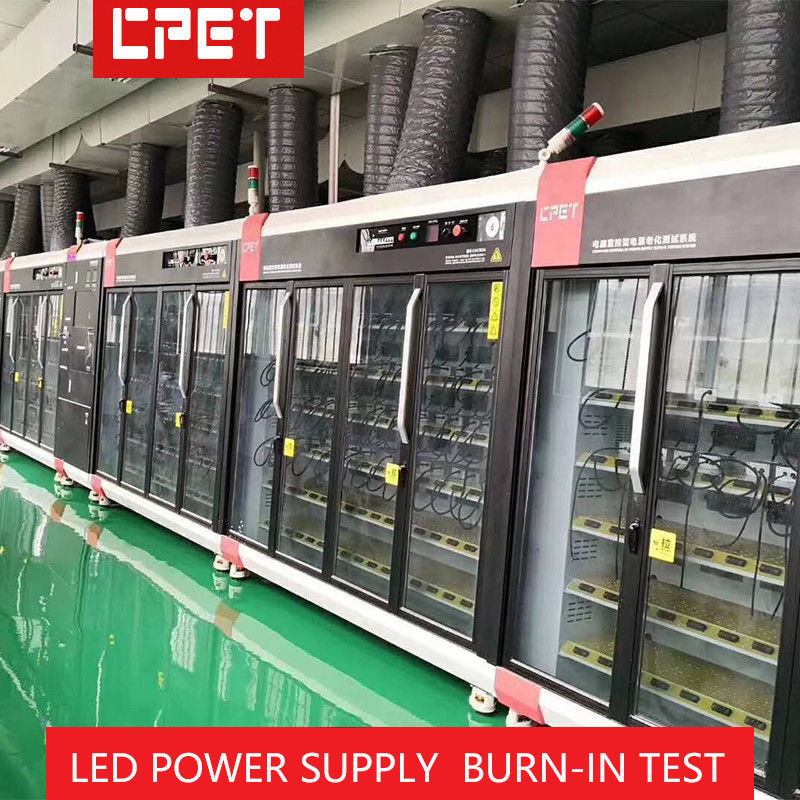

LED Emergency Power Supply Constant Temperature Isopiestic Pressure Ageing Tank

Name: LED Emergency Power Supply Constant Temperature Isopiestic Pressure Ageing Tank
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-300203
Price: 8000 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-300203

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 8000dollars/set

Packaging Details: Wooden case packing

Delivery Time: 35 work days

Payment Terms: L/C

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                600V burn in test, 600W/CH burn in test, 600W/CH burn in test equipment


Power Of Single Channel:	600W/CH	Scope Of Load Voltage:	8-600V
Load Mode:	CC+CV+CR+CP+LED Mode

Power Of Single Channel:	600W/CH
Scope Of Load Voltage:	8-600V
Load Mode:	CC+CV+CR+CP+LED Mode

Product Description

LED Emergency Power Supply Constant Temperature Isopiestic Pressure Ageing Tank

Outstanding functions

1. Be of automatic voltage switching function (optional)

2. Be of temperature monitoring function at products zone (optional)

3. Be of PWM dimming function and two groups of logic control signal function(optional)

4. The model of E-load model can be selected

5. Energy saving conversion efficiency over 85%

Performance parameters

Model	CP-300203
Power of single channel	600W/CH
Quantity of load channels	96CH
Scope of load voltage	8-600V
Scope of load current	0.05-12A/CH
Load precision	±(1%+0.1%FS)
Load Model	Energy Saving
Load Mode	CC+CV+CR+CP+LED Mode
Number for plies of product zone	6
Height for plies of product zone(mm)	170
Width of products zone(mm)	Series CC mode 380
Temperature control of products zone	Temperature control type of products zone: normal temperature-60℃
Structure material of trolley	Elaborately processed and produced with cold-rolled sheet
Mode of main control	Monitoring software for burn-in of computer-monitoring type power
Input mode of UUT	Multi-purpose socket/speaker wire clip/custom design
Interface mode of UUT	Connecting fixture boards (with various specifications) for first choice/custom design
External dimension	205012001900/custom design
