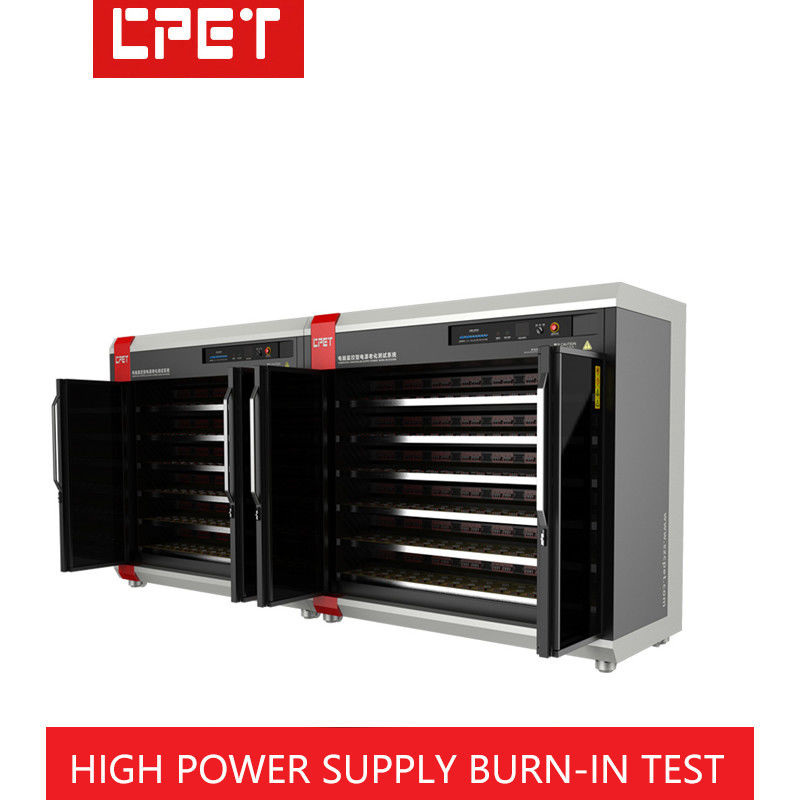

200W/CH Burn In Test Equipment Customized High Power LED Switching Power Supply

Name: 200W/CH Burn In Test Equipment Customized High Power LED Switching Power Supply
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-302303
Price: 7700 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-302303

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 7700dollars/set

Packaging Details: Wooden case packing

Delivery Time: 35 work days

Payment Terms: D/A

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                200W/CH burn in test equipment, LED Switching burn in test equipment, Customized burn in testing


Power Of Single Channel:	200W/CH	Weight:	400kg
Quantity Of Load Channels:	96CH

Power Of Single Channel:	200W/CH
Weight:	400kg
Quantity Of Load Channels:	96CH

Product Description

High Power LED Switching Power Supply Burn-In Test Equipment Customize

Scope of application

Suitable for aging of adapters, industrial power supplies, LED power supplies, server power supplies, communication power supplies, SSN, NPS power supplies, etc.

Outstanding functions

1. Support parallel channel connection under CC load mode and meet the requirements for power extension of products

2. Be of built-in over-temperature and smoke-alarming automatic protection device

3. Be of AC parameters measurement module and testing power input characteristics (optional)

4. Efficiency of energy saving conversion over 85%

Performance parameters

Model	CP-302303
Power of single channel	200W/CH
Quantity of load channels	96CH
Scope of load voltage	10-400V
Scope of load current	0.5-12A/CH
Load precision	±(2%+0.5%FS)
Load Model	Energy saving load module
Load Mode	CC+CV+CR Mode
Number for plies of product zone	6
Height for plies of product zone(mm)	170
Width of products zone(mm)	340
Temperature control of products zone	Temperature control tyep of products zone: normal temperature-60°C
Structure material of trolley	Elaborately processed and produced with cold-rolled sheet
Mode of main control	Monitoring software for burn-in of computermonitoring type power
Input mode of UUT	Multi-purpose socket/speaker wire clip/custom design
Interface mode of UUT	Connecting fixture boards(with various specifications)for first choice/custom design
External dimension	205010001900/custom design
