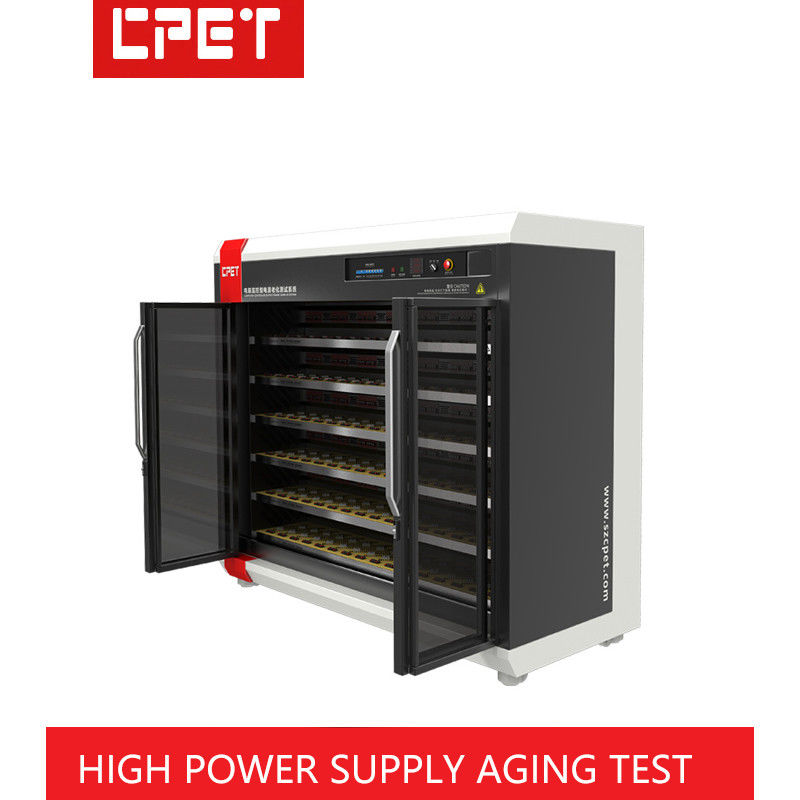

High Power ATX SSI Server Power Supply Burn In Test Equipment Customized

Name: High Power ATX SSI Server Power Supply Burn In Test Equipment Customized
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-303303
Price: 7700 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-303303

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 7700dollars/set

Packaging Details: Wooden case packing

Delivery Time: 35 work days

Payment Terms: D/A

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                SSI Server burn in test equipment, High Power burn in test equipment, Customized burn in test system


Power Of Single Channel:	400W/CH	Weight:	400kg
Scope Of Load Current:	0.5-40A/CH

Power Of Single Channel:	400W/CH
Weight:	400kg
Scope Of Load Current:	0.5-40A/CH

Product Description

High Power ATX/SSI Server Power Supply Burn-In Test Equipment Customize

Scope of application

Suitable for aging of adapters, industrial power supplies, LED power supplies, server power supplies, communication power supplies, SSN, NPS power supplies, etc.

Outstanding functions

1. Be of editable switch sequence and load conversion function

2. Energy conversion efficiency of is more than 85%

3. Be of optional multiple laminate structures at products zone and meet the requirements for more convenient operation of different products

4. E-load model can be select,energy saving or Non-energy saving

Performance parameters

Model	CP-303303
Power of single channel	400W/CH
Quantity of load channels	96CH
Scope of load voltage	3-60V
Scope of load current	0.5-40A/CH
Load precision	±(2%+0.5%FS)
Load Model	Energy saving load module
Load Mode	CC+CV+CR Mode
Number for plies of product zone	6
Height for plies of product zone(mm)	170
Width of products zone(mm)	340
Temperature control of products zone	Temperature control tyep of products zone: normal temperature-60°C
Structure material of trolley	Elaborately processed and produced with cold-rolled sheet
Mode of main control	Monitoring software for burn-in of computermonitoring type power
Input mode of UUT	Multi-purpose socket/speaker wire clip/custom design
Interface mode of UUT	Connecting fixture boards(with various specifications)for first choice/custom design
External dimension	205010001900/custom design
