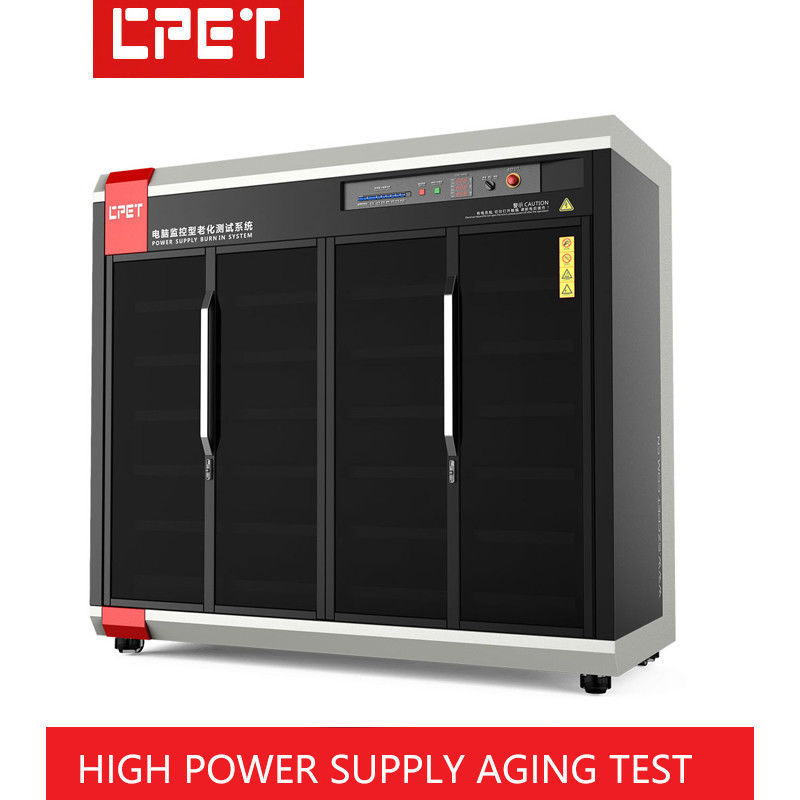

Custom Burn In Test Equipment For High Power Communication Power Module

Name: Custom Burn In Test Equipment For High Power Communication Power Module
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-303403
Price: 8000 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-303403

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 8000dollars/set

Packaging Details: Wooden case packing

Delivery Time: 35 work days

Payment Terms: D/A

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                Custom burn in chambers, 1600W/CH burn in chambers, Custom burn in test chamber


Power Of Single Channel:	1600W/CH	External Dimension:	205010001900mm
Scope Of Load Current:	0.5-120A/CH

Power Of Single Channel:	1600W/CH
External Dimension:	205010001900mm
Scope Of Load Current:	0.5-120A/CH

Product Description

Burn-In Test Equipment Customize For High Power Communication Power Module

Scope of application

Suitable for aging of adapters, industrial power supplies, LED power supplies, server power supplies, communication power supplies, SSN, NPS power supplies, etc.

Outstanding functions

1. Energy conversion efficiency of is more than 85%

2. Cooperate with monitoring software of power burn-in, for application

3. Be of automatic voltage switching function (optional)

4. Be of temperature monitoring function at products zone (optional)

Performance parameters

Model	CP-303403
Power of single channel	1600W/CH
Quantity of load channels	36CH
Scope of load voltage	3-60V
Scope of load current	0.5-120A/CH
Load precision	±(2%+0.5%FS)
Load Model	Energy saving load module
Load Mode	CC+CV+CR Mode
Number for plies of product zone	6
Height for plies of product zone(mm)	170
Width of products zone(mm)	340
Temperature control of products zone	Temperature control tyep of products zone: normal temperature-60°C
Structure material of trolley	Elaborately processed and produced with cold-rolled sheet
Mode of main control	Monitoring software for burn-in of computermonitoring type power
Input mode of UUT	Multi-purpose socket/speaker wire clip/custom design
Interface mode of UUT	Connecting fixture boards(with various specifications)for first choice/custom design
