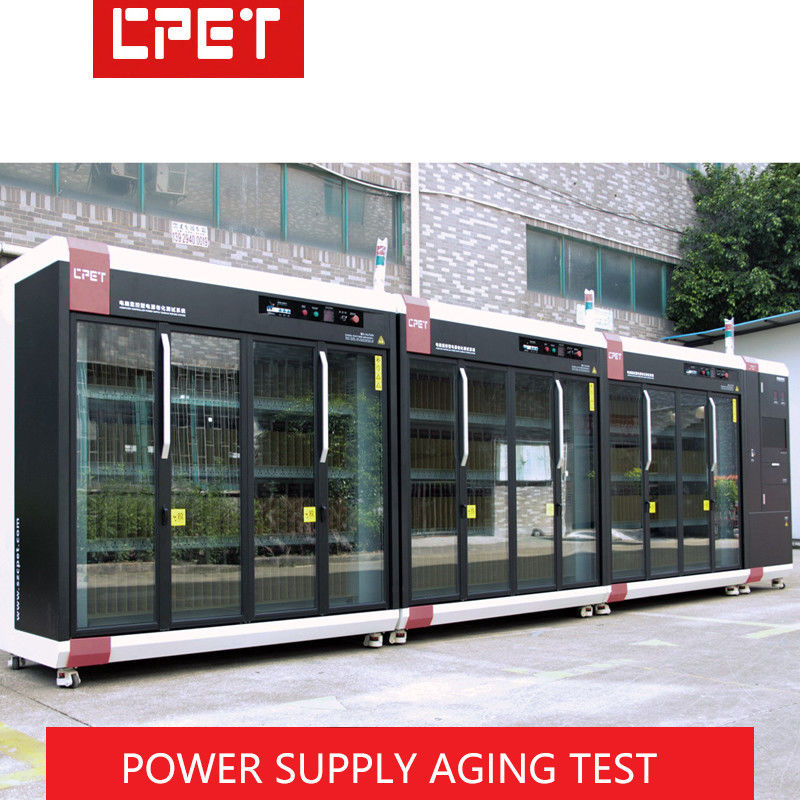

Commutative Switch Mode Power Supply High Power Burn In Test Equipment Custom

Name: Commutative Switch Mode Power Supply High Power Burn In Test Equipment Custom
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-303603
Price: 8100 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-303603

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 8100dollars/set

Packaging Details: Wooden case packing

Delivery Time: 35 work days

Payment Terms: D/A

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                burn in test equipment, burn in test equipment, burn in equipment


Power Of Single Channel:	2000W/CH	External Dimension:	205010001900mm
Scope Of Load Current:	480A/CH

Power Of Single Channel:	2000W/CH
External Dimension:	205010001900mm
Scope Of Load Current:	480A/CH

Product Description

Commutative Switch Mode Power Supply High Power Burn-In Test Equipment Customize

Scope of application

Suitable for aging of adapters, industrial power supplies, LED power supplies, server power supplies, communication power supplies, SSN, NPS power supplies, etc.

Outstanding functions

1. Be of AC parameters measurement module and testing power input characteristics (optional)

2. Be of automatic voltage switching function (optional)

3. Be of CC ,CV,CR load modes

4. Energy conversion efficiency of is more than 85%

Performance parameters

Model	CP-303603
Power of single channel	2000W/CH
Quantity of load channels	12CH
Scope of load voltage	3-600V
Scope of load current	480A/CH
Load precision	±(2%+0.5%FS)
Load Model	Energy saving load module
Load Mode	CC+CV+CR Mode
Number for plies of product zone	6
Height for plies of product zone(mm)	170
Width of products zone(mm)	340
Temperature control of products zone	Temperature control tyep of products zone: normal temperature-60°C
Structure material of trolley	Elaborately processed and produced with cold-rolled sheet
Mode of main control	Monitoring software for burn-in of computermonitoring type power
Input mode of UUT	Multi-purpose socket/speaker wire clip/custom design
Interface mode of UUT	Connecting fixture boards(with various specifications)for first choice/custom design
