Burn In Test Chamber Of Solar Photovoltaic Power Generation Grid Tie Inverter

Name: Burn In Test Chamber Of Solar Photovoltaic Power Generation Grid Tie Inverter
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-NBQ40
Price: 8700 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-NBQ40

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 8700dollars/set

Packaging Details: Wooden case packing

Delivery Time: 35 work days

Payment Terms: L/C

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                Grid Tie Inverter burn in test chamber, burn in test chamber, Grid Tie Inverter ageing chamber


Trolley Height:	Cold-rolled Sheet	Number Of Car Layers::	6
Height Of Truck::	200mm

Trolley Height:	Cold-rolled Sheet
Number Of Car Layers::	6
Height Of Truck::	200mm

Product Description

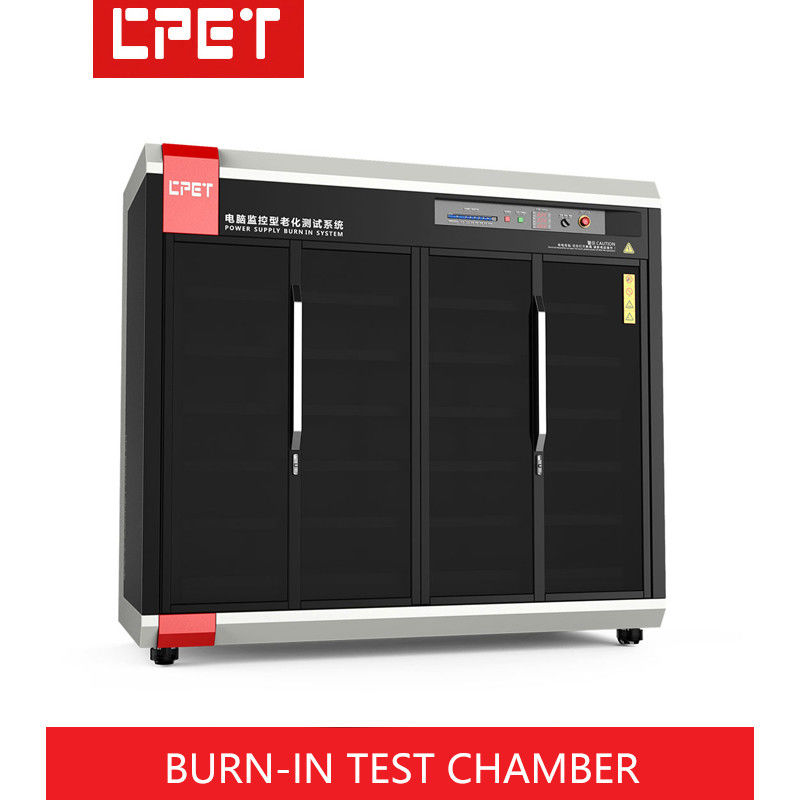

Burn-In Test Chamber Of Solar Photovoltaic Power Generation Grid-Tie Inverter

Performance parameters

1	Introduction to the appearance structure of the aging trolley:
A	Car size (mm) :	L2050W880H2200
B	Number of car layers:	6
C	Height of truck:	200mm
D	Truck structure material/Appearance main color:	Cold rolled sheet, black and white
E	Load area heat dissipation mode:	Top turbine exhaust fan up-row (easy ring temperature control)
F	Interlayer insulation and anti-static mode:	Epoxy insulating board with heat dissipation holes on the surface
G	Truck structure form:	The product area is isolated from the load area, and the top of the cabinet is provided with an air vent
H	Overall aging room structure:	Adopt mobile aging cabinet; It is beautiful and easy to move and combine
I	Aluminum alloy visual sliding door structure:	Product area closed, push-pull glass door
2	Electronic load module configuration, measured power and aging quantity:
A	Electronic load module control mode:	RS485 communication mode, host computer RS232 communication mode
B	Single-pass rated power of AC/DC power module:	Single channel 500W, whole power module 50000W
C	Configure the CP218 capture card:	Collect input voltage and current data of each DC input channel; Collect 90 bits
D	Number of vehicle aging products:	Inverters below 500W are 90 bits
3	Introduction of electric control and temperature control device for aging truck:
A	Connection mode:	The DC input end is a push-pull docking connector; AC output is connected to the grid with a general aviation plug/socket
B	Panel function keys:	Input AC voltage display, start switch, emergency stop switch
C	Product area temperature control accuracy:	The product area is closed, with folding glass door, temperature control range: room temperature to 60℃
D	Product area temperature control principle:	Low temperature heating, over temperature exhaust
