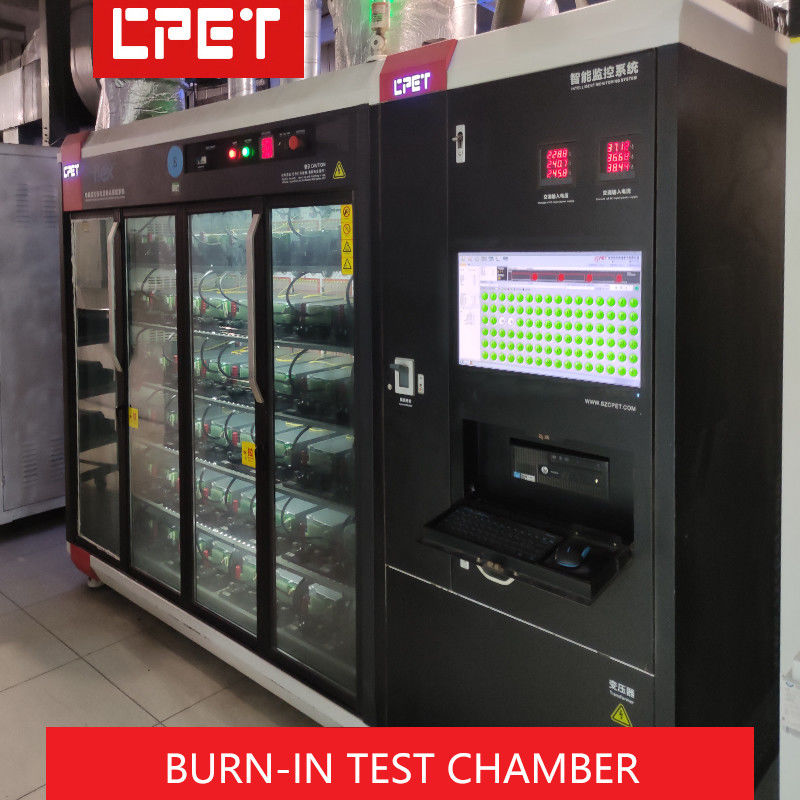

LED Drive Power Supply Constant Temperature Constant Pressure Aging Test Cabinet

Name: LED Drive Power Supply Constant Temperature Constant Pressure Aging Test Cabinet
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-300305
Price: 8200 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-300305

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 8200dollars/set

Packaging Details: Wooden case packing

Delivery Time: 35 work days

Payment Terms: L/C

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                Led Drive Burn In Chamber, Constant Temperature Burn In Chamber, Constant Pressure aging test cabinet


Car Size:	L2050W880H1900MM	Weight:	400kg
Electronic Load:	CP8523

Car Size:	L2050W880H1900MM
Weight:	400kg
Electronic Load:	CP8523

Product Description

Led Drive Power Supply Constant Temperature Constant Pressure Aging Test Cabinet

Performance parameters

1	Introduction to the appearance structure of the aging trolley:
A	Car size	L2050W880H1900MM
B	Number of car layers:	6
C	Height of truck:	170MM
D	Truck structure material:	Cold-rolled sheet
E	Load area heat dissipation mode:	Top turbine exhaust fan up-row
F	Interlayer insulation and anti-static mode:	Epoxy insulating board with heat dissipation holes on the surface
G	Truck structure form:	The test area is isolated from the load area
H	Aluminum alloy visual sliding door structure:	Product enclosed, viewable folding glass door
I	Car structure type:	The fourth layer and the fifth layer of the product placement area are flipped structures, and the bottom working space is large to facilitate the loading and unloading of products
2	Energy recovery module configuration, measured power and aging quantity introduction:
A	Electronic load module control mode:	RS485 communication mode, host computer RS232 communication mode
B	Install Energy recovery module Model:	CP8523(8-420V, 0.5-15A, 600W/CH,) inverter CP5306
C	Electronic load module isolation mode:	Electronic load module channel adopts photoelectric isolation (communication and power supply isolation)
D	Number of energy recovery load modules installed:	Install 6 CP8523 load on each layer, a total of 6 layers, 36 vehicles installed, a total of 16 inverter CP5306
E	Energy recovery load loading mode:	In CC mode, channels can be connected in parallel
F	Electronic load design architecture:	No electrolytic capacitor, no relay, long life design scheme (independent intellectual property rights)
G	Number of electronic load module channels:	4CH
H	Single pass rated power of load module:	600W/CH The power of the measured single-channel power supply is less than 600W
I	Number of vehicle aging products:	Power supply below 600W 144 bits
J	Number of parallel dual-channel aging products:	72 power supplies below 1200W (only CC mode can be paralleled)
