Power Bank Aging Test Equipment with 192CH Load Channels 50W/CH Power and RS485 Communication for Mobile Power Burn-In Tester

Name: Power Bank Aging Test Equipment with 192CH Load Channels 50W/CH Power and RS485 Communication for Mobile Power Burn-In Tester
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-CDB01
Price: 7200 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-CDB01

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 7200dollars/set

Packaging Details: Wooden case packing

Delivery Time: 35 work days

Payment Terms: L/C

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                Fast Charge aging test machine, Mobile Power Charger aging test machine, 50W/CH burn in test equipment


Quantity Of Load Channels:	192CH	Guarantee Period:	12 Months
Power Of Single Channel:	50W/CH

Quantity Of Load Channels:	192CH
Guarantee Period:	12 Months
Power Of Single Channel:	50W/CH

Product Description

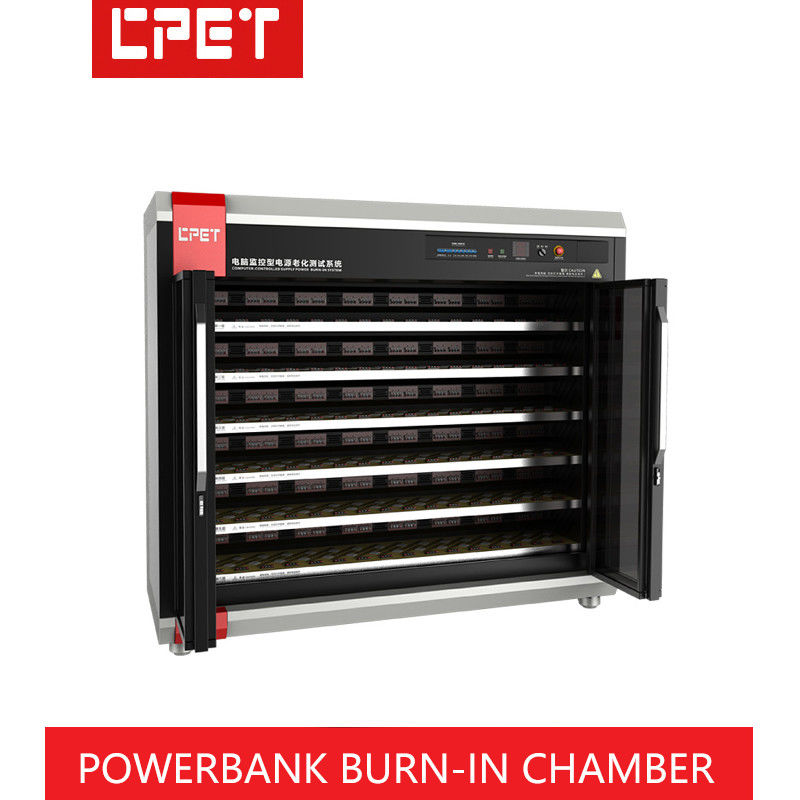

Automatic Portable Fast Charge Mobile Power Charger Aging Car

Performance Parameters

1. Appearance Structure Specifications

Feature	Description
Car size (mm)	L2050 * W880 * H1900
Number of car layers	6 floors
Height of truck	170mm
Truck structure material	Cold-rolled sheet
Load area heat dissipation mode	Top turbine exhaust fan up-row (easy ring temperature control)
Interlayer insulation and anti-static mode	Epoxy insulating board with heat dissipation holes on the surface
Truck structure form	The test area is isolated from the load area
Aluminum alloy visual sliding door structure	Product enclosed, viewable folding glass door
Car structure type	The fourth and fifth layers feature flipped structures with large bottom working space for easy product loading/unloading

2. Module Configuration and Technical Specifications

Feature	Description
Electronic load module control mode	RS485 communication mode, host computer RS232 communication mode
Mounting load module model	CP2127 (2-30V/0.2-5A/100W) with PA220D12161 bidirectional ACDC module
Electronic load module isolation mode	Photoelectric isolation (communication and power supply isolation)
Number of installed load modules	24 CP2127 charging/discharging modules and 12 PA220D12161 bidirectional ACDC modules per floor
Energy-intensive load loading mode	CC mode with parallel channel connection capability
Electronic load design architecture	No electrolytic capacitor, no relay, long life design
Number of electronic load module channels	8CH (8 channels)
Single pass rated power of load module	100W/CH (for power supplies under 100W)
Number of vehicle aging products	192 positions for products with output power below 100W
