Maximum Power Point Tracking Solar Controller Burn In Test Equipment Factory

Name: Maximum Power Point Tracking Solar Controller Burn In Test Equipment Factory
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-MPPT01
Price: 8400 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-MPPT01

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 8400dollars/set

Packaging Details: Wooden case packing

Delivery Time: 30 work days

Payment Terms: L/C

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                solar controller burn in test equipment, solar controller burn in equipment


Trolley Size:	L2050W1250H2050mm	Trolley Height:	280mm
Install The Skill Module Model:	CP8601

Trolley Size:	L2050W1250H2050mm
Trolley Height:	280mm
Install The Skill Module Model:	CP8601

Product Description

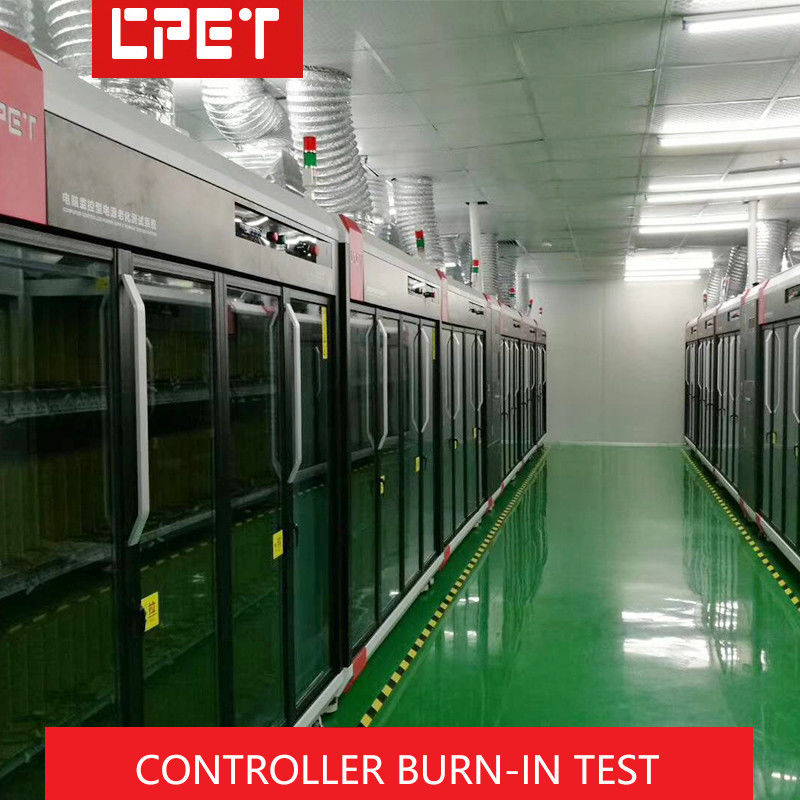

Maximum Power Point Tracking Solar Controller Burn-In Test Equipment Factory

Performance parameters

Burn-in cabinet
structure and
Burn-in quantity
planning

Trolley size (mm)

L2050*W1250*H2050mm (size of a single Burn-in cabinet)

Number of trolley layers

4 layers, product area depth 400mm, (6 Burn-in positions per layer)

Layer insulation and anti-static method

Epoxy insulation board with heat dissipation holes on the surface

Overall burn-in room structure

Adopt mobile Burn-in split cabinet; beautiful appearance and easy to move and combine

Introduction to energy recovery module
configuration, power of the tested power supply and Burn-in quant

Energy recovery module control method

RS485 communication mode, upper computer uses RS232 communication mode

Number of installed DC source modules

Each burn-in cabinet is configured with six 10-120V /200A /20KW DC power modules

Energy recovery module carrying capacity

Load capacity: 2.5-60Vdc/0.5-240A/3.2kW (voltage, current adjustable

rgy recovery module design
architecture

No relay, long life design scheme (independent intellectual property rights)

Number of burn-in products in the entire cabinet

One cabinet burn-in MTTP modules of less than 3.2KW 24PCS

Introduction to the
main functions of
the system

Applicable to energy storage power,current converter, inverter, regurgitator,transverter, medical power supply and so on

Free configuration of self-developed special monitoring software for power Burn-in, with independent intellectual property rights and no legal risks

Use programmable electronic load module to monitor output terminal voltage, current and power parameters

The computer automatically displays the quality of the tested power supply product, and multiple windows in the window are convenient for centralized
management, which saves operators and improves production efficiency

The computer can store the Burn-in data report of the tested power supply, the process parameters of the tested power supply are easy to trace

RS232 to RS485 adopts photoelectric isolation converter to improve communication reliability and prevent lightning damage to equipment

Each computer can monitor 18 devices at the same time, (each serial port can connect to 63 slaves, and each computer supports up to 18 serial ports)

The power Burn-in monitoring software has a built-in help file, which is convenient for solving operation questions immediately
