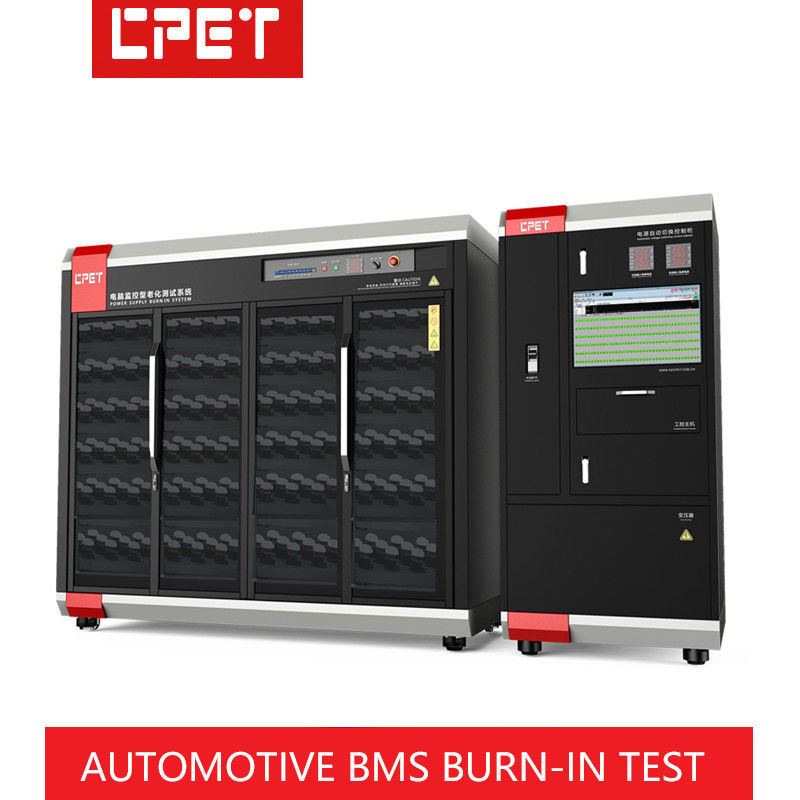

New Energy Pure Electric Vehicle BMS Module Aging Test Experimental Cabinet

Name: New Energy Pure Electric Vehicle BMS Module Aging Test Experimental Cabinet
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-BMS03
Price: 8800 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-BMS03

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 8800dollars/set

Packaging Details: Wooden case packing

Delivery Time: 45 work days

Payment Terms: L/C

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                bms aging test chamber, bms new energy solutions, new energy aging test chamber


Warranty Period:	12 Months	Aging Quantity:	36
Rated Working Current:	32A

Warranty Period:	12 Months
Aging Quantity:	36
Rated Working Current:	32A

Product Description

New Energy Pure Electric Vehicle BMS Module Aging Test Experimental Cabinet

Performance parameters

Skills requirement	Burn-in cabinet size(mm)	L1600W1100H1600
	Rated working voltage	380Vac
	Rated insulation voltage	690Vac
	Rated frequency	50Hz
	Rated working current	32A
	Power frequency withstand voltage for 1 minute	2500Vac
	UUT input specifications	12VDC/5Amax*36passageway
	UUT output specifications	Static burn-in without load
	Number of burn-in stations	36 (6 layers * 6, hierarchical control)
	Burn-in temperature requirements	Product area (50 ℃ ~ 85 ℃) can be set, ± 3 ℃ precise control
	Temperature rise	Requires a temperature rise from room temperature to 85 ° C within 15 minutes. When the internal temperature is high,the surface temperature of the burn-in cabinet is below 35 °
	Branch switch	6 way 10A/30mA/3P or 1P
Structural requirements	Dimension(mm)	1600(W)1100(D)1600(H)
	In and out line	Support next in and next out
	Installation method	Floor installation
	Burn-in slot layout requirements	6 layers, 6 burn-in (3 before 3) slots per layer; each layer is individually powered on
Monitor and indicate	Monitoring requirements	Touch screen displays the power-on state and sensor state of each slot
	Safety requirements	1.With power supply, product and other key components short-circuit, over-current field energy analysis 2.With energy analysis under over-temperature, smoke and liquid leakage scenarios 3.The control circuit has a leakage protection function 4.Possess the ability to detect and operate ground faults and leakage faults 5.PLC control, real-time monitoring of burn-in cabinet status
	Panel instructionsv	Status indicator of each slot
