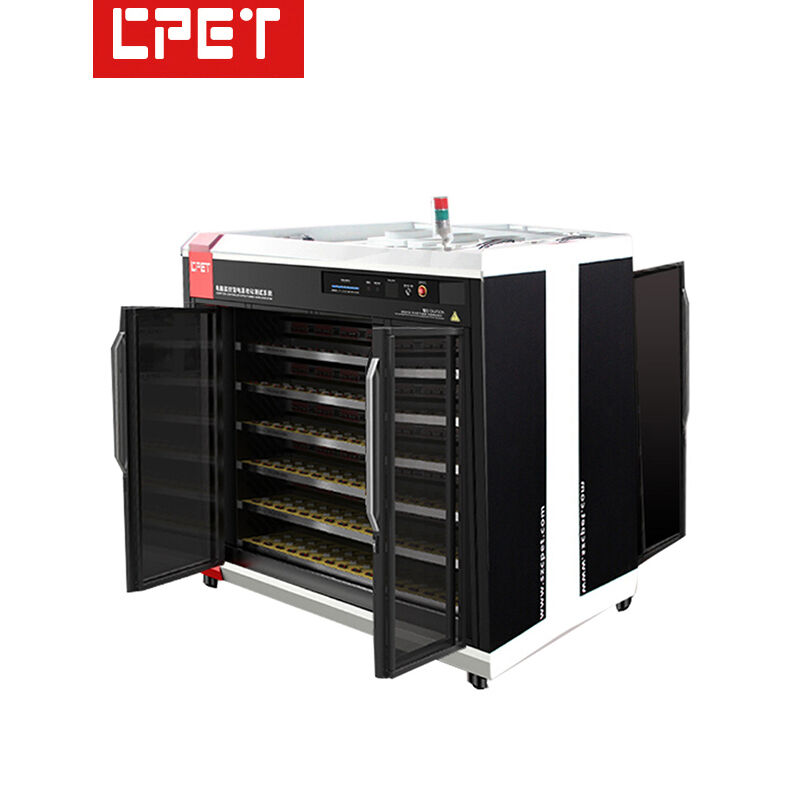

Electronic Cigarette / Notebook Lithium Battery Charging And Discharging burning-in Test Equipment

Name: Electronic Cigarette / Notebook Lithium Battery Charging And Discharging burning-in Test Equipment
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-DC3001
Price: 42800 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Certification: CE,ROHS

Model Number: CP-DC3001

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: ¥ 42800 yuan

Packaging Details: wooden case packing

Delivery Time: 35 work days

Payment Terms: T/T

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:

Colour:	Black	Guarantee Period:	12 Months
Item Number:	CPMT-DC3001	Purpose:	Battery Aging Test

Colour:	Black
Guarantee Period:	12 Months
Item Number:	CPMT-DC3001
Purpose:	Battery Aging Test

Product Description

Electronic Cigarette / Notebook Lithium Battery Charging And Discharging burning-in Test Equipment

Scope of Application

This specialized equipment is engineered for comprehensive lithium battery module burn-in testing systems, providing reliable performance validation for electric vehicle applications.

Performance Parameters

Parameter	Specification Requirements
Burn-in Cabinet Size	L2600 * W1320 * H1980 (mm)
Distribution Cabinet Size	L600 * W1320 * H1980 (mm)
Electrical Design	Incoming line: three-phase 380V / 68A Power distribution: AC output adopts three-phase five-wire system, single-phase voltage supplies power to the power module, with three-phase equalization in layers Control: power output of each layer can be monitored and controlled
Cabinet Layout & Design	Overall layout: aging cabinet contains product area and isolation module area with complete isolation Product area: 6 layers, 3 slots per layer, 1 PSU per layer, 6 isolation modules Connection method: hard connection with fixed external interfaces including power supply output, load input, 485 signal, and address signal Heat capacity design: 13.5kW (2.25kW * 6)
Monitoring System	PC: supports multiple 485 serial communication, Windows 7 system, 500GB hard disk Includes 22-inch monitor, mouse, keyboard, wireless barcode gun General monitoring: 1-way 485 communication with PC, 4-way downstream 485 communication with monitoring subsystems PSU monitoring: monitors each power supply module through 485 serial communication Load isolation module monitoring: monitors each isolation module through 485 communication Power environment monitoring: individual control of each layer power supply and fan switches
Software Capabilities	485 receives commands from host computer and monitors power modules through CAN Implements output voltage and current limit setting commands Manages voltage, current, temperature, smoke status information queries Comprehensive management of power module monitoring, load isolation, cabinet environment, and product testing Real-time abnormality handling, parameter adjustment, control restart/reset, and alarm recording
Safety & Protection Features	Cabinet smoke and over temperature protection systems Heat dissipation: single load cabinet product area has 6KW heat dissipation capacity Leakage protection: 30mA leakage protection circuit breaker installed on AC side Comprehensive fire prevention and emergency protection functions

All specifications and safety features are designed to meet industry standards and ensure reliable, safe operation during lithium battery module burn-in testing procedures.
