Charger And Adapter Aging System High Power Adapter Power Aging Cabinet

Name: Charger And Adapter Aging System High Power Adapter Power Aging Cabinet
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-3006
Price: 8500 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-3006

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 8500dollars/set

Packaging Details: Wooden case packing

Delivery Time: 30 work days

Payment Terms: L/C

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                60V power aging cabinet, High Power Adapter power aging cabinet, 300W aging test cabinet


Power Of Single Channel:	300W	Quantity Of Load Channels:	192CH
Scope Of Load Voltage:	3-60V	Scope Of Load Current:	0.2-20A/CH
Load Mode:	CC+CV Mode	External Dimension (LWH):	20508801900/custom Design

Power Of Single Channel:	300W
Quantity Of Load Channels:	192CH
Scope Of Load Voltage:	3-60V
Scope Of Load Current:	0.2-20A/CH
Load Mode:	CC+CV Mode
External Dimension (LWH):	20508801900/custom Design

Product Description

Application Scope

Power sources such as chargers, power adapters, wireless charging, etc.

excellent function

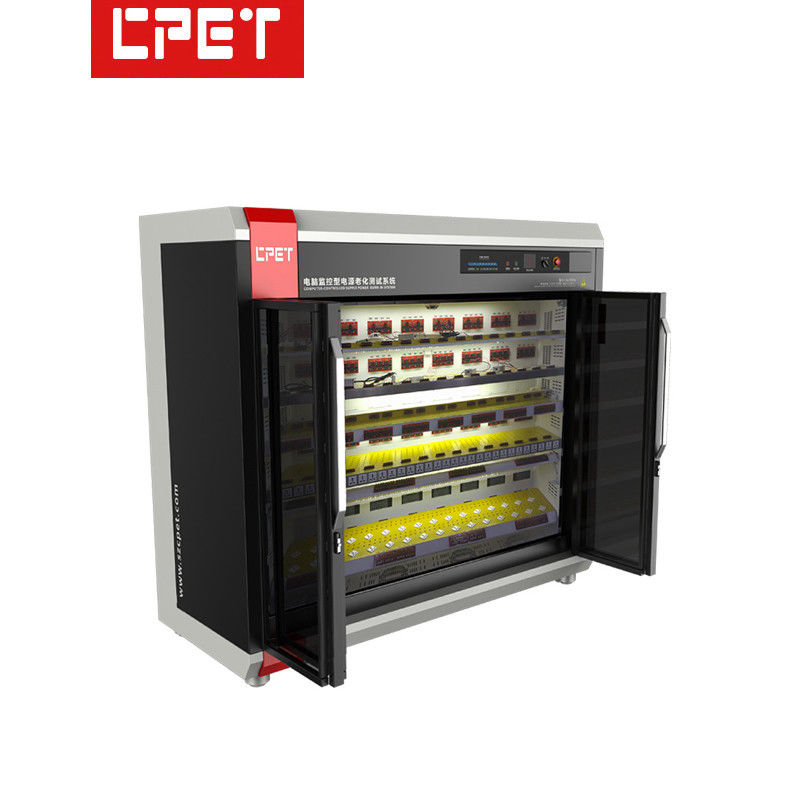

Charger And Adapter Aging System High Power Adapter Power Aging Cabinet 1

1. Set various load parameters and real-time monitor for parameters such as voltage, current and power by computer software.

2. Be of CC load modes.

3. Support parallel channel connection under CC load mode and meet the requirements for power extension of products.

4. Be of built-in over-temperature and smoke-alarming automatic protection device.

5. Be of editable switch sequence and load conversion function.

6. Cooperate with monitoring software of power burn-in, for application.

7. Interface of multiple DC adapter plates can meet the demands for different output interface products.

8. Be of optional multiple laminate structures at products zone and meet the requirements for more convenient operation of

different products.

9. Be of AC parameters measurement module and testing power input characteristics(optional).

10. Be of automatic voltage switching function (optional).

11. Be of temperature monitoring function at products zone (optional).

12. Efficiency of energy saving conversion over 85%.

Performance parameters

Model	CP-3006	CP-3008	CP-3009	CP-3010
Power of single channel	200W/CH	150W/CH	100W/CH	65W/CH
Quantity of load channels	192CH	192CH	192CH	192CH
Scope of load voltage	2-100V	2-100V	2-100V	2-100V
Scope of load current	0.2-10A/CH	0.2-10A/CH	0.2-10A/CH	0.2-10A/CH
Load precision	±(1%+0.1%FS)	±(1%+0.1%FS)	±(1%+0.1%FS)	±(1%+0.1%FS)
Load Model	Energy Saving	Energy Saving	Energy Saving	Energy Saving
Load Mode	CC+CV Mode	CC+CV Mode	CC+CV Mode	CC+CV Mode
Number for plies of product zone	Single side	Single side	Single side	Single side
Height for plies of product zone(mm)	170
Width of products zone(mm)	Series CC mode 340
Temperature control of products zone	Temperature control type of products zone: normal temperature-60℃
Structure material of trolley	Elaborately processed and produced with cold-rolled sheet
Mode of main control	Monitoring software for burn-in of computer-monitoring type power
Input mode of UUT	Multi-purpose socket/speaker wire clip/custom design
Interface mode of UUT	Connecting fixture boards (with various specifications) for first choice/custom design
Customizable fast charge function	QC, PO, FCP, SCP, PPS, etc.
External dimension	20508801900/custom design
