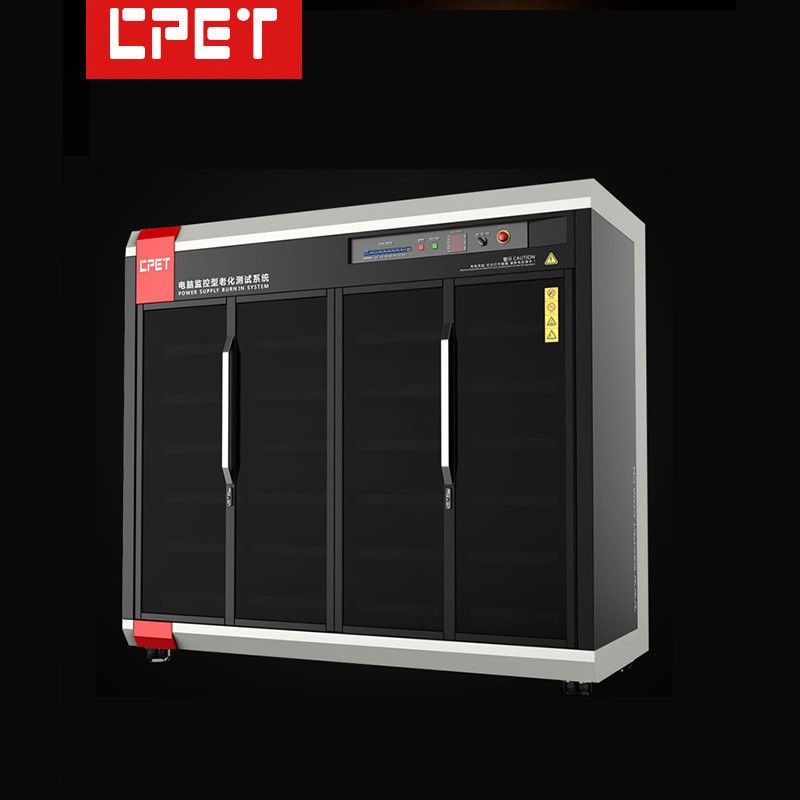

High Power Energy Saving Feedback Burn In Cabinet Of Industrial Power Supplies

Name: High Power Energy Saving Feedback Burn In Cabinet Of Industrial Power Supplies
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-3022
Price: 7900 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-3022

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 7900dollars/set

Packaging Details: Wooden case packing

Delivery Time: 30 work days

Payment Terms: L/C

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                800W/CH burn in test equipment, Energy Saving burn in test equipment, 600A/CH aging test chamber


Power Of Single Channel:	800W/CH	Quantity Of Load Channels:	48CH
Scope Of Load Current:	600A/CH

Power Of Single Channel:	800W/CH
Quantity Of Load Channels:	48CH
Scope Of Load Current:	600A/CH

Product Description

High-Power Energy-Saving Feedback Burn-In Cabinet Of Industrial Power Supplies

Scope of application

Suitable for burn-in of adapters, industrial power supplies, LED power supplies, server power supplies, communication power supplies, and SSN and NPS power supplies

Outstanding functions

1. Set various load parameters and real-time monitor for parameters such as voltage, current and power by computer software

2. Be of CC ,CV,CR load modes

3. Support parallel channel connection under CC load mode and meet the requirements for power extension of products

4. Be of built-in over-temperature and smoke-alarming automatic protection device

5. Be of editable switch sequence and load conversion function

6. Energy conversion efficiency of is more than 85%

7. Cooperate with monitoring software of power burn-in, for application

8. Interface of multiple DC adapter plates can meet the demands for different output interface products

9. Be of optional multiple laminate structures at products zone and meet the requirements for more convenient operation of different products

10. Be of AC parameters measurement module and testing power input characteristics (optional)

Performance parameters

Model	CP-3021	CP-3022	CP-3023
Power of single channel	3200W/CH	800W/CH	200W/CH
Quantity of load channels	24CH	48CH	96CH
Scope of load voltage	3-60V/10-120V	3-60V/10-120V	10-400V
Scope of load current	100A-400A/CH	600A/CH	0.5-12A/CH
Load precision	±(2%+0.5%FS)
Load Model	Energy saving load module
Load Mode	CC+CV+CR Mode
Number for plies of product zone	6
Height for plies of product zone(mm)	170
Width of products zone(mm)	340
Temperature control of products zone	Temperature control tyep of products zone: normal temperature-60°C
Structure material of trolley	Elaborately processed and produced with cold-rolled sheet
Mode of main control	Monitoring software for burn-in of computermonitoring type power
Input mode of UUT	Multi-purpose socket/speaker wire clip/custom design
Interface mode of UUT	Connecting fixture boards(with various specifications)for first choice/custom design
External dimension	205010001900/custom design
