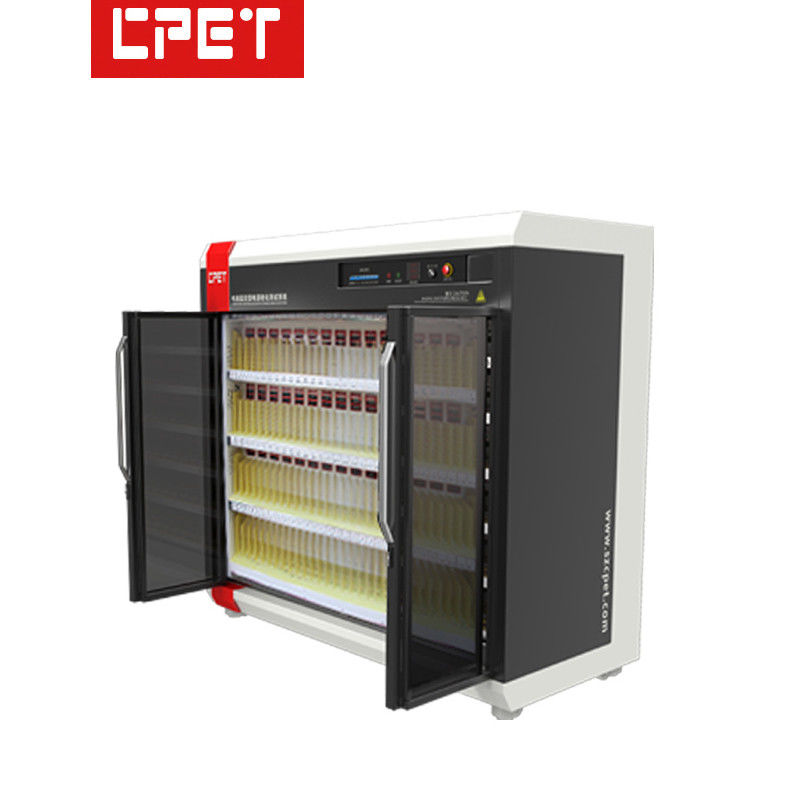

5g Communication Power Aging Cabinet High Power Energy Board Aging Test System

Name: 5g Communication Power Aging Cabinet High Power Energy Board Aging Test System
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-5G02
Price: 8800 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-5G02

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 8800dollars/set

Packaging Details: Wooden case packing

Delivery Time: 30 work days

Payment Terms: L/C

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                1200W/CH Aging Test System, Energy Board Aging Test System, 380V aging test machine


Reference Size (DWH):	D1000mmW600mmH1700mm	Burn-in Test Capacity:	1200W/CH
Rated Working Voltage:	AC：380VAC

Reference Size (DWH):	D1000mmW600mmH1700mm
Burn-in Test Capacity:	1200W/CH
Rated Working Voltage:	AC：380VAC

Product Description

5g Communication Power Aging Cabinet High Power Energy Board Aging Test System

Scope of application

It is mainly used to meet the burn-in requirements of 5G communication energy low-voltage three-phase 4KW and single-phase 6KW products, and is compatible with the burn-in test of 2KW and energy board power products to meet the factory test requirements.

Performance parameters

Project	Specification requirements
Reference size (DWH)	D1000mmW600mmH1700mm
Burn-in test capacity	1200W/CH,60CH
Rated working voltage	AC:380VAC/Three-phase+10%/-15%
Rated insulation voltage	690VAC
Rated frequency	50Hz
Rated working current	Input:360A
Operating temperature	5℃-45℃
Output channel specifications	380VAC/Three-phase 60A
Protective function	Support smoke sense, over temperature, and three-color light display status at the same time
Monitoring rate	The refresh interval of digitally collected information in the cabinet needs to be less than 1S
Smoke sensor type	Overhead installation type smoke sense, normally closed point work
Flammability rating	All materials of the cabinet must meet the 99-V0 rating
