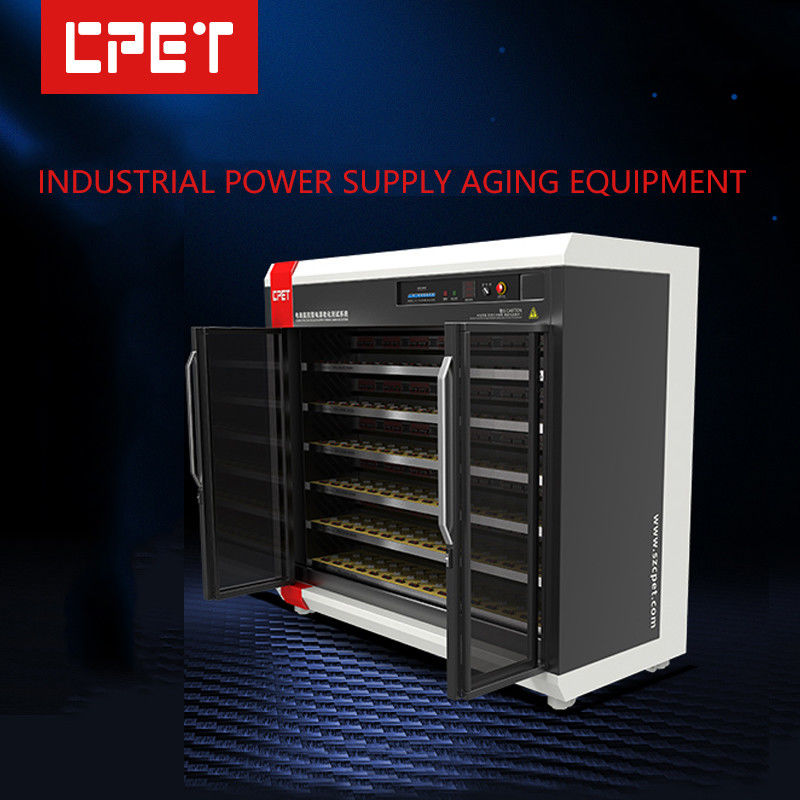

Aging Test Machine Energy Saving Burn In Testing For Industrial Power Supply

Name: Aging Test Machine Energy Saving Burn In Testing For Industrial Power Supply
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-3022
Price: 8400 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-3022

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 8400dollars/set

Packaging Details: Wooden case packing

Delivery Time: 40 work days

Payment Terms: L/C

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                Energy Saving Aging Test Machine, 800W/CH Aging Test Machine, 800W/CH burn in test system


Power Of Single Channel:	800W/CH	Quantity Of Load Channels:	48CH
Scope Of Load Current:	600A/CH

Power Of Single Channel:	800W/CH
Quantity Of Load Channels:	48CH
Scope Of Load Current:	600A/CH

Product Description

Aging Test Machine Energy Saving Burn-In Testing For Industrial Power Supply

Scope of application

Suitable for burn-in of adapters, industrial power supplies, LED power supplies, server power supplies, communication power supplies, and SSN and NPS power supplies

Outstanding functions

1. Set various load parameters and real-time monitor for parameters such as voltage, current and power by computer software

2. Support parallel channel connection under CC load mode and meet the requirements for power extension of products

3. Be of built-in over-temperature and smoke-alarming automatic protection device

4. Be of editable switch sequence and load conversion function

5. Cooperate with monitoring software of power burn-in, for application

6. Interface of multiple DC adapter plates can meet the demands for different output interface products

7. Be of AC parameters measurement module and testing power input characteristics (optional)

8. Be of automatic voltage switching function (optional)

9. E-load model can be select,energy saving or Non-energy saving

10. Efficiency of energy saving conversion over 85%

11. Energy saving conversion efficiency over 85%

Performance parameters

Model	CP-3021	CP-3022
Power of single channel	3200W/CH	800W/CH
Quantity of load channels	24CH	48CH
Scope of load voltage	3-60V/10-120V	3-60V/10-120V
Scope of load current	100A-400A/CH	600A/CH
Load precision	±(2%+0.5%FS)
Load Model	Energy saving load module
Load Mode	CC+CV+CR Mode
Number for plies of product zone	6
Height for plies of product zone(mm)	170
Width of products zone(mm)	340
Temperature control of products zone	Temperature control tyep of products zone: normal temperature-60°C
Structure material of trolley	Elaborately processed and produced with cold-rolled sheet
Mode of main control	Monitoring software for burn-in of computermonitoring type power
Input mode of UUT	Multi-purpose socket/speaker wire clip/custom design
Interface mode of UUT	Connecting fixture boards(with various specifications)for first choice/custom design
External dimension	205010001900/custom design
