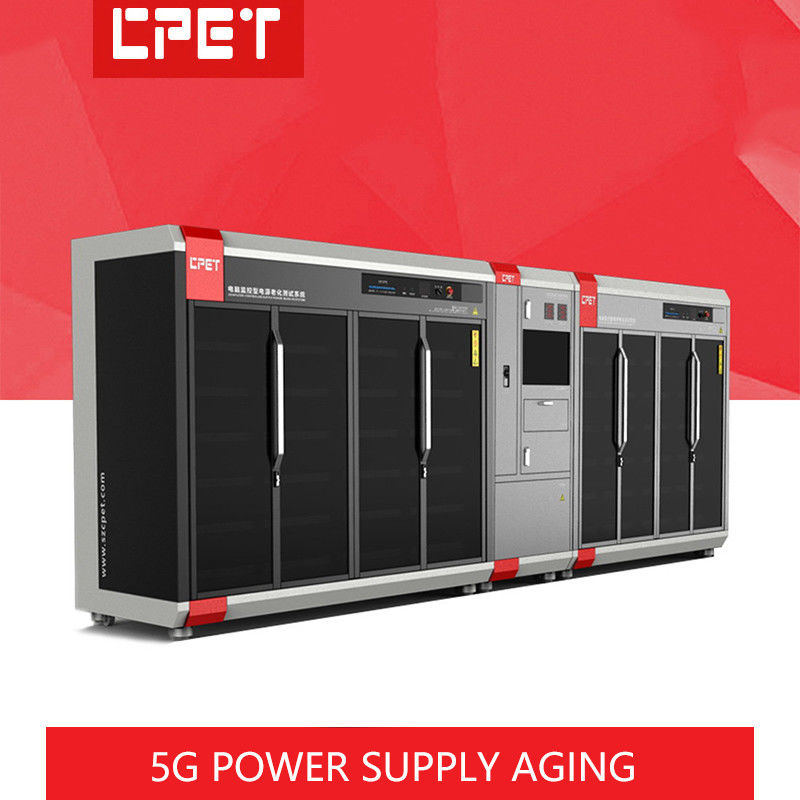

1200W/CH 5g Base Station Communication Power Supply Aging Test Equipment

Name: 1200W/CH 5g Base Station Communication Power Supply Aging Test Equipment
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-5G03
Price: 8800 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-5G03

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 8800dollars/set

Packaging Details: Wooden case packing

Delivery Time: 30 work days

Payment Terms: L/C

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                1200W/CH aging test machine, Power Supply aging test machine, 1200W/CH aging test chamber


Reference Size (DWH):	10006001700mm	Burn-in Test Capacity:	1200W/CH
Guarantee Period:	1year

Reference Size (DWH):	10006001700mm
Burn-in Test Capacity:	1200W/CH
Guarantee Period:	1year

Product Description

5g Base Station Communication Power Supply Aging Test Equipment

Scope of application

It is mainly used to meet the burn-in requirements of 5G communication energy low-voltage three-phase 4KW and single-phase 6KW products, and is compatible with the burn-in test of 2KW and energy board power products to meet the factory test requirements. A single set of burn-in test system includes burn-in cabinet product cabinet (including temperature)control, power distri bution, monitoring, etc.), burn-in distribution cabinet, load system, etc.

Performance parameters

Project	Specification requirements
Reference size (DWH)	D1000mmW600mmH1700mm
Burn-in test capacity	1200W/CH,60CH
Rated working voltage	AC:380VAC/Three-phase+10%/-15%
Rated insulation voltage	690VAC
Rated frequency	50Hz
Rated working current	Input:360A
Operating temperature	5℃-45℃
Output channel specifications	380VAC/Three-phase 60A
Protective function	Support smoke sense, over temperature, and three-color light display status at the same time
Monitoring rate	The refresh interval of digitally collected information in the cabinet needs to be less than 1S
Smoke sensor type	Overhead installation type smoke sense, normally closed point work
Flammability rating	All materials of the cabinet must meet the 99-V0 rating
Temperature rise of power distribution components	Complies with the provisions of IEC 60947-1 on temperature rise, and the temperature rise value does not exceed the corresponding standard requirements of the component
Leakage Protection	The power input of the cabinet must match the power leakage protection function of the equipment. The AC side needs to be installed with a 30mA leakage protection circuit
Monitoring / instruction requirementsc	Equipped with 19-inch LCD display, keyboard and mouse and other interactive components,using a computer to monitor the lower computer
Monitoring / instruction requirementsc	The man-machine interface is used to display the PLC collection temperature, control status, system status, fan running status, DD & DA equipment status, cabinet input AC power and other information in the cabinet. DD & DA status query and setting are monitored by the test monitoring board
