Aging Test Room For High Frequency Charging Equipment Manufacturer Customized

Name: Aging Test Room For High Frequency Charging Equipment Manufacturer Customized
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-300603
Price: 7500 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-300603

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 7500dollars/set

Packaging Details: Wooden case packing

Delivery Time: 30 work days

Payment Terms: L/C

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                200W/CH burn in chambers, Custom burn in chambers, 200W/CH burn in testing


Power Of Single Channel:	200W/CH	Load Mode:	CC+CV
Guarantee Period:	1year

Power Of Single Channel:	200W/CH
Load Mode:	CC+CV
Guarantee Period:	1year

Product Description

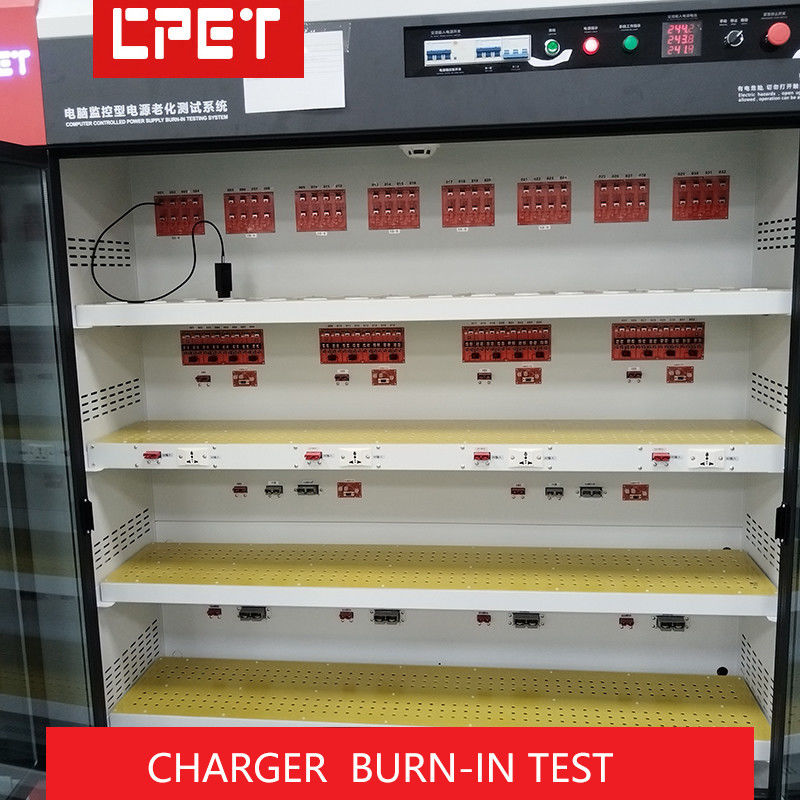

Aging Test Room For High Frequency Charging Equipment Manufacturer Customized

Application Scope

Power sources such as chargers, power adapters, wireless charging, Power Tool Charger,Sweeper Charger,etc.

excellent function

1. Set various load parameters and real-time monitor for parameters such as voltage, current and power by computer software

2. Be of CC/CV load modes

3. Support parallel channel connection under CC load mode and meet the requirements for power extension of products

Performance parameters

Model	CP-300603
Power of single channel	200W/CH
Quantity of load channels	192CH
Scope of load voltage	2-100V
Scope of load current	0.2-10A/CH
Load precision	±(1%+0.1%FS)
Load Model	Energy Saving
Load Mode	CC+CV Mode
Number for plies of product zone	Single side
Height for plies of product zone(mm)	170
Width of products zone(mm)	Series CC mode 340
Temperature control of products zone	Temperature control type of products zone: normal temperature-60℃
Structure material of trolley	Elaborately processed and produced with cold-rolled sheet
Mode of main control	Monitoring software for burn-in of computer-monitoring type power
Input mode of UUT	Multi-purpose socket/speaker wire clip/custom design
Interface mode of UUT	Connecting fixture boards (with various specifications) for first choice/custom design
Customizable fast charge function	QC, PO, FCP, SCP, PPS, etc.
External dimension	20508801900/custom design
