Aging Cabinet 48-position Power Driver Board /LED Light Board Aging Test Equipment

Name: Aging Cabinet 48-position Power Driver Board /LED Light Board Aging Test Equipment
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-3008
Price: 38600 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Certification: CE,ROHS

Model Number: CP-3008

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: ¥38600 yuan

Packaging Details: Packed in wooden cases

Delivery Time: 35 work days

Payment Terms: T/T

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:

Product Size:

2050*880*1900mm

Weight:

400kg

Product Size:	20508801900mm
Weight:	400kg

Product Description

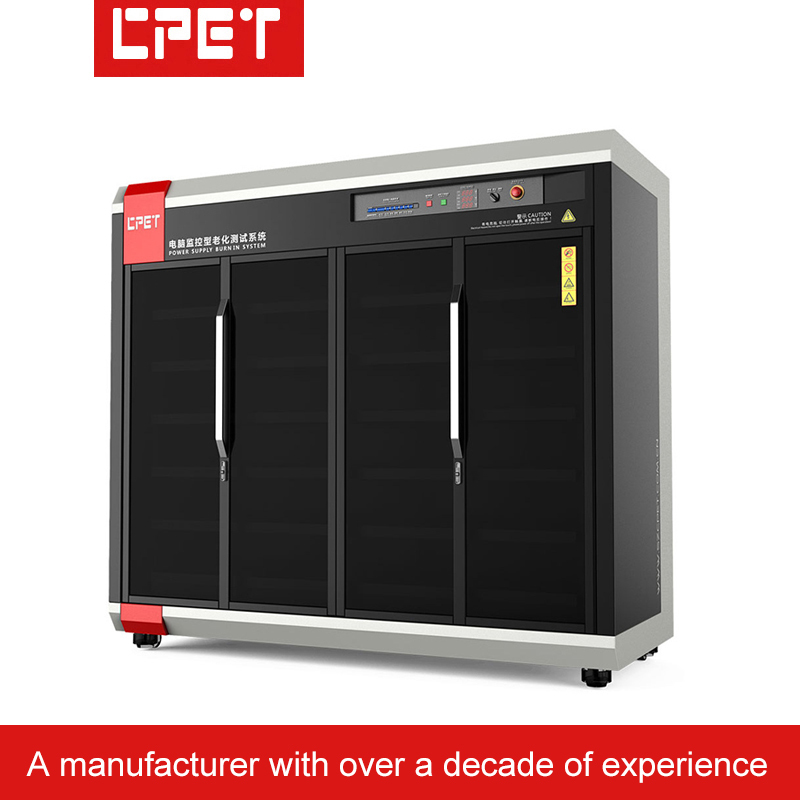

Aging Cabinet 48-position Power Driver Board /LED Light Board Aging Test Equipment

Aging Cabinet 48-position Power Driver Board /LED Light Board Aging Test Equipment 0

Technical parameters

Aging Cabinet 48-position Power Driver Board /LED Light Board Aging Test Equipment 0

1	Introduction to the electronic control and temperature control devices of the power aging trolley:
A	Wiring method:	The DC input terminal is the Anderson terminal
B	Panel function keys:	Input AC voltage display, start switch, emergency stop switch
C	Trolley height:	The product area has 6 floors,height170mm,width 1650mm depth 600mm
D	Heat dissipation method:	The top turbine exhaust fan is of the upper exhaust type
E	The number of aging channels for the entire vehicle:	The LED light board and LED driver board can be aged for 48 sets
F	The temperature control principle of the product area:	Over-temperature exhaust
G	Power distribution and control methods for trolleys:	380V three-phase five-wire power distribution, computer monitoring and manual electrical control
H	Distribution power of trolley:	The maximum power of the product is 360W*48 units /0.85/≒20.0KW. The efficiency of the tested power supply is calculated at 85%
I	Control mode:	The electronic control system features manual/automatic switching and is monitored in real time by a computer during aging
J	Safety protection:	Equipment grounding protection, leakage switch protection, smoke alarm and automatic power-off protection, etc
K	Control cabinet configuration:	(Optional) It can be equipped with a monitoring cabinet, as well as an HP industrial host, Samsung monitor, keyboard, mouse, etc
2	Introduction to the main functions of the system:
A	Applicable to LED light panels and lighting fixtures
B	Free configuration of self-developed power supply aging dedicated monitoring software, with independent intellectual property rights and no legal risks
C	It can monitor the product temperature in real time, automatically cool down and issue early warnings when the temperature exceeds the limit
D	The aging-specific monitoring software enjoys a free upgrade service and has powerful scalability, saving repeated investment in equipment
E	Aging parameters, time setting,ON/OFF timing editing (for the on-off test of the product under test), support for automatic voltage switching, load transformation and other functions are programmable
F	The function of automatically and regularly turning off the power supply when the aging of the tested power supply ends is convenient for unattended operation
G	The RS232 to RS485 conversion adopts a photoelectric isolation converter, which enhances communication reliability and prevents equipment damage from lightning strikes
H	Each computer can simultaneously monitor 18 devices. (Each serial port can be connected to 63 slave devices, and each computer supports a maximum of 18 serial ports.)
I	The power aging monitoring software is equipped with built-in help documentation, facilitating the immediate resolution of operational questions

Layout diagram

Aging Cabinet 48-position Power Driver Board /LED Light Board Aging Test Equipment 0

Aging Cabinet 48-position Power Driver Board /LED Light Board Aging Test Equipment 3

1.The aging cabinet has a total of 6 layers, with 8 heat sinks fixed on each layer. The entire

cabinet can age 48 pieces of driver boards /LED light boards.

2. Install cooling fans on the back of each floor. When the temperature of the radiator

reaches 65℃, turn on the air cooling to lower the temperature. Turn off the fan when the

radiator temperature drops below 60℃. When the ambient temperature reaches 55℃, start

the circulating exhaust.

3. Install one Magmet DC power supply on each floor. A single power supply can support the

aging work of 8 driver boards and LED light boards.
