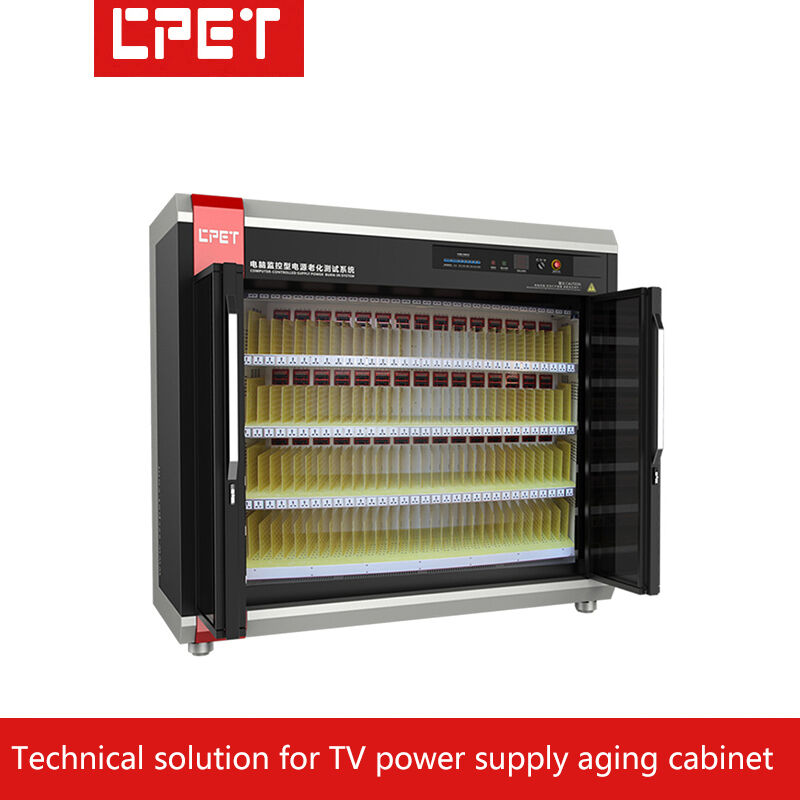

| A | Trolley size(mm): | L2050*W880*H2050 |
|---|
| B | Number of layers: | 4 |
|---|
| C | width: | 320mm |
|---|
| D | Material: | Cold-rolled sheet |
|---|
| E | Heat dissipation method for the load area: | The top turbine exhaust fan is of the upper exhaust type (convenient for ambient temperature control), with the load area isolated from the product area, and the cold and hot air ducts also isolated |
|---|
| F | Interlayer insulation and anti-static methods: | Epoxy insulating board with heat dissipation holes on the surface |
|---|
| G | Layer plate structure form: | The product area is isolated from the load area, and there is an exhaust vent on the top of the cabinet |
|---|
| H | Aluminum alloy visible sliding door structure: | The product area is enclosed with a folding double-layer insulating glass door |
|---|
| I | Others: | Lighting fixtures are installed in the product area of the aging cabinet to facilitate operations |
|---|
| A | Control mode of electronic load module: | RS485 communication mode, upper computer RS232 communication mode |
|---|
| B | Install the model of the electronic load module: | CP8102 (2-500V,0.2-10A/CH) |
|---|
| C | Isolation mode of electronic load module: | The electronic load module channel adopts photoelectric isolation (communication and power supply isolation). |
|---|
| D | The number of electronic load modules installed: | The load area has a total of 8 layers |
|---|
| E | Electronic load loading mode: | In CC/CV/CR/CP/LED modes, channels can be used in parallel in any mode |
|---|
| F | Electronic load design architecture: | No electrolytic capacitors, no relays, long-life design scheme (with independent intellectual property rights) |
|---|
| G | The number of channels of the electronic load module: | 4CH(4channels) |
|---|
| H | Single-pass rated power of the load module: | The power of the 100W/CH single-channel tested power supply is below 100W |
|---|
| I | The number of parallel dual-channel aging products: | Power supply of 100W or less 192 bits |
|---|
| A | Wiring method: | The AC input terminal is a universal card socket (the socket is on the outer side of the front of the shelf board), and the DC adapter board is a speaker clamp + 24-pin terminal block (the DC adapter board is on the middle partition board). The products are placed upright, separated from each other by epoxy boards, and 96 positions are occupied by partition boards |
|---|
| B | Panel function keys: | Input AC voltage display, start switch, emergency stop switch |
|---|
| C | Temperature control accuracy in the product area: | Temperature control range: Room temperature to 55℃, ±5℃ |
|---|
| D | The temperature control principle of the product area: | Low-temperature heating, over-temperature exhaust |
|---|
| E | Power distribution and control methods for trolleys: | 220V three-phase five-wire power distribution; Computer monitoring and manual electronic control |
|---|
| F | Distribution power of trolley: | 100W*192 units /0.80=24KW. The efficiency of the tested power supply is calculated at 80% |
|---|
| G | Control mode: | The electrical control system features manual/automatic switching. During aging, it is monitored in real time by a computer. The control cabinet takes in three-phase 380V and outputs 90V/132V/176V/264V/290V, simultaneously controlling 6 aging cabinets (optional for customers) |
|---|
| H | Thermal insulation device: | The product area is equipped with aluminum alloy frame tempered glass doors and air ducts on both sides |
|---|
| I | Safety protection: | Equipment grounding protection, leakage switch protection, smoke alarm and automatic power-off protection, etc |
|---|
| A | Applicable to TV power supplies LED power supplies, power adapters, chargers, switching power supplies, and industrial control power supplies |
|---|
| B | Free configuration of self-developed power supply aging dedicated monitoring software, with independent intellectual property rights and no legal risks |
|---|
| C | The output terminal voltage, current and power parameters are monitored by using programmable electronic load modules |
|---|
| D | The aging-specific monitoring software enjoys a free upgrade service and has powerful scalability, saving repeated investment in equipment |
|---|
| E | Aging parameters can be set for the entire vehicle, the entire layer, and individual products |
|---|
| F | Aging parameters, time setting,ON/OFF timing editing (for the on-off test of the product under test), support for automatic voltage switching, load transformation and other functions are programmable |
|---|
| G | The function of automatically and regularly turning off the power supply when the aging of the tested power supply ends is convenient for unattended operation |
|---|
| H | The computer automatically displays the quality of the tested power supply products. The window shows multiple vehicles for centralized management, saving operators and improving production efficiency |
|---|
| I | The computer can store the aging data report of the tested power supply, and the process parameters of the tested power supply are easy to trace. In addition, it features barcode scanning and supports MES system upload |
|---|
| J | RS485 employs photoelectric isolation converters to enhance communication reliability and prevent equipment damage from lightning strikes |
|---|
| K | Each computer can simultaneously monitor 18 devices. (Each serial port can be connected to 63 slave devices, and each computer supports a maximum of 18 serial ports.) |
|---|
| L | The power aging monitoring software is equipped with built-in help documentation, facilitating the immediate resolution of operational questions |
|---|
