Burn In Test Equipment For Vehicle Power Supply Assemblies15kW-OBC

Name: Burn In Test Equipment For Vehicle Power Supply Assemblies15kW-OBC
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-ZC3003
Price: 98500 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Certification: CE,ROHS

Model Number: CP-ZC3003

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: ¥ 98500 yuan

Packaging Details: Wooden box packaging

Delivery Time: 30 work days

Payment Terms: T/T,D/A

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                    15kW OBC burn-in test equipment, vehicle power supply assembly burn-in tester, 15kW OBC burn-in testing system


Power Rating:	≥100 KW Per Aging Cabinet	Power Current:	≥200 A Per Aging Cabinet
Power Grid:	Three-phase Five-wire System (L1, L2, L3, N, PE)	Communication Method:	RS232 / RS485 / CAN

Power Rating:	≥100 KW Per Aging Cabinet
Power Current:	≥200 A Per Aging Cabinet
Power Grid:	Three-phase Five-wire System (L1, L2, L3, N, PE)
Communication Method:	RS232 / RS485 / CAN

Product Description

Technical solution for two-in-one power supply assembly aging test equipment (energy-saving feedback type) 16CH/15kW-OBC 3.2kW-DCDC water-cooled & air-cooled two-in-one temperature control type

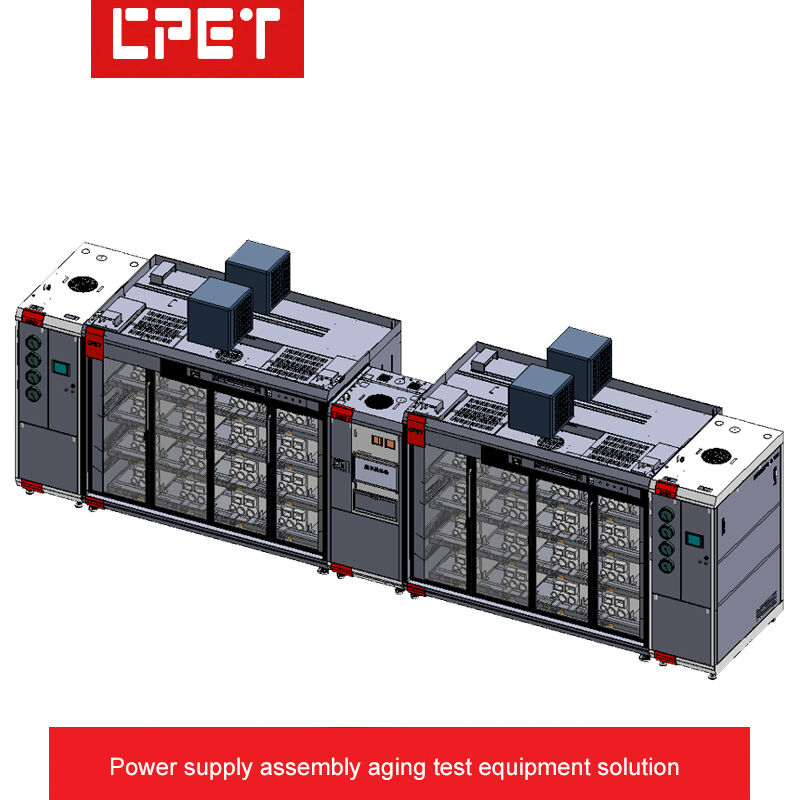

The system is composed of 1 control cabinet, 2 aging cabinets and 2 water temperature cabinets The heat dissipation of the system is all accomplished by water cooling The electrical control and power distribution take into account the balance of the three phases The bidirectional source load of key components adopts a three-phase power grid to ensure three-phase balance It is equipped with multiple protections such as overcurrent, leakage, smoke detection, water immersion, over-temperature, over-voltage and emergency stop
Technical parameters

Aging Capability – System:
Item	Content	Remarks
System Power Distribution	Contactor + circuit breaker, layer-by-layer miniature breaker	Layer-by-layer control
Power Grid	Three-phase five-wire system (L1, L2, L3, N, PE)	/
Power Rating	≥100 kW per aging cabinet	Instantaneous surge power considered
Power Current	≥200 A per aging cabinet	Inrush current considered
System Protection	Overcurrent, leakage, overtemperature, smoke detection, water immersion, emergency stop, pressure hold, water pressure, overload, phase sequence	/
Alarm Method	Audible & visual alarm, remote network	/
CAN Control Board	Meets national standard CC/CP requirements; 8× ZLG CANFDNET-400U CAN communication cards; 16-channel TP-Link TL-SG2016D switch	/
Communication Method	RS232 / RS485 / CAN	Twisted-pair shielded CAN cable
System Monitoring	Grid voltage, current, operating status indicator lights	/
Aging Capability – Electrical:
Item	Content	Remarks
Auxiliary Power Supply	8–30 V / 10 A / 300 W	/
AC Terminal	Three-phase PP45 6P (NaBaichuan); single-phase PP45 4P (NaBaichuan)	/
High-Voltage DC Terminal	SB50A and SB120A connected in parallel	/
Low-Voltage DC Terminal	SB175A	/
Signal Terminal	24-pin port	/
Conversion Efficiency	≥95% @ OBC, ≥88% @ DCDC, ≥92% @ DCAC	Maximum value; 4% higher than competitors; saves an extra 35,000 kWh per set per year
Comprehensive Recycling Efficiency	≥80%	Product efficiency >90%
Control Accuracy	1% + 0.5% FS	Voltage and current doubled
Display Accuracy	1% + 0.5% FS	Voltage and current doubled
Water Temperature Cabinet:
Item	Content	Remarks
Water Temperature Range	4°C – 85°C	/
Water Temperature Accuracy	±2°C	/
Cooling Capacity	4 kW per channel, 16 kW per cabinet	/
Compressor Horsepower	3 HP	/
Water Pressure	0.05–0.2 MPa	/
Air Pressure	3 kg (low), 7 kg (high)	/
Flow Rate	3–20 L	/
Flow Control Channels	4 channels	Unified temperature control
Water Nozzle Direction	90° downward	/
Electrical Power	10 kW (max)	/
Filter Screen	Filter screen at the water inlet, easy to clean	/
Screw Compressor & Cooling Tower:
Item	Content	Remarks
Cooling Capacity	500 kW	Screw compressor 250 kW, cooling tower 500 kW
Operating Power	100 kW	/
Power Supply	Three-phase five-wire	/
Air Handling Unit:
Item	Content	Remarks
Cooling Capacity	20 kW	/
Airflow	3500 m³/h	/
Power	1.1 kW	/
