Outdoor Energy Storage Power Supply Charge And Discharge Aging Test Equipment

Name: Outdoor Energy Storage Power Supply Charge And Discharge Aging Test Equipment
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-CN01
Price: 8000 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-CN01

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 8000dollars/set

Packaging Details: Wooden case packing

Delivery Time: 45 work days

Payment Terms: L/C

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                Energy Storage Power Supply aging test equipment, 350mm aging test equipment, burn in chamber


Trolley Height:	350mm	Trolley Structure Material:	M Thick Cold Rolled Sheet
Install Energy Consumption Module Model:	CP8118	Energy Recovery Module Control Method:	RS485 Communication Mode, Upper Computer RS232 Communication Mode
Layer Insulation And Anti-static Method:	Epoxy Insulation Board With Heat Dissipation Holes On The Surface	External Dimension (LWH):	L2050W880H2050mm (size Of A Single Burn-in Cabinet)

Trolley Height:	350mm
Trolley Structure Material:	M Thick Cold Rolled Sheet
Install Energy Consumption Module Model:	CP8118
Energy Recovery Module Control Method:	RS485 Communication Mode, Upper Computer RS232 Communication Mode
Layer Insulation And Anti-static Method:	Epoxy Insulation Board With Heat Dissipation Holes On The Surface
External Dimension (LWH):	L2050W880H2050mm (size Of A Single Burn-in Cabinet)

Product Description

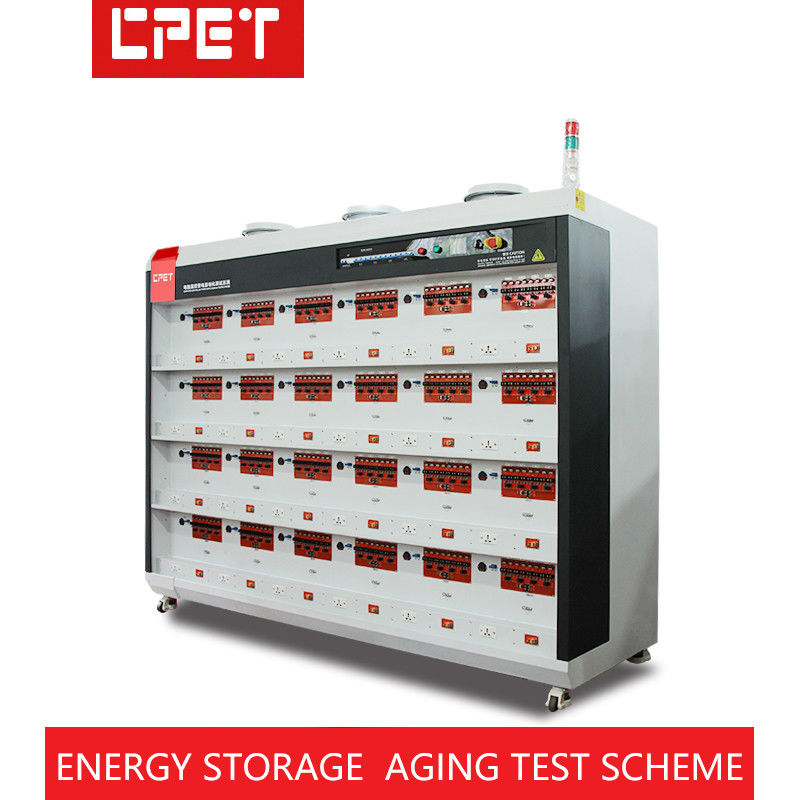

Outdoor Energy Storage Power Supply Charge And Discharge Aging Test Equipment

Outdoor Energy Storage Power Supply Charge And Discharge Aging Test Equipment 0

excellent function

1. Charge Control System Software control program-controlled power supply, freely set voltage to charge energy storage power supply.

2. Charge monitoring system The software can monitor the voltage and current in the process of charging the energy storage power supply by the program-controlled power supply and calculate the charging power.

3. AC discharge monitoring system Monitor the voltage and current parameter specifications when the AC output of the energy storage power supply is discharged.

4. AC to DC system By monitoring the AC output parameters, the load value of the back-end DC load is automatically calculated and set.

5. Fast charge deception function Support QC/PD fast charge function.

6. DC discharge monitoring system Monitor the voltage and current parameter specifications when the DC output of the energy storage power supply is discharged.

7. Calculation of charge and discharge capacity The capacity range can be judged, for example, when the cut-off discharge capacity reaches the set value, the burn-in can be stopped or the next project can be executed.

8. Multiple load combinations Support multiple load combinations to configure the burn-in cabinet.

Performance parameters

Burn-in cabinet structure and Burn-in quantity planning	Trolley size (mm)	L2050W880H2050mm (size of a single Burn-in cabinet)
	Number of trolley layers	4 layers, product area depth 400mm, (12 Burn-in positions per layer)
	Trolley height	350mm
	Trolley structure material/appearance color	2.0mm thick cold rolled sheet, computer white
	Load area cooling method	Top turbine exhaust fan top row type (easy to control the ambient temperature)
	Layer insulation and anti-static method	Epoxy insulation board with heat dissipation holes on the surface
	Overall burn-in room structure	Adopt mobile Burn-in split cabinet; beautiful appearance and easy to move and combine
