Custom Energy Storage Power Aging Test Frame with Trolleys

Name: Custom Energy Storage Power Aging Test Frame with Trolleys
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-9002
Price: 58600 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Certification: CE,ROHS

Model Number: CP-9002

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: ¥ 58600 yuan

Packaging Details: wooden box package

Delivery Time: 35 work days

Payment Terms: T/T

Supply Ability: 30 sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                custom energy storage test frame, power aging test equipment with trolleys, energy storage test frame trolley


Guarantee Period:	One Year	Material:	Cold-rolled Sheet
Item Number:	CPMT-9002	Is Customization Supported:	Yes

Guarantee Period:	One Year
Material:	Cold-rolled Sheet
Item Number:	CPMT-9002
Is Customization Supported:	Yes

Product Description

Energy Storage Power Supply Charge And Discharge Aging Test Frame

Product Specifications

Guarantee Period	One year
Material	Cold-rolled sheet
Item Number	CPMT-9002
Customization Supported	Yes

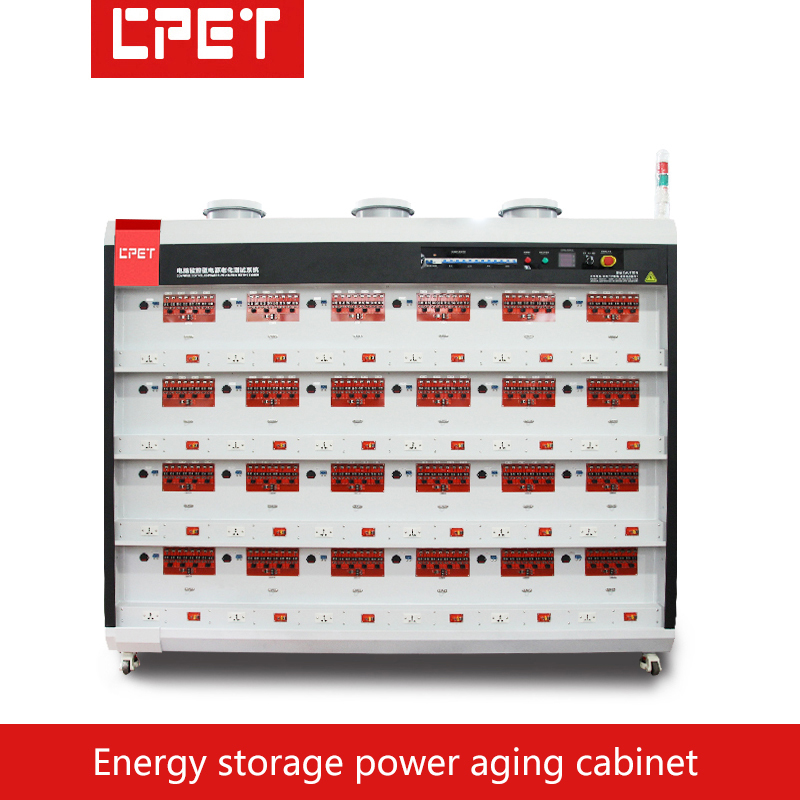

The aging cabinet features a flexible trolley-based design without fixed product areas, allowing for convenient operation. Key dimensions include:

Aging cabinet: 2050mm (L) × 750mm (W) × 1900mm (H)
Small trolley: 1000mm (L) × 500mm (W) × 1300mm (H)
3-layer configuration with 9 products per trolley
Each cabinet accommodates 2 trolleys (18 products total)

Technical Parameters

Aging Trolley Structure

A	Trolley size	Custom dimensions based on customer requirements
B	Number of levels	3 levels with 6 product positions each
C	Trolley height	Designed for use with trolley (no fixed product area)
D	Material	Cold-rolled sheet
E	Heat dissipation	Open type with no ambient temperature heating function

Configuration & Aging Capacity

A	Control mode	Automatic/manual switch control
B	Power supply configuration	1 programmable power supply with 9 DC power supplies (5V-60V/50A/3000W each) 18 DC isolated electronic loads CP8104 (1-500V/0.05-10A/CH) 9 sets of AC feedback loads (90-260VAC/50A/3200W/1CH) 18 fast charging modules CP2119 (supports QC4.0, PD3.1, FCP, SCP protocols)
C	Rechargeable products	18 energy storage power supplies (≤3200W capacity)
D	Data acquisition	AC/DC acquisition card for monitoring current and voltage

Electrical Control & Safety Features

A	Wiring method	Anderson terminals + Type-C + AC output pin tail + DC output terminals
B	Panel functions	AC voltage display, start switch, emergency stop
C	Power distribution	380V three-phase five-wire with computer monitoring
D	Safety protection	Grounding, leakage protection, smoke alarm with auto power-off

System Functions

Specialized for energy storage power supply aging
Generates voltage/current data curves from charge/discharge cycles
Custom monitoring software with free upgrades and scalability
Programmable aging parameters with automatic voltage/load switching
Automatic power-off at aging completion for unattended operation
Computerized quality display with centralized multi-vehicle management
Data storage and traceability with barcode scanning and MES support
Each computer can monitor up to 18 devices simultaneously

Key Advantages

Flexible trolley-based design for efficient operation
Comprehensive safety protection systems
Advanced monitoring and data collection capabilities
Customizable configuration to meet specific testing requirements
