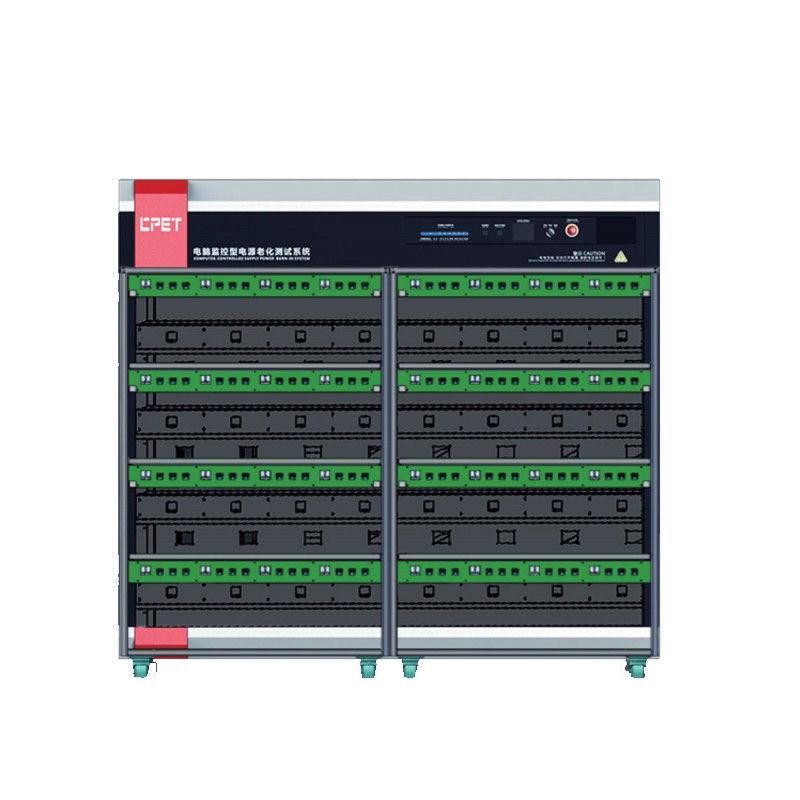

Portable Energy Storage Power Supply Machine Discharge Burn In Test Equipment

Name: Portable Energy Storage Power Supply Machine Discharge Burn In Test Equipment
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-CNF01
Price: 8500 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-CNF01

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 8500dollars/set

Packaging Details: Wooden case packing

Delivery Time: 40 work days

Payment Terms: L/C

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                4 layers aging test machine, aging test machine, burn in equipment


Warranty:	A Year	Trolley Size (mm):	L2050W700H2050mm (size Of A Single Burn-in Cabinet)
Number Of Trolley Layers:	4 Layers

Warranty:	A Year
Trolley Size (mm):	L2050W700H2050mm (size Of A Single Burn-in Cabinet)
Number Of Trolley Layers:	4 Layers

Product Description

Portable Energy Storage Power Supply Machine Discharge Burn-In Test Equipment

Outstanding functions

1. AC/DC discharge monitoring system

2. Monitor the voltage and current specifications of the AC output discharge of the energy storage power

3. Automatically calculate and set the back-end DC load pulling value by monitoring the AC output parameters

4. Fast decoy function

5. Monitor the voltage and current parameters of the DC output discharge of the energy storage power

6. Calculation of discharge capacity

7. It can support capacity range determination, such as setting cut-off discharge capacity to stop aging or execute the next project when it reaches the set value

8. A variety of load combination pull, support a variety of load combination configuration burn-in cabinet fast charging decoy function: support QC/PD fast charging function

9. DC discharge monitoring system: monitors the voltage and current parameters of the DC output discharge of the energy storage power supply

10. Discharge capacity calculation: can support the capacity of the range of determination,such as setting the cut-off discharge capacity to reach the set value can stop burn-in or execute the next project

Performance parameters

Burn-in cabinet structure and Burn-in quantity planning	Trolley size (mm)	L2050W700H2050mm (size of a single Burn-in cabinet)
	Number of trolley layers	4 layers, product area depth 400mm, (12 Burn-in positions per layer)
	Trolley height	350mm
	Trolley structure material	thick cold rolled sheet
	Load area cooling method	Top turbine exhaust fan top row type (easy to control the ambient temperature)
	Layer insulation and anti-static method	Epoxy insulation board with heat dissipation holes on the surface
	Overall burn-in room structure	Adopt mobile Burn-in split cabinet; beautiful appearance and easy to move and combine
Introduction to energy recovery module configuration, power of the tested power supply and Burn-in quantity	Energy recovery module control mode	RS485 communication mode, upper computer uses RS232 communication mode
	Install the power module model	CP8401/CP8104
	Number of energy-consuming load modules installed	Each layer has 6 4CH modules, and 24 modules need to be installed in the whole burn-in cabinet
	Install the energy recovery module model	CP8401+CP5301
	Energy recovery module isolation mode	Electronic load module channel adopts photoelectric isolation (communication and power supply isolation)
	Energy recovery module design architecture	No relay, long-life design scheme (independent intellectual property rights)
	Number of burn-in products in the whole cabinet	24 energy storage power supplies with eight DC outputs (50W/100V/5A) and AC outputs (220V/500W) are aged in one cabinet
