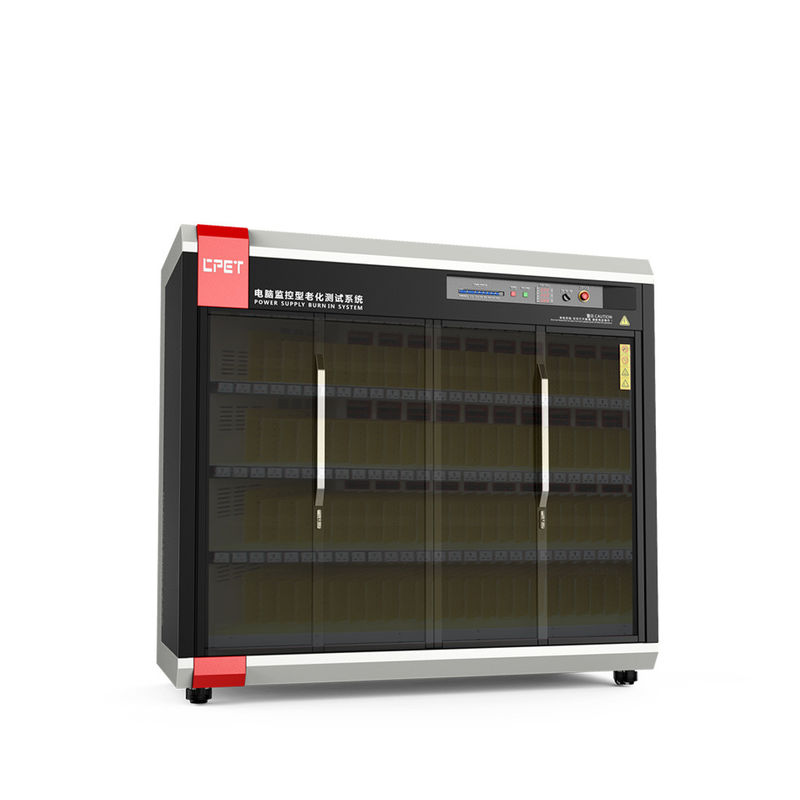

Charger Power Adapter And Bluetooth Headset Supply Aging Test Machine Equipment

Name: Charger Power Adapter And Bluetooth Headset Supply Aging Test Machine Equipment
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-300802
Price: 7600 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Certification: CE,ROHS

Model Number: CP-300802

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 7600dollars/set

Packaging Details: Wooden case packing

Delivery Time: 30 work days

Payment Terms: L/C

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                Charger Power Adapter aging test machine, Bluetooth Headset aging test machine, 150W/CH aging test system


Power Of Single Channel:	150W/CH	Weight:	400kg
Guarantee Period:	12 Months	Load Precision:	±(1%+0.1%FS)

Power Of Single Channel:	150W/CH
Weight:	400kg
Guarantee Period:	12 Months
Load Precision:	±(1%+0.1%FS)

Product Description

Charger power adapter or Bluetooth headset supply aging test machine equipment

Application Scope

Power sources such as chargers, power adapters, wireless charging, Power Tool Charger,

Sweeper Charger,etc.

excellent function

1. Set various load parameters and real-time monitor for parameters such as voltage,

current and power by computer software

2. Support parallel channel connection under CC load mode and meet the requirements for

power extension of products

3. Be of built-in over-temperature and smoke-alarming automatic protection device

4. Be of editable switch sequence and load conversion function

5. Cooperate with monitoring software of power burn-in, for application

6. Interface of multiple DC adapter plates can meet the demands for different output

interface products

7. Be of optional multiple laminate structures at products zone and meet the requirements

for more convenient operation of different products

8. Be of automatic voltage switching function (optional)

9. Be of temperature monitoring function at products zone (optional)

Performance parameters

Model	CP-300602	CP-300802	CP-301002
Power of single channel	200W/CH	150W/CH	65W/CH
Quantity of load channels	192CH	192CH	192CH
Scope of load voltage	2-100V	2-100V	2-100V
Scope of load current	0.2-10A/CH	0.2-10A/CH	0.2-10A/CH
Load precision	±(1%+0.1%FS)	±(1%+0.1%FS)	±(1%+0.1%FS)
Load Model	Energy Saving	Energy Saving	Energy Saving
Load Mode	CC+CV Mode	CC+CV Mode	CC+CV Mode
Number for plies of product zone	Single side	Single side	Single side
Height for plies of product zone(mm)	170
Width of products zone(mm)	Series CC mode 340
Temperature control of products zone	Temperature control type of products zone: normal temperature-60℃
Structure material of trolley	Elaborately processed and produced with cold-rolled sheet
Mode of main control	Monitoring software for burn-in of computer-monitoring type power
Input mode of UUT	Multi-purpose socket/speaker wire clip/custom design
Interface mode of UUT	Connecting fixture boards (with various specifications) for first choice/custom design
Customizable fast charge function	QC, PO, FCP, SCP, PPS, etc.
External dimension	20508801900/custom design
