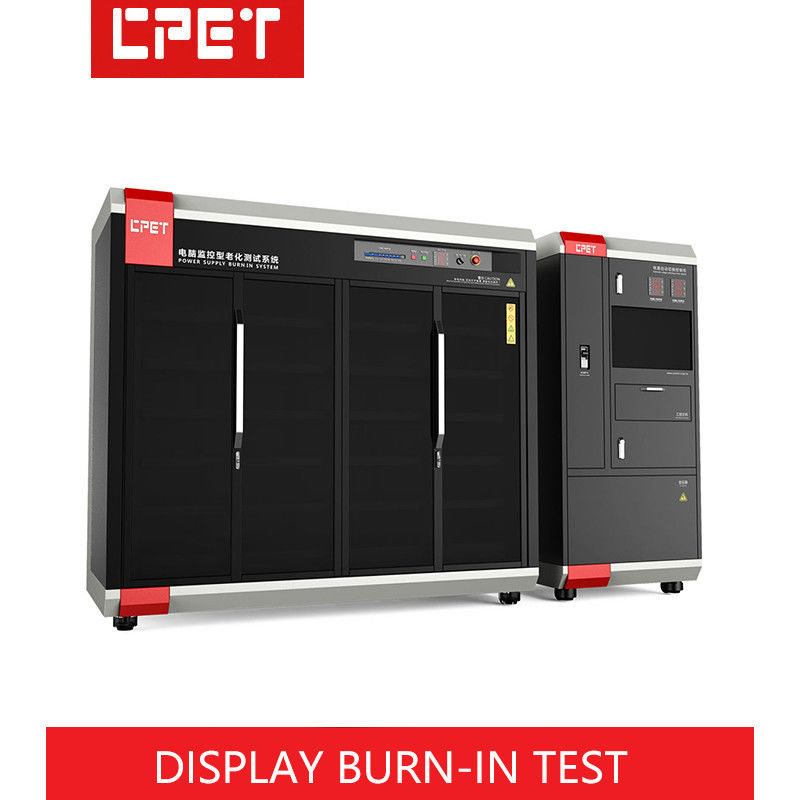

Automotive Center Console Display System Screen Burning Aging Test Cabinet

Name: Automotive Center Console Display System Screen Burning Aging Test Cabinet
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-5012
Price: 7800 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-5012

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: 7800dollars/set

Packaging Details: Wooden case packing

Delivery Time: 30 work days

Payment Terms: L/C

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                Burning Aging Test Cabinet, Display System Screen Aging Test Cabinet, Display System Screen aging test equipment


Number Of Car Layers::	6	Car Size (mm) ::	L2050W880H1900
Weight:	400kg

Number Of Car Layers::	6
Car Size (mm) ::	L2050W880H1900
Weight:	400kg

Product Description

Automotive Center Console Display System Screen Burning Aging Test Cabinet

System architecture

Performance parameters

1	Introduction to the appearance and structure of the power aging trolley:
A	Car size (mm) :	L2050W880H1900
B	Number of car layers:	6
C	Height of truck:	170mm
D	Truck structure material:	Cold-rolled sheet
E	Load area heat dissipation mode:	Top turbine exhaust fan up-row (easy ring temperature control)
F	Interlayer insulation and anti-static mode:	Epoxy insulating board with heat dissipation holes on the surface
G	Truck structure form:	The product area is isolated from the load area, and the top of the cabinet is provided with an air vent
H	Aluminum alloy visual sliding door structure:	Product area closed, folding glass door
I	Others:	Lighting is installed on each floor of the product area of aging cabinet for easy operation
