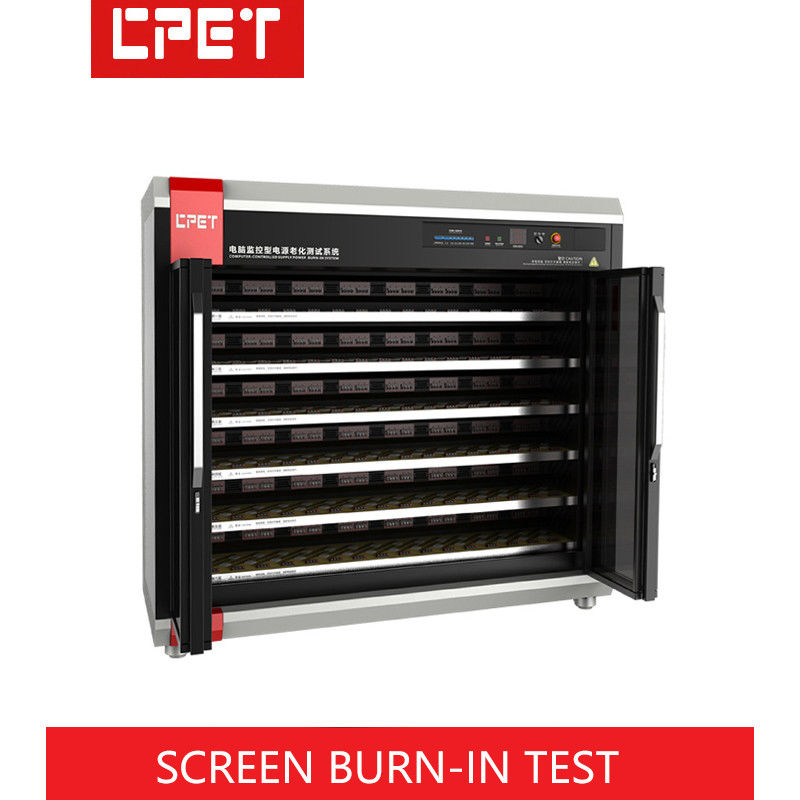

TV Panel Computer Monitor Display Screen Power Aging Test Rack Manufacturer

Name: TV Panel Computer Monitor Display Screen Power Aging Test Rack Manufacturer
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-501202
Price: 7800 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-501202

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: 7800dollars/set

Packaging Details: Wooden case packing

Delivery Time: 30 work days

Payment Terms: L/C

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                6 layers burn in test equipment, Screen Power burn in test equipment, Screen Power burn in equipment


Warranty Period:	One Year Free Warranty	Height Of Truck::	170mm
Weight:	400kg

Warranty Period:	One Year Free Warranty
Height Of Truck::	170mm
Weight:	400kg

Product Description

TV Panel Computer Monitor Display Screen Power Aging Test Rack Manufacturer

System architecture

Performance parameters

1	Introduction to the appearance and structure of the power aging trolley:
A	Car size (mm) :	L2050W880H1900
B	Number of car layers:	6
C	Height of truck:	170mm
D	Truck structure material:	Cold-rolled sheet
E	Load area heat dissipation mode:	Top turbine exhaust fan up-row (easy ring temperature control)
F	Interlayer insulation and anti-static mode:	Epoxy insulating board with heat dissipation holes on the surface
G	Truck structure form:	The product area is isolated from the load area, and the top of the cabinet is provided with an air vent
H	Aluminum alloy visual sliding door structure:	Product area closed, folding glass door
I	Others:	Lighting is installed on each floor of the product area of aging cabinet for easy operation
2	The configuration of the electronic load module, the power of the measured power supply and the aging quantity are introduced
A	Electronic load module control mode:	RS485 communication mode, host computer RS232 communication mode
B	Programmed power supply:	Each layer is configured with 1 programmable power supply: 0-36V/1800W,10A/ bit
C	Number of programmed power supplies installed:	The whole vehicle is equipped with 6 programmed power supplies, which can supply power to 30PCS products
3	Electric control and temperature control device of power aging trolley:
A	Connection mode:	AC input with small speaker clip, 16-pin power plug connection cable (customer supply), DC input: audio input 3.5*1.5 female base
B	Panel function keys:	Input AC voltage display, start switch, emergency stop switch
C	Product area temperature control accuracy:	The product area is closed, with folding glass doors, temperature control range: room temperature to 70℃±5℃
D	Product area temperature control principle:	Low temperature heating, over temperature exhaust
E	Trolley power distribution and control mode:	380V three-phase five-wire distribution; Computer monitoring and manual electrical control
F	Trolley power distribution:	1800W*6 sets /0.8≒18KW, the measured power efficiency is calculated at 80%
G	Control mode:	Electric control includes manual/automatic switching, which is monitored by the computer in real time when aging
H	Security protection:	Equipment grounding protection, leakage switch protection, smoke alarm automatic power off protection, etc
