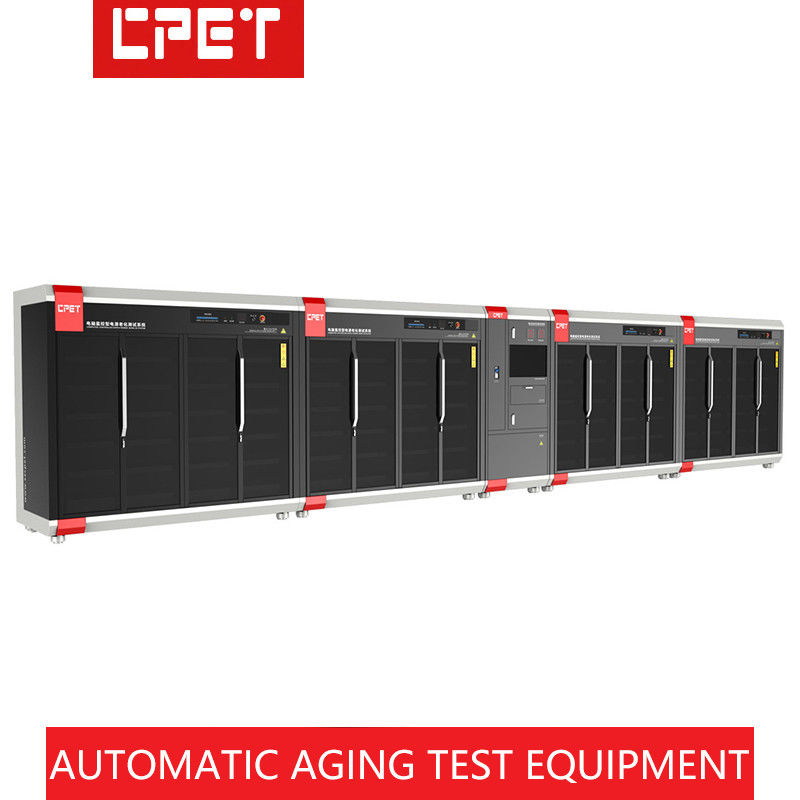

Automatic Aging Test Equipment For TV Power Supply Photovoltaic Inverter

Name: Automatic Aging Test Equipment For TV Power Supply Photovoltaic Inverter
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CPET-AT3888S03
Price: 32000 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CPET-AT3888S03

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 32000dollars/set

Packaging Details: Wooden case packing

Delivery Time: 48 work days

Payment Terms: L/C

Supply Ability: 1sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                Automatic aging test chamber, Photovoltaic Inverter aging test chamber, TV Power Supply aging test system


Warranty:	1 Year	Equipment Size:	1300200270cm
Equipment Weight:	3000kg

Warranty:	1 Year
Equipment Size:	1300200270cm
Equipment Weight:	3000kg

Product Description

Automatic Aging Test Equipment For TV Power Supply Photovoltaic Inverter

Scope of application

LED power supply, new energy OBC, PC power supply, server power supply, TV power supply, photovoltaic inverter, high-power industrial power supply, etc.

Outstanding functions

1. Automatic operation mode, per hour capacity more than 1500 PCS

2. Automatic high pressure test, ATE test, burn-in test

3. Integration testing, no need to turn over, improve degree of automation

4. Multiple test station, save space, real-time monitoring, has the functions such as abnormal alarm stop

5. Commonality use, DC products with or without wire are applicable, the operation is simple and convenient,Using a large number of manipulator or transfer machine to replace artificial, high efficiency, for the expensive department, promote efficiency of up to 50%

Performance parameters

Basic information Model	Equipment Model	CPET-AT3888S
	Units Per Hour(UPH)	1600PCS/H or 56PCS/H
	Product Power	5W~65W/CH or 1000W~3000W/CH
	Equipment Size	L=13000MM,W=2000MM,H=2700MM
	Equipment Weight	Around 3000kg
Related Information of Burn-in line	Burn-in Room Capacity	3888PCS or 280PCS
	Burn-in Time	2H
	Burn-in Ply Number	9 floors
	Transfer mode	Similar with the burn-in mode of tridimensional storage/manipulator transportation/connector contact
Burn-in Line Temperature Control system	Cooling Circulation Mode	Forced air cooling:fan+frequency convertwe+air duct
	Control Scope and Precision	The temperature control scope:adjustable from room temperature to 60°C.The control precision is ±5°C
	Temperature Rise Rate	Able to rise to more than 45°C in 20 minutes
Burn-in Line Electronic Control system	Product and Load Properties	Optional
	Load Properties	Optional
	Burn-in Voltage Input	Support up to 6 voltages
	Protection and Alarm	control power supply independently and added with protection and equpment including overheating and overload protection,earth leak
	Hardware Demand Description	Independent computer host, display burn-instate, monitor output should be voltage, current,power and soon
	Software Monitor Demand	Compile different Burn-in programs according to different products,realize voltage switching, impact, switching cycle, current setting, tem perature setting and other parameters
	Burn-in Management Demand	The OK and NG judgment monitoring interface can directly understand that the data can be saved according to the required data format (TXT,EXCEL), which is convenient for query and download
Test Station Related Information	Test Station Types	Install the product + electrified initial test + high voltage +ATE+ Burn-in +ATE+ take the product, automatic test Burn-in system, Unit combina
	Test Mode	Optional
	Test Data Processing	Optional
	Test Instruments	Optional
	Connection Mod	Optional
Burn-in & Test Jig	Jig Size	L500W300H30MM3 18 bits per vehicle or customized
	Interface Mode	AC: Universal socket; DC: USB or conventional DC female socket or customized
	The Commmon Usage	Shared by burn-in and test
	Weright	1.5kg
Main Electric Control System	Protection Equipment	Possessing independent and segmentation main switches.Having independent ground protection and electricity leakage protection
	Power Demands	According to the actual planning
	Air source requirements	5-8KGF/CM3
