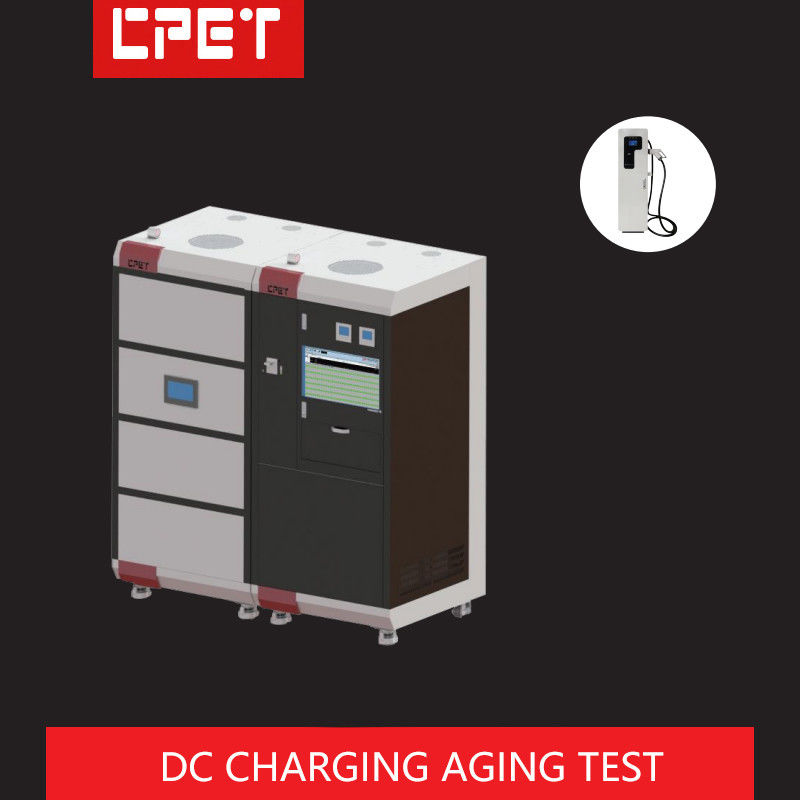

Floor Standing DC Charging Station Burn In Test Equipment Support Customization

Name: Floor Standing DC Charging Station Burn In Test Equipment Support Customization
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-DC09
Price: 10000 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Certification: CE,ROHS

Model Number: CP-DC09

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 10000dollars/set

Packaging Details: Wooden case packing

Delivery Time: 40 work days

Payment Terms: L/C

Supply Ability: 25sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                DC Charging Station Burn In Test Equipment, 500kW Burn In Test Equipment, Custom burn in test chamber


Feedback Power:	500kW	Input Power:	600kW
Warranty Period:	1 Year	Volume Size:	8808601900mm

Feedback Power:	500kW
Input Power:	600kW
Warranty Period:	1 Year
Volume Size:	8808601900mm

Product Description

Floor Standing DC Charging Station Burn-In Test Equipment Support Customization

Architecture diagram

Performance parameters

System	System structure	1 control cabinet + 6 load cabinets
	Overall size	58008602050mm
	Total floor area	5800*1800mm(including operation area)
	Total input voltage	Three-phase five-wire system 220Vac (rated)
	Total input current	200A*6
	Total input power	100kW*6
	Application ambient temperature	0-40℃
	Application environment humidity	0-95%
	Fire protection requirements	Materials meet UL 94V0 rating
	Environmental requirements	Materials comply with Rohs, WEEE requirements
	Safety requirements	Comply with IEC62368 international standard design requirements
Burn-in cabinet	Burn-in bits/cabinet	16 bits/cabinet
	Burn-in bits/layer	4 bits/layer
	Burn-in product power	150kW/bit
	Burn-in product input voltage	380Vac/Three Phase
	Burn-in product input current	250A/bit
	Burn-in Product Load Category	132kW/bit
	Burn-in product load current	100-1000Vdc
	Auxiliary voltage of Burn-in products	430A/bit 250A/bit
	AC Connector Type	PA350 (L1/ L2/ L3/N/PE)
	DC Connector Type	REMA630 GB DC Charging Gun Holder
	Signal Connector Type	RJ45
	Bit Status Indicator	No
	Input power	600kW
	Feedback power	500kW
	Volume size	8008002050mm
	Air duct direction	Forward wind, upward wind
	Cooling method	Air cooling
	Material	1.5mm cold rolled sheet
Monitoring software	Display running information	Input voltage, current, power, output voltage(DC source module communication or product communication)
	Show status information	Not Connected / Vacant / Passed / Under Voltage / Under Current / Over Voltage / Over Current / No Output / Protection
	Display accuracy	±(1%+0.2%FS)
	Control precision	±(1%+0.2%FS)
	Bad way of reporting	Audible alarm
	Report format	CSV format
	Statistics	Yield/CPK/Time Distribution
	MES docking	Support
	Scan speed	5S
Control cabinet	Control system	Window 10
	Display medium	Computers and Monitors
	Manipulating medium	Mouse and keyboard
	Communication method	Cable
	Type of protection	Over current, leakage, over temperature, smoke, emergency stop
	Alarm method	Sound and light alarm, remote network
	Heat dissipation type	Air cooling
	Maintenance mode	Post maintenance
	Material	1.5mm cold rolled sheet
	Volume size	8808601900mm
