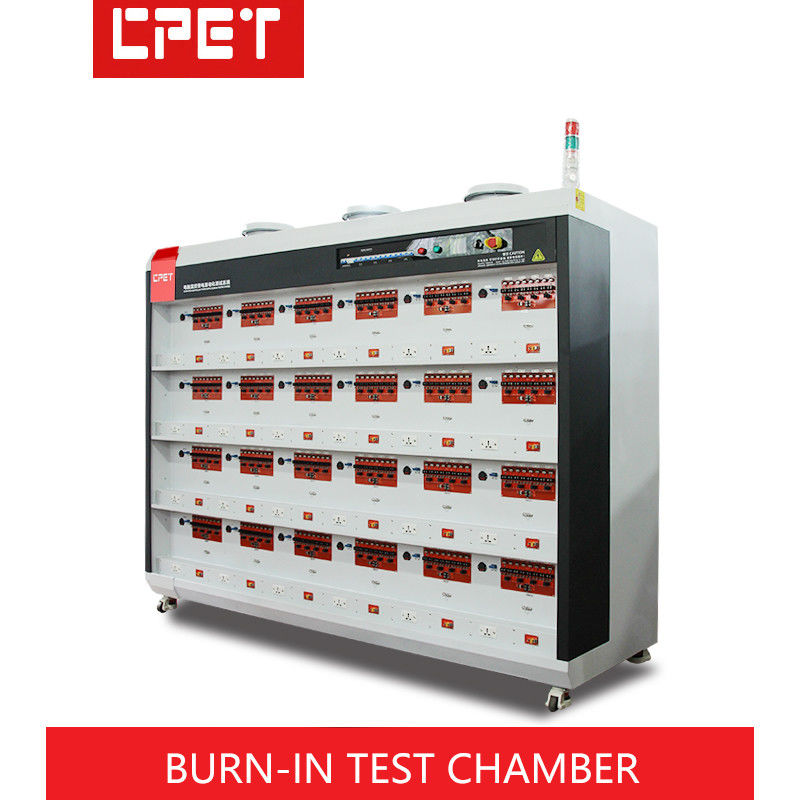

Aging Test Of Energy Storage Power Supply Standby Storage Charging Station

There is no product area, combined with cart use. Customized according to customer needs

The actual use of the trolley is easy to operate, the overall design of the aging cabinet is open, no temperature control

1, 230KVA transformer configuration, input 380V, output 110V/220V two groups of voltage switching, can simultaneously control 4 sets of aging equipment (charging power according to 1500W configuration)

2, program control power supply, configure 2 DC power supply: meet the voltage 10V~120V linear adjustment, 200A; The total current of a single point does not exceed 16A

3. A single aging cabinet is configured with 48 DC isolated energy-saving loads; 1-500V/0.5-10A/CH, 100W/CH, 4CH (4 channels), total 400W

4. A single aging cabinet is configured with CP8402/12 bits; Load 6400W, 12 grid-connected inverters, 6600W

5. A single aging cabinet is configured with CP2119/24 units; (CP2119 supports QC4.0, PD3.1, FCP, SCP fast charge protocol), single module 8 channels

6. A single aging cabinet is configured with four bidirectional charging modules.

7. A single aging cabinet is equipped with 72 PFC switching power supplies, 36V/16A/600W, 3 inputs per product, and no charging parameters are collected

1, each channel is equipped with a charging port: AC input stable socket 1+ card socket 1 (internal parallel), DC input XT60+5.5*2.1+5.5*2.5+Type C+USB

2, each channel is configured with discharge port; The AC output port is the PIN end +50A Anderson terminal, the DC port

5.5*2.1+5.5*2.5+USB+Type-c+ fence terminal 2PIN (confirm according to customer requirements)

380V three-phase five-wire distribution; Based on the maximum power of the product
