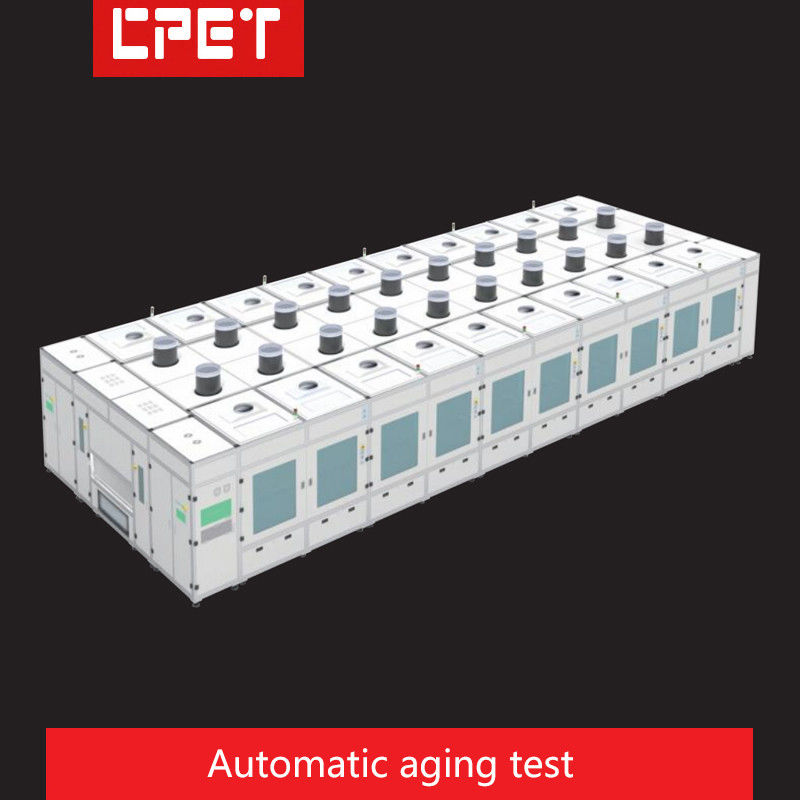

Automatic Aging Test Equipment For Photovoltaic Inverter Energy Storage Power Supply

Name: Automatic Aging Test Equipment For Photovoltaic Inverter Energy Storage Power Supply
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CPET-ME200006T
Price: 46800 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Certification: CE

Model Number: CPET-ME200006T

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 46800 Dollar

Packaging Details: Wooden box packaging

Delivery Time: 60day

Payment Terms: T/T

Supply Ability: 2 sets / month

Get Best Price

Product Details

Product Description

Product Details

Highlight:

Use:	Automatic Aging Test For Photo Storage Products

Use:	Automatic Aging Test For Photo Storage Products

Product Description

Automatic Aging Test Equipment For Photovoltaic Inverter Energy Storage Power Supply

Scope of application

Automatic Aging Test Equipment For Photovoltaic Inverter Energy Storage Power Supply 0

LED power supply, new energy OBC, PC power supply, server power supply, TV power

supply, photovoltaic inverter, high-power industrial power supply, etc

Outstanding functions

Automatic Aging Test Equipment For Photovoltaic Inverter Energy Storage Power Supply 0

1. Fully automatic operation

2. More stable and reliable

3. Automatic high pressure test, ATE test, burn-in test

4. Unit design, specific configurationcan according to customer needs

5. Save labor, reduce labor intensity

6. Integration testing no need to turn over, improve degree of automation

7. Multiple test station, save space, real-time monitoring, has the functions such as

abnormal alarm stop

8. Burn-in test interface independent, for your follow-up maintenance,keep quality and

save cost

9. Load recovery efficiency up to 80%6, reduce load electricity heat, reduce the electrical waste

10. Powerful versatility, DC products with or without wires can be applied, and the operation

is simple and convenient

11. Use a large number of robots or transfer machines to replace labor, with high efficiency,

increasing your company's production efficiency by up to 50%

Performance parameters

Automatic Aging Test Equipment For Photovoltaic Inverter Energy Storage Power Supply 0

Basic information Model	Equipment Model	CPET-ME200006T
	Units Per Hour(UPH)	120PCS/h
	Product Power	30KW/CH
	Equipment Size	L=12400mm,W=4900mm,H=3000mm
	Equipment Weight	Around 13000kg
Related Information of Burn-in line	Burn-in Room Capacity	60PCS
	Burn-in Time	2H
	Burn-in Ply Number	3 floors
	Transfer mode	Modular splicing manipulator handling
Burn-in Line Temperature Control system	Cooling Circulation Mode	Forced air cooling:fan+frequency convertwe+air duct
	Control Scope and Precision	The temperature control scope:adjustable from room temperature to 60°C.The control precision is ±5°C
	Temperature Rise Rate	Able to rise to more than 45°C in 20 minutes
Burn-in Line Electronic Control system	Product and Load Properties	Optional
	Load Properties	Optional
	Burn-in Voltage Input	Support up to 6 voltages
	Protection and Alarm	Control power supply independently and added with protection and equpment including overheating and overload protection,earth leakage circuit breaker,waring light,emergency switch,etc
	Hardware Demand Description	Independent computer host, display burn-instate, monitor output should be voltage, current,power and soon
	Software Monitor Demand	Compile different Burn-in programs according to different products, realize voltage switching, impact, switching cycle, current setting, temperature setting and other parameters
	Burn-in Management Demand	The OK and NG judgment monitoring interface can directly understand that the data can be saved according to the required data format (TXT, EXCEL), which is convenient for query and download
Test Station Related Information	Test Station Types	Install the product + electrified initial test + high voltage + ATE + Burn-in + ATE + take the product, automatic test Burn-in system, Unit combination system
	Test Mode	Optional
	Test Data Processing	Optional
	Test Instruments	Optional
	Connection Mode	Optional
Burn-in & Test Jig	Jig Size	W1000mmD1000mmH70
	Interface Mode	AC: Anderson terminal; DC: Anderson terminal
	The Commmon Usage	Shared by burn-in and test
	Weight	35KG
Main Electric Control System	Protection Equipment	Possessing independent and segmentation main switches.Having independent ground protection and electricity leakage protection devices
	Power Demands	According to the actual planning
	Air source requirements	0.5-0.8MPa
