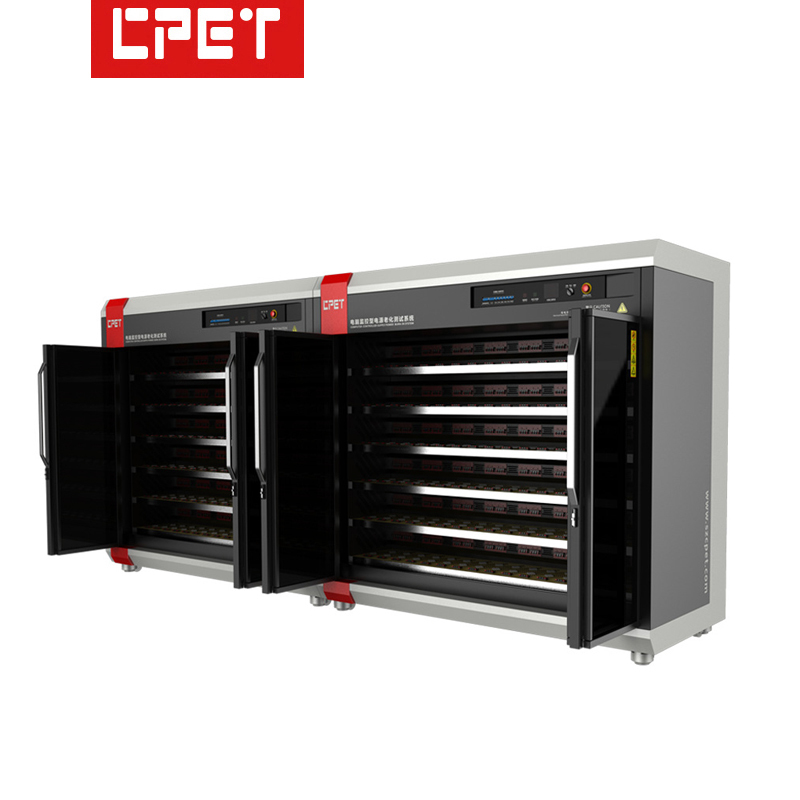

6-Layer Industrial Laser Power Supply Burn In Chamber 192pcs Capacity

Name: 6-Layer Industrial Laser Power Supply Burn In Chamber 192pcs Capacity
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-3023005
Price: 46500 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Certification: CE,ROHS

Model Number: CP-3023005

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: ¥ 46500 yuan

Packaging Details: Packed in wooden cases

Delivery Time: 40 work days

Payment Terms: T/T

Supply Ability: 30stes /month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                6-layer industrial laser power supply, power supply burn in chamber 192pcs, industrial burn in chamber with warranty


Guarantee Period:	1 Year	Input Voltage：:	AC380V±15%（V）
Material:	Cold-rolled Steel Plate	Color:	Black And Red
Number Of Car Levels:	6	Trolley Height:	270（mm）

Guarantee Period:	1 Year
Input Voltage：:	AC380V±15%（V）
Material:	Cold-rolled Steel Plate
Color:	Black And Red
Number Of Car Levels:	6
Trolley Height:	270（mm）

Product Description

Energy-saving Feedback Type High-power Industrial Laser Power Supply Aging Test Equipment

Product Specifications

Guarantee period	1 year
Input voltage	AC380V±15%（V）
Material	Cold-rolled steel plate
Color	Black and red
Number of car levels	6
Trolley height	270（mm）

Product Overview

The equipment features a vertical aging position design with 6 layers, each designed for 32-bit capacity. A single aging cabinet can simultaneously test up to 192 units.

Service Features

Free upgrade service
MES management system integration
APP application development
Barcode management system integration
Internet data sharing
Bilingual software support (Chinese/English)

Technical Parameters

Primary Specifications

Trolley size	L1000W1000H1900(mm)
Input voltage	AC380V±15%(V)
Frequency	50Hz
Input power	300W*192 bits /0.80=72KW
Material/color	Cold-rolled steel plate, black and red
Transformer	450kVA (Three-stage voltage: 110V/220V/260V)

Detailed Specifications

Trolley size	L2050W880H1900(mm)
Number of car levels	6
Trolley height	270(mm)
Single-channel parameter	Power ≤300W, voltage range: 3-420Vdc, current range: 0.5-15Adc
Number of channels	192 (supports parallel configuration)
Interface	Customizable input/output configurations
Communication method	RS485
Heat dissipation method	Top turbine exhaust fan with upper exhaust type
Interlayer insulation	Epoxy insulating board with heat dissipation holes
Structural design	Test area isolated from load area, closed product area

Key Features

Applicable for aging various power supplies including adapters, industrial power supplies, and LED drivers
Custom monitoring software with independent intellectual property rights
Programmable electronic load modules for precise parameter monitoring
Free software upgrades with powerful scalability
Programmable aging parameters, timing, and automatic voltage switching
Automatic power-off function for unattended operation
Computerized quality monitoring with centralized management
Comprehensive data storage and reporting with barcode scanning support
Enhanced communication reliability with photoelectric isolation converters
