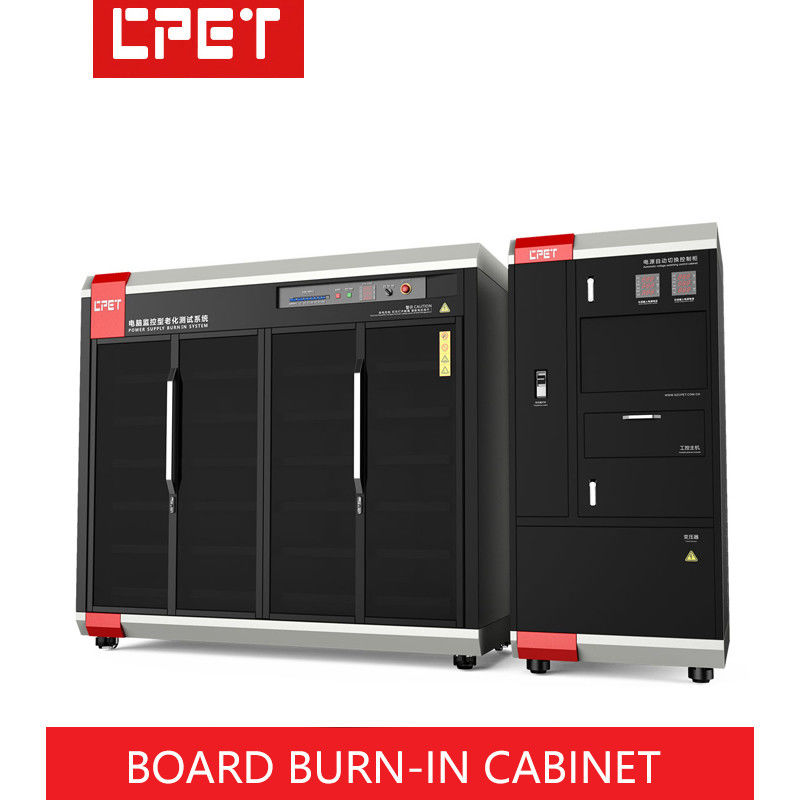

Energy Saving Burn In Cabinet For DC Main Control Board Industrial Motherboards

Name: Energy Saving Burn In Cabinet For DC Main Control Board Industrial Motherboards
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-DC02
Price: 8600 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Certification: CE,ROHS

Model Number: CP-DC02

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 8600dollars/set

Packaging Details: Wooden case packing

Delivery Time: 30 work days

Payment Terms: T/T

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                Energy Saving burn in cabinet, Industrial Motherboards burn in cabinet, Industrial Motherboards aging test chamber


Trolley Height:	175mm	Warranty Period:	1year
Package:	Wooden Box Packaging

Trolley Height:	175mm
Warranty Period:	1year
Package:	Wooden Box Packaging

Product Description

Energy-Saving Burn-In Cabinet For DC Main Control Board Industrial Motherboards

Outstanding functions

1. The software sets load parameters and monitors the voltage, current, and power

parameters in real time

2. Parallel channels can be used in CC load mode to meet product power expansion

3. Built-in automatic protection device for overtemperature and smoke alarm

4. Can edit switch timing, load transformation function

5. A variety of laminate structures are optional in the product area, which is more convenient

to operate for different products

Performance parameters

Burn-in cabinet structure and Burn-in quantity planning	Trolley size (mm)	L2050W1250H2050mm (size of a single Burn-in cabinet)
	Number of trolley layers	4 layers, product area depth 400mm, (6 Burn-in positions per layer)
	Trolley height	175mm
	Trolley structure material	2.0mm thick cold rolled sheet,
	Load area cooling method	Top turbine exhaust fan top row type (easy to control the ambient temperature)
	Layer insulation and anti-static method	Epoxy insulation board with heat dissipation holes on the surface
	Overall burn-in room structure	Adopt mobile Burn-in split cabinet; beautiful appearance and easy to move and combine
Introduction to energy recovery module configuration, power of the tested power supply and Burn-in quantity	Energy recovery module control mode	RS485 communication mode, upper computer uses RS232 communication mode
	DC power supply capability	10-100Vdc/1-30A/3kW (adjustable voltage and current)
	Electronic load module isolation mode	Electronic load module channel adopts photoelectric isolation (communication and power supply isolation)
	Electronic load carrying capacity	8 channels 1-400Vdc/10A/150W(support QC3.0/PD3.1),4 channels 3-0VDC/40A/500W
	Number of installed electronic loads	1. A single burn-in cabinet is configured with CP8104/48 sets; 2. A single burn-in cabinet is configured with CP8512/24 sets;
	Number of burn-in products in the entire cabinet	48 BMS controllers less than 3.2KW are aged in one cabinet
