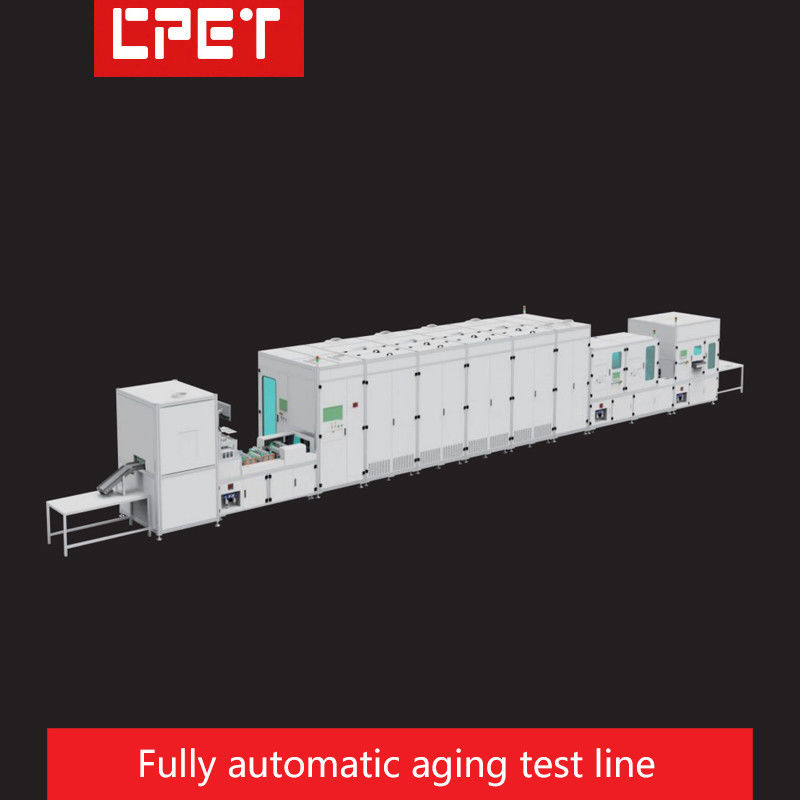

High-power Industrial Emergency Power Supply Charger Fully Automatic Aging Line

Name: High-power Industrial Emergency Power Supply Charger Fully Automatic Aging Line
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CPET-ME50640T
Price: 48000 USD
Availability: InStock

Product Details

Place of Origin: SHEN ZHEN

Brand Name: CPET

Certification: CE,ROHS

Model Number: CPET-ME50640T

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 48000

Packaging Details: Wooden box packaging

Delivery Time: 40 days

Payment Terms: T/T

Supply Ability: 2 sets /month

Get Best Price

Product Details

Product Description

Product Details

Highlight:

Average Output（UPH）:

1200PCS/h

Product Power:

100W/CH

Average Output（UPH）:	1200PCS/h
Product Power:	100W/CH

Product Description

High-power Industrial Emergency Power Supply Charger Fully Automatic Aging Line

Scope of application

High-power Industrial Emergency Power Supply Charger Fully Automatic Aging Line 0

Adapter power supply LED power supply, new energy OBC, PC power supply, server power

supply, TV power supply, photovoltaic inverter, high-power industrial power supply, etc

Outstanding functions

High-power Industrial Emergency Power Supply Charger Fully Automatic Aging Line 0

1. Fully automatic operation

2. More stable and reliable

3. Automatic high pressure test, ATE test, burn-in test

4. Save labor, reduce labor intensity

5. Integration testing no need to turn over, improve degree of automation

6. Multiple test station, save space, real-time monitoring, has the functions such as

abnormal alarm stop

7. Burn-in test interface independent, for your follow-up maintenance,keep quality and

save cost

8. Powerful versatility, DC products with or without wires can be applied, and the operation

is simple and convenient

Performance parameters

High-power Industrial Emergency Power Supply Charger Fully Automatic Aging Line 0

Basic information of the equipment	Equipment model	CPET-ME50640T
	Average output(UPH)	1200PCS/h
	Product power	100W/CH
	Equipment size	L=16500mm,W=2200mm,H=2600mm
	Equipment weight	5900KG
Information related to aging lines	Capacity of the aging room	2880PCS
	Aging time	2H
	Number of aging layers	10
	Transplanting method	Modular splicing mechanical hand handling
Aging line temperature control system	Cooling circulation mode	Air cooling: fan + frequency converter + air duct
	Control range and accuracy	Temperature control range: Adjustable from room temperature to 60℃, with a control accuracy of ±5℃
	Heating rate	It can rise above 45°C within 20 minutes
Electrical control system for aging lines	Product and load characteristics	Optional
	Load characteristics	Optional
	Input aging voltage	It can support up to six voltages at most
	Protection and alarm	The independent control power supply is equipped with fuses, overheat and overload protection switches, leakage protection switches, warning lights, emergency switches and other devices
	Description of hardware requirements	Independent computer host, display aging status, monitor output voltage, current and power, etc
	Software monitoring requirements	Different aging programs are written for different products to achieve parameters such as voltage switching, impact, switch cycles, current setting, and temperature setting
	Aging management requirements	The OK and NG judgment monitoring interface directly shows that the data can be saved in the required data format (TXT, EXCEL), which is convenient for query and download
Information related to the test station	Test procedure	Product loading + initial power-on test + high voltage +ATE+ aging +ATE+ product retrieval, automatic aging test system, unit combination system
	Test method	Optional
	Test data processing	Optional
	Testing instrument	Optional
	Connection method	Optional
Aging & Testing fixtures	Fixture size	W280mmD600mmH110
	Interface mode	AC: Universal socket DC:USB or regular DC female socket or custom
	universality	Shared aging test
	Weight	1.5KG
Main electrical control system	Protective device	It is equipped with separate and segmented main switches, as well as independent grounding protection and leakage protection devices
	Electricity demand	According to the actual plan
	Gas source demand	0.5-0.8MPa
