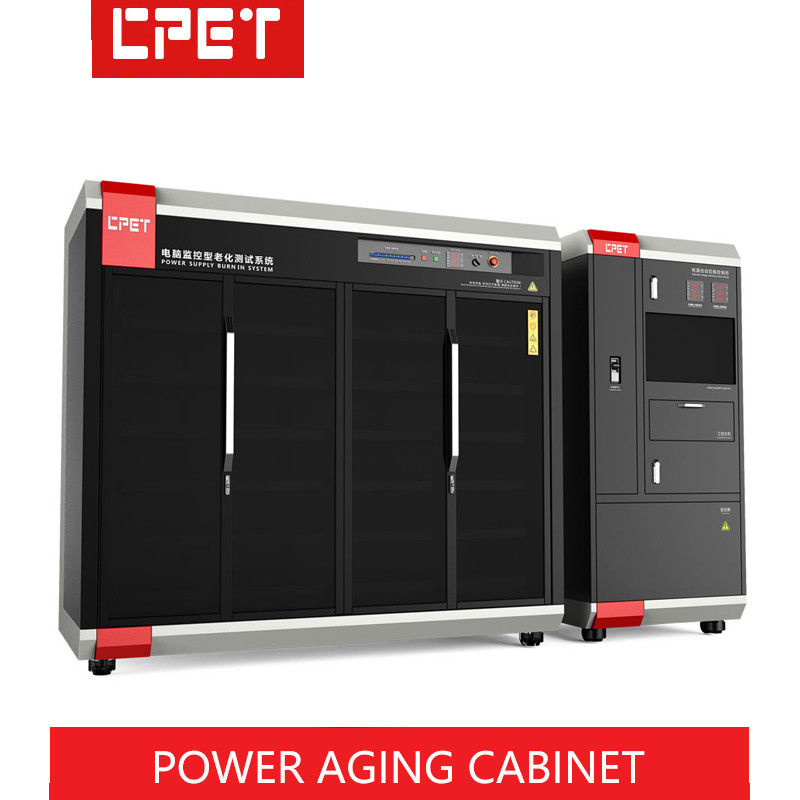

Energy Saving Feedback High Power Burn In Chamber Communication Power Supplies

Name: Energy Saving Feedback High Power Burn In Chamber Communication Power Supplies
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-3034
Price: 8400 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-3034

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 8400dollars/set

Packaging Details: Wooden case packing

Delivery Time: 35 work days

Payment Terms: D/A

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                High Power Burn In Chamber, Energy Saving Feedback High Power Burn In Chamber, Communication Power aging test chamber


Power Of Single Channel:	1600W/CH	Quantity Of Load Channels:	36CH
Warranty Period:	1 Year Free Warranty

Power Of Single Channel:	1600W/CH
Quantity Of Load Channels:	36CH
Warranty Period:	1 Year Free Warranty

Product Description

Communication Power Supplies Energy Saving Feedback High Power Burn In Chamber

Scope of application

Suitable for aging of adapters, industrial power supplies, LED power supplies, server power supplies, communication power supplies, SSN, NPS power supplies, etc.

Outstanding functions

1. Set the load parameters and monitor the voltage, current, power and other parameters in real time.

2. CC, CV, CR load mode.

3. In CC load mode, channels can be connected in parallel to meet the product power expansion.

4. Cooperate with monitoring software of power burn-in, for application 8. Interface of multiple DC adapter plates can meet the demands for different output interface products

5. Be of optional multiple laminate structures at products zone and meet the requirements for more convenient operation of different products

6. Energy saving conversion efficiency above 85%.

Performance parameters

Model	CP-3033	CP-3034	CP-3035
Power of single channel	400W/CH	1600W/CH	2400W/CH
Quantity of load channels	96CH	36CH	36CH
Scope of load voltage	3-60V	3-60V	10-100V
Scope of load current	0.5-40A/CH	0.5-120A/CH	0.5-80A/CH
Load precision	±(2%+0.5%FS)
Load Model	Energy saving load module
Load Mode	CC+CV+CR Mode
Number for plies of product zone	6
Height for plies of product zone(mm)	170
Width of products zone(mm)	340
Temperature control of products zone	Temperature control tyep of products zone: normal temperature-60°C
Structure material of trolley	Elaborately processed and produced with cold-rolled sheet
Mode of main control	Monitoring software for burn-in of computermonitoring type power
Input mode of UUT	Multi-purpose socket/speaker wire clip/custom design
Interface mode of UUT	Connecting fixture boards(with various specifications)for first choice/custom design
External dimension	205010001900/custom design
