Home > products > Electronic Load Solutions > 600W Programmable Electronic Loads For High Power Energy Saving Feedback Test

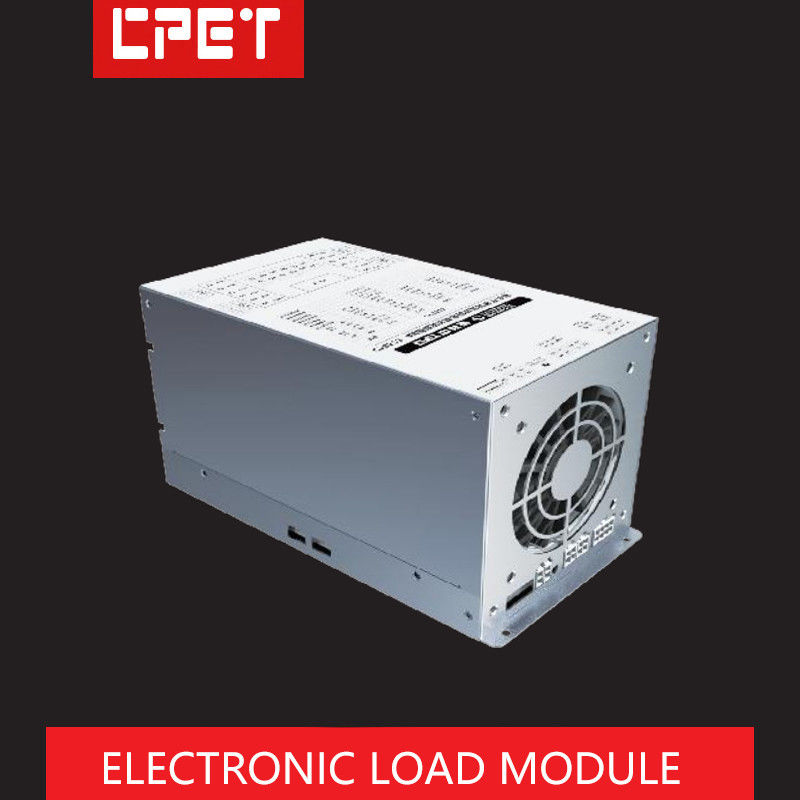

600W Programmable Electronic Loads For High Power Energy Saving Feedback Test

Name: 600W Programmable Electronic Loads For High Power Energy Saving Feedback Test
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: 8523
Price: 850 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: 8523

Payment & Shipping Terms

Minimum Order Quantity: 5sets

Price: 850dollars/set

Packaging Details: Wooden case packing

Delivery Time: 10 work days

Payment Terms: D/A, T/T

Supply Ability: 500sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                600W Electronic Load Solutions, Feedback Test Electronic Load Solutions, 600W Electronic Load Solutions


Channel Number:	4CH	Single Channel Power:	600W
Pull Mode:	CC/CV/CR/CP

Channel Number:	4CH
Single Channel Power:	600W
Pull Mode:	CC/CV/CR/CP

Product Description

Programmable Electronic Loads For High-Power Energy-Saving Feedback Test

Scope of application

Apply to the burn-in testing of Adapter, Industrial power supply, Switching power supply,LED driver and other kind of power supply

Apply to aging vehicles ,burn-in cabinet,burn-in room,automatic burn-in testing system

Battery discharge burn-in testing

Outstanding functions

1. Correction of power factor

2. Electrical isolation of input and output power

3. 180-264VAC wide voltage output

4. Remote acquirement of voltage with high measurement precision

5. High-frequency soft switching technology, with small size, high efficiency

6. Safety requirements designed to meet the safety standards of information technology equipment

7. With the functions of output short circuit protection, over-current protection, over-voltage protection, islanding protection,

input over-voltage/under-voltage protection

Performance parameters

Model	CP8514	CP8523	CP8524	CP8525	CP8526
Input voltage range	8~420Vdc	10~420Vdc	8~600Vdc	8~420Vdc	3~60Vdc
Input current range	0.2~12Adc	0.5~12.5Adc	0.5~12.5Adc	0.2~12Adc	0.5~20Adc
Channel number	6CH	4CH	4CH	8CH	8CH
Single channel power	550W	600W	600W	250W	250W
Pull mode	CC,CV,LED,CR,CP	CC,CV,LED,CR,CP	CC,CV,LED,CR,CP	CC,CV,LED,CR,CP	CC,CV,LED,CR,CP
Votage comtrol precision	±2%+0.5%FS	±2%+0.5%FS	±2%+0.5%FS	±2%+0.5%FS	±1%+0.2%FS
Voltage accuoacy	±1%+0.5%FS	±1%+0.5%FS	±1%+0.5%FS	±1%+0.5%FS	±1%+0.2%FS
Current control accuracy	±3%+0.5%FS	±3%+0.5%FS	±3%+0.5%FS	±3%+0.5%FS	±1%+0.2%FS
urrent readback accuracy	±1%+0.5%FS	±1%+0.5%FS	±1%+0.5%FS	±1%+0.5%FS	±1%+0.2%FS
Output voltage/ current	72V/42A	380V/6A	380V/6A	380V/2A	380V/2A
Communication mode	RS-485	RS-485	RS-485	RS-485	RS-485
Paired inverter	CP5309	CP5312	CP5312	CP5312	CP5312
