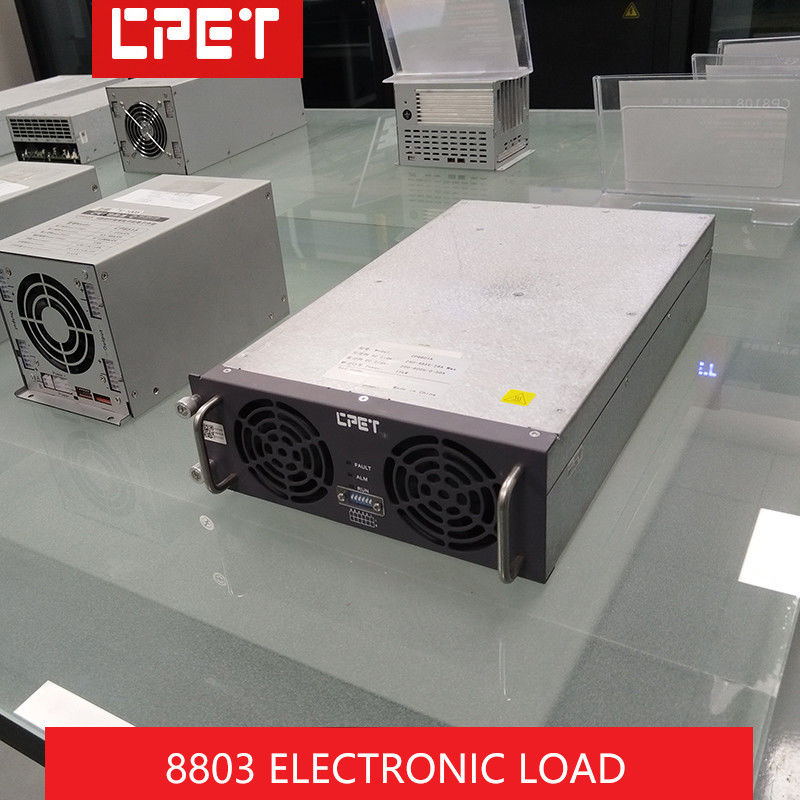

7kw Programmable Energy Saving AC-DC Bidirectional Source High Power Electronic Load

Name: 7kw Programmable Energy Saving AC-DC Bidirectional Source High Power Electronic Load
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: 8803
Price: 380 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: 8803

Payment & Shipping Terms

Minimum Order Quantity: 10sets

Price: 380dollars/set

Packaging Details: Wooden case packing

Delivery Time: 5-8 work days

Payment Terms: D/A, T/T

Supply Ability: 1000sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                7kw Electronic Load Solutions, Energy Saving  Electronic Load Solutions, High Power Electronic Load Solutions


Warranty:	12 Months	Single-channel Power:	7KW
Pull Mode:	CC、CV

Warranty:	12 Months
Single-channel Power:	7KW
Pull Mode:	CC、CV

Product Description

7kw Programmable Energy-Saving AC-DC Bidirectional Source High-Power Electronic Load

Scope of application

Independent Burn-in trolley, Burn-in rack, Burn-in room

Battery charge and discharge test

Outstanding functions

1. AC-DC two-way conversion, it can be used as a power supply or as a feedback load, one machine for multiple purposes

2. Soft switching technology, high conversion efficiency, the highest efficiency reaches 95%

3. Integrated PFC function, high power factor, low THD, grid-friendly equipment

4. Complete protection functions, such as over current, over voltage, overload, over temperature, under voltage, short circuit, fan failure, etc.

5. Fully isolated RS485 communication, CAN communication

6. Fully digital control, digital monitoring electronic load

Performance parameters

Model	CP8803
Dc side voltage range	100~750V
Dc current range	0~25A
Channel number	1CH
Single channel power	7KW
Pull mode	CC,CV
Votage comtrol precision	±2%+0.5%FS
Voltage accuoacy	±1%+0.5%FS
Current control accuracy	±5%+0.5%FS
Current readback accuracy	±1%+0.5%FS
Type of load	Single phase AC grid connection
Ac side voltage range	180~240VAC
Rated AC side voltage	220VAC 50Hz
Ac grid-connected current	32A Max
Tracking frequency range	47~63Hz
