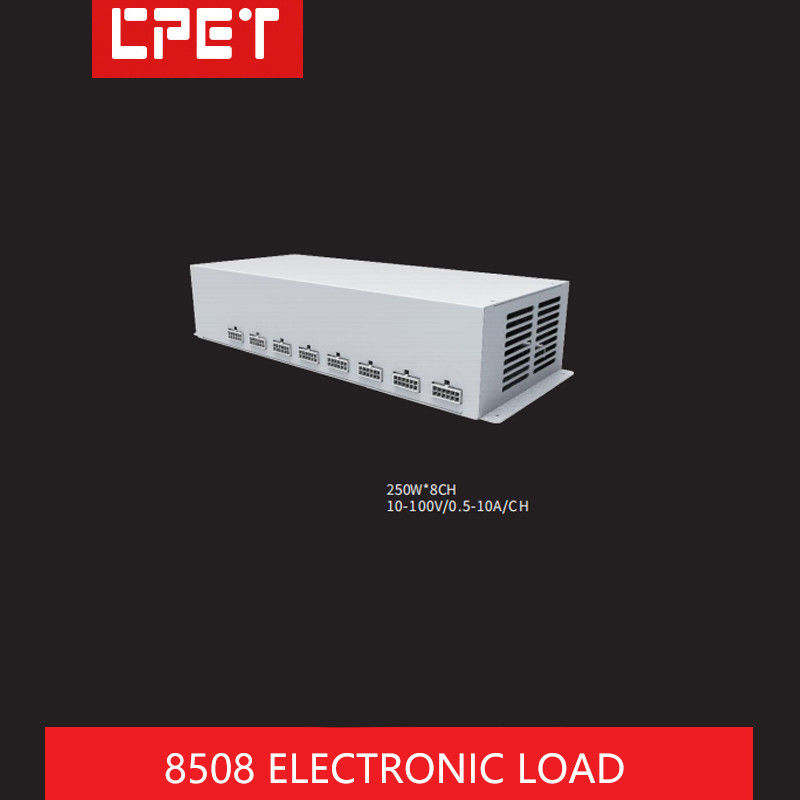

250W 8CH Programmable DC Electronic Load For Battery Discharge Aging Test

Name: 250W 8CH Programmable DC Electronic Load For Battery Discharge Aging Test
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: 8508
Price: 250 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Certification: CE,ROHS

Model Number: 8508

Payment & Shipping Terms

Minimum Order Quantity: 10sets

Price: 250dollars/set

Packaging Details: Wooden case packing

Delivery Time: 5-8 work days

Payment Terms: D/A,T/T

Supply Ability: 1000sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                250W Electronic Load Solutions, 8CH Electronic Load Solutions, Battery Discharge Electronic Load Solutions


Warranty:	One Year	Input Voltage Range:	3~60Vdc
Single Channel Power:	250W

Warranty:	One Year
Input Voltage Range:	3~60Vdc
Single Channel Power:	250W

Product Description

250W8CH Programmable DC Electronic Load For Battery Discharge Aging Test

Scope of application

Apply to the burn-in testing of Adapter, Industrial power supply, Switching power supply,

LED driver and other kind of power supply

Apply to aging vehicles ,burn-in cabinet,burn-in room,automatic burn-in testing system

Battery discharge burn-in testing

Outstanding functions

1. Channel take independent control

2. Efficiency is more than 85%

3. Output take EMC progress

Performance parameters

Model	CP8508
Input voltage range	3~60Vdc
Input current range	0.5~20Adc
Channel number	8CH
Single channel power	250W
Pull mode	CC/CV/CR/CP
Votage comtrol precision	±2%+0.5%FS
Voltage accuoacy	±1%+0.5%FS
Current control accuracy	±2%+0.5%FS
urrent readback accuracy	±1%+0.5%FS
Output voltage/ current	72V/28A
Communication mode	RS-485
Paired inverter	CP5309
