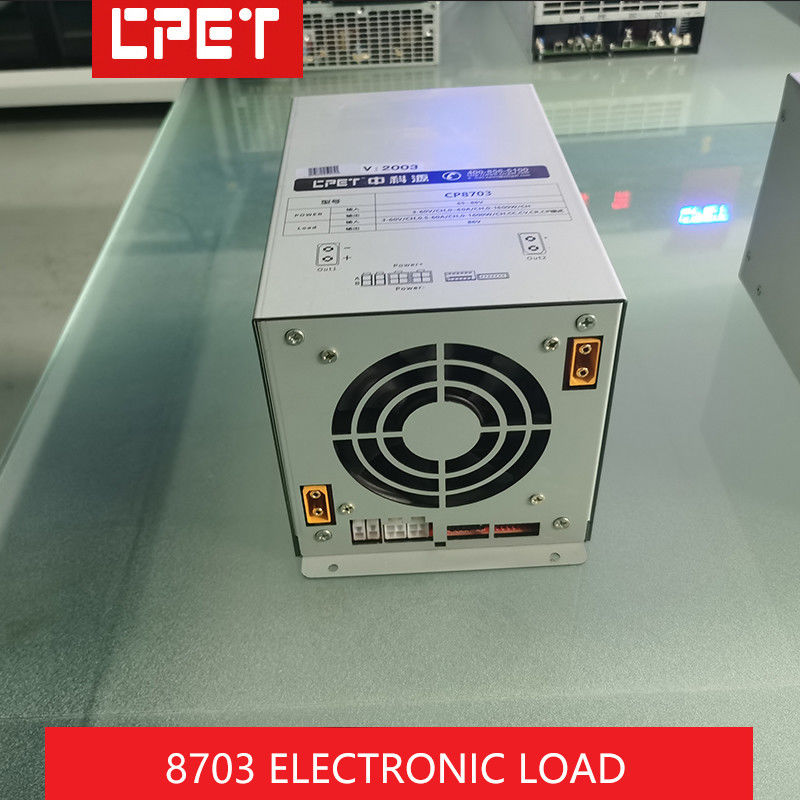

High Power Programmable DC-DC Source Electronic Load Battery Inspection Test

Name: High Power Programmable DC-DC Source Electronic Load Battery Inspection Test
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: 8703
Price: 960 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: 8703

Payment & Shipping Terms

Minimum Order Quantity: 5sets

Price: 960dollars/set

Packaging Details: Wooden case packing

Delivery Time: 10 work days

Payment Terms: D/A, T/T

Supply Ability: 400sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                1600w Battery Inspection Test, Electronic Load Battery Inspection Test, Battery Inspection Test


Channel Number:	4CH	Single Channel Power:	1600w
Port 1 Input And Output Voltage Range:	3~60Vdc

Channel Number:	4CH
Single Channel Power:	1600w
Port 1 Input And Output Voltage Range:	3~60Vdc

Product Description

High Power Programmable DC-DC Source Electronic Load Battery Inspection Test

Scope of application

DC-DC power Burn-in test

Battery charging and discharging Burn-in test

Battery inspection test

Outstanding functions

1. Green, environmentally friendly, energy-saving; one thing is multi-purpose, two-way conversion, saving materials, testing multi ple products at the same time, improving production efficiency; multiple battery packs are burn-in at the same time, energy is directly converted into each other in the battery pack, the efficiency is very high, the whole machine The highest efficiency is >93%

2. Wide range of voltage and current, RS485 or CAN communication program control, users can realize flexible control of charging

and discharging according to their own battery characteristics

3. Support charging CC (constant current), CV (constant voltage), CP (constant power), discharging CC (constant current), CR (con

stant resistance), as the source load can also realize the LED working mode

4. 24-bit AD industrial-grade high-precision sampling and DSP chip fast and high-precision control

5. With over temperature protection, over current protection, over voltage protection, over power protection

6. Full digital control, digital monitoring source load

7. Rugged shell structure and excellent heat dissipation system 8. High quality and cost-effective

Performance parameters

Model	CP8703	CP8704	CP2127
Port 1 Input and output voltage range	3~60Vdc	50~1000V	3~20V
Port 1 Input/output current range	0.1~60Adc	0.1~30Adc	0.1~5Adc
Port 2 Input and output voltage range	72Vdc	400Vdc	24V
Port 2 Input and output current ranges	22A Max	16A Max	32A Max
Voltage control accuracy	±2%+2‰FS	±2%+2‰FS	±1%+2‰FS
Voltage read back accuracy	±2%+2‰FS	±2%+2‰FS	±1%+2‰FS
Current control accuracy	±2%+2‰FS	±2%+2‰FS	±1%+2‰FS
Current readback accuracy	±2%+2‰FS	±2%+2‰FS	±1%+2‰FS
Number of channels	4	1	8
Single-channel power	1600W	6000W	100w
Pull-load mode	CC,CV,LED,CR,CP	CC,CV,LED,CR,CP	CC,CV,LED,CR,CP
